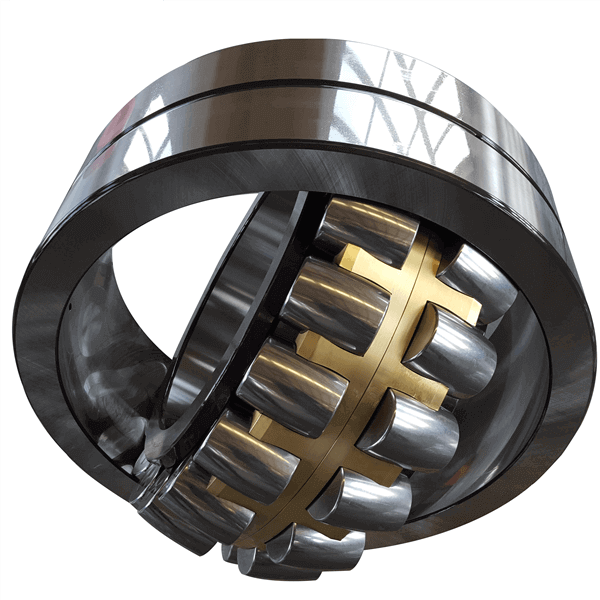

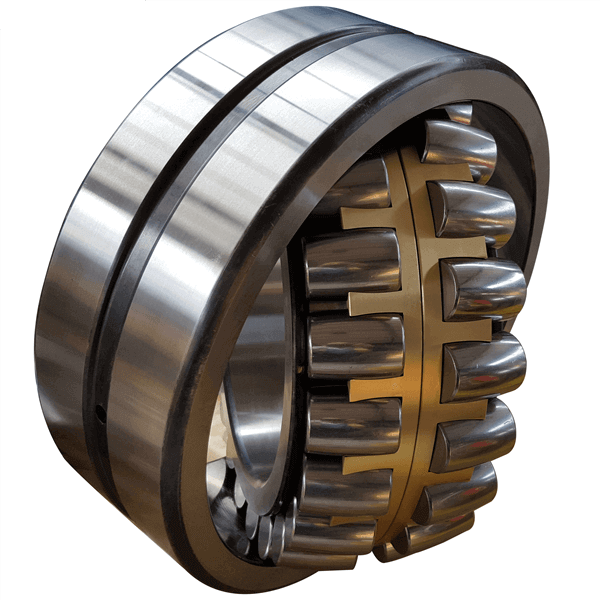

22322 e bearing assemble detail

22322 e with two rows of rollers, mainly bear radial load, but also can bear any direction of the axial load.It has high radial load capacity, especially suitable for heavy load or vibration load, but cannot bear pure axial load.The raceway of the outer ring of 22322 e bearing is spherical, so its centering performance is good, which can compensate the error of coaxiality.
22322 e bearing ID is 110mm,OD is 240mm,thickness is 80mm,unit weight is 18kgs,Jinan Maolei bearing Co.,Ltd is 22322 e shperical roller bearing in china mainland,our 22322 e bearing is high quality and low price.
22322 bearing install:
22322 e with a drum roller is arranged between an inner ring with two raceway and an outer ring with a spherical raceway.The curvature center of the outer ring raceway surface is consistent with the bearing center, so it has the same centering function as the automatic centering ball bearing.When the shaft and housing appear to bend, the load and axial load in two directions can be automatically adjusted.Radial load capacity is large, suitable for heavy load, impact load.The inner diameter of the inner ring is the bearing of taper hole, which can be installed directly.Or install it on the cylindrical shaft by using a clamping sleeve and disassembly cylinder.The cage is made of steel plate stamping cage, polyamide forming cage and copper alloy.
For 22322 e, the use of an intermediate mounting ring prevents the outer ring from tilting and rotating when the shaft bearing is loaded into the box shaft hole.It should be remembered that some sizes of self-aligning ball bearings have balls protruding from the side of the bearing, so the middle mounting ring should be recessed to prevent ball damage.A large number of bearings are generally installed by mechanical or hydraulic pressure method.
If you need 22322 e bearing or need any other bearings, please also contact me!
