Double row angular contact ball bearing 3003 2rs details

Double row angular contact ball bearing 3003 2rs can withstand larger radial load and axial joint load and torque load, limit the axial displacement of the two aspects. Mainly used for limiting the axial displacement of the shaft and the shell.

Double row angular contact ball bearing 3003 2rs inner and outer ring of the tilt between the limited, allowing the tilt angle depends on the internal clearance of the bearing, bearing size, internal design and role in bearing the force and torque, and the maximum allowable inclination angle should ensure that the bearing will not produce high additional stress.

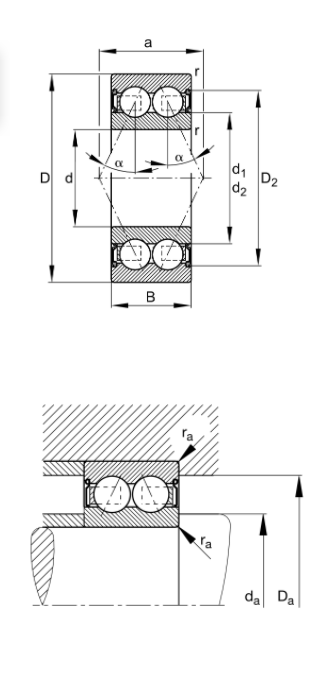

Double row angular contact ball bearing 3003 2rs details

	d	17 mm
	D	35 mm
	B	14 mm
	rmin	0.3 mm
	D2	29.8 mm
	d2	21 mm
	a	17.1 mm
	α	25 °
	da min	19 mm
	Da max	33 mm
	ra max	0.3 mm
	Weight	0.055 kg

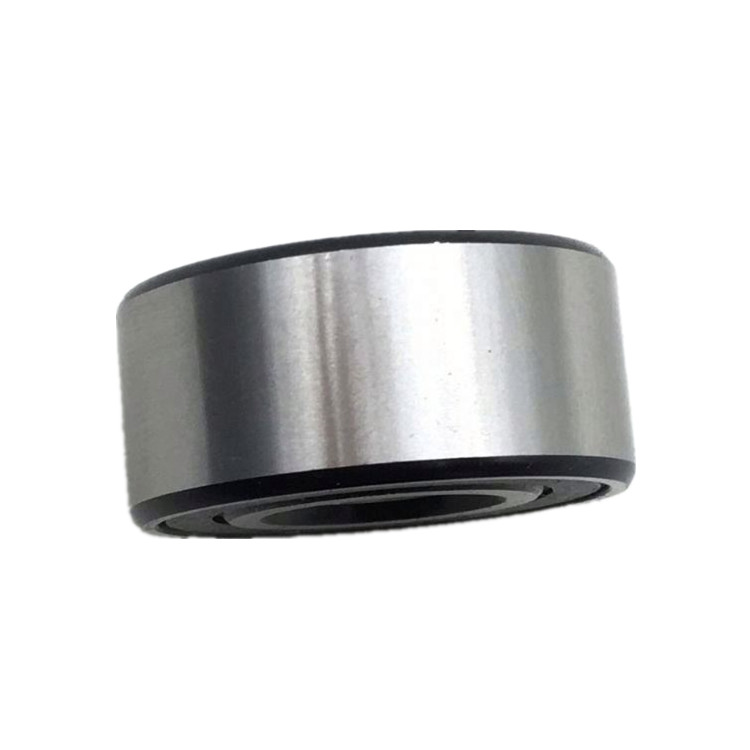

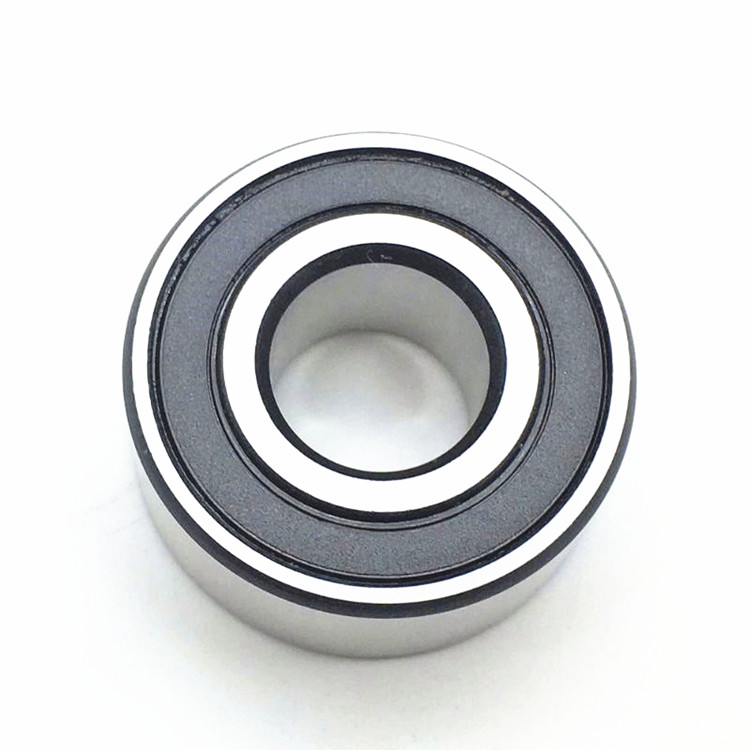

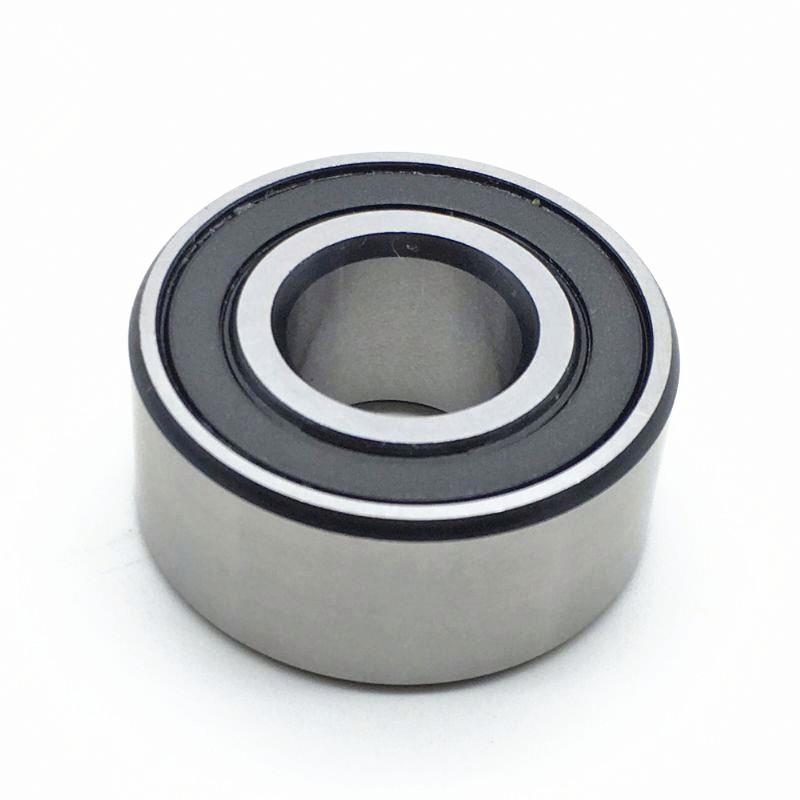

Double row angular contact ball bearing 3003 2rs picture:

Double row angular contact ball bearing 3003 2rs application:

Widely used in mechanical industry,like in various machinery such as metallurgic machinery,mining machinery,paper making machinery,exile machinery,etc.
