Features of 32009 bearing design
Usable in case of high radial and axial loads in one direction. Axial loads in both directions are also possible in case of the installation in pairs. Separable. Excellent property of locating bearing in one direction.
Material description of 32009 bearing
32009 bearing made of rolling bearing steelare economical, withstand extremely high load-ratings and are suitable for temperatures from circa -20°C up to +120°C, in case of plastic seals up to +100°C. The rolling bearing steel is wear-resistant,shock-resistant, conductive and magnetic
32009 bearing is separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage).The non-separable inner ring and roller 32009 bearing assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position of the cone relative to the cup.Metric 32009 bearing follow the designation system defined by ISO 355.

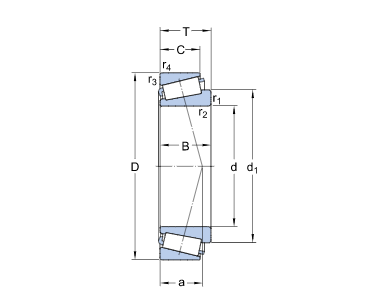

32009 bearing details:
d | 45 mm | |
---|---|---|
D | 75 mm | |
T | 20 mm | |
d1 | ≈ 60.73 mm | |
B | 20 mm | |
C | 15.5 mm | |
r1,2 | min. 1 mm | |
r3,4 | min. 1 mm | |
a |
16.289 mm
|
|

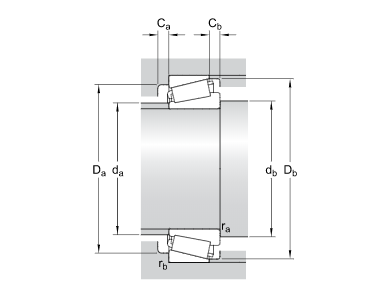

da |
max. 52 mm
|
|
db |
min. 52.5 mm
|
|
Da |
min. 67 mm
|
|
Da |
max. 68.5 mm
|
|
Db |
min. 72 mm
|
|
Ca |
min. 4 mm
|
|
Cb |
min. 4.5 mm
|
|
ra |
max. 1 mm
|
|
rb |
max. 1 mm
|
Applicable industries of 32009 bearing are: plotters, industrial chillers XY-LS-10KW, vertical machining centers, bipolar turbine reducer RV050030, large straw chucking machines, straw chucking machines, aeration devices, Korean hydraulic parts, booms, wipers Window machine, low temperature crusher, etc.
