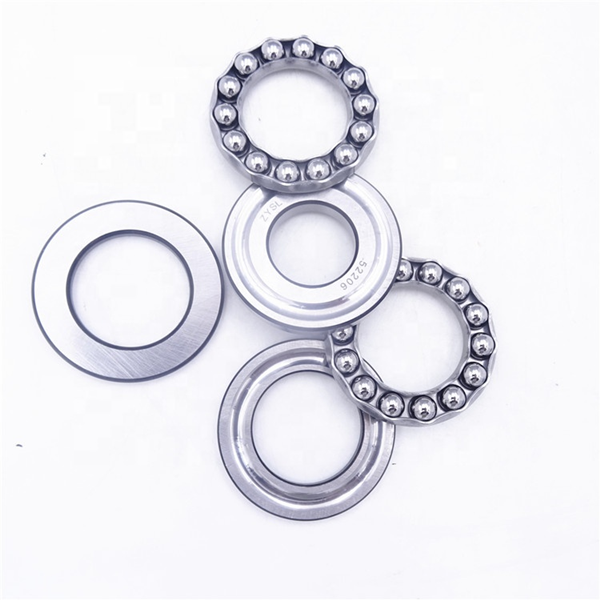

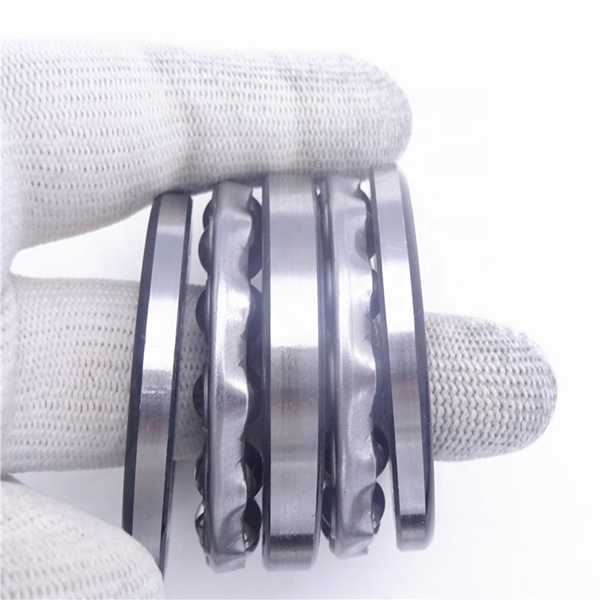

52206 bearing consists of three parts: seat ring, shaft ring and steel ball cage assembly. Shaft washer matched with shaft, seat washer matched with housing.This bearing can withstand axial loads, but not radial loads.
According to the force, 52206 bearing is divided into one-way thrust ball bearings and two-way thrust ball bearings. One-way thrust ball bearing can bear one-way axial load. Two-way thrust ball bearing can bear two-way axial load, in which the shaft ring is matched with the shaft. Bearings with a spherical mounting surface of the seat ring have self-aligning performance and can reduce the influence of mounting errors. Thrust ball bearings cannot bear radial loads and have a low limit speed.
The one-way thrust ball bearing can only bear the load in one direction, if it bears the load in two directions, the two-way thrust ball bearing must be selected. Thrust ball bearings must have a minimum load or preload applied.
52206 bearing application:
only suitable for parts that bear axial load on one side and have low speed, such as crane hooks, vertical water pumps, vertical centrifuges, jacks, low-speed reducers, etc. The shaft washer, seat washer and rolling element of the bearing are separated and can be assembled and disassembled separately.
1. There are two types of one-way and two-way
2. In order to tolerate installation errors, whether it is one-way or two-way, spherical self-aligning spherical seat cushion type or spherical seat ring type can be selected.
3. High-quality steel - ultra-clean steel for extended bearing life
4. Advanced Grease Technology - Extends grease life and improves bearing performance
5. High-grade steel ball - quiet and smooth at high speed
6. Using the optional ferrule, installation error can be tolerated
Therefore, we should choose according to the actual situation in the selection process.It should be noted that the accuracy of bearings is not as we think, the higher the accuracy, the better.
If you need 52206 bearing or need any other bearings, please feel free to contact me,we will offer you best quality bearings!
Contact: Leon
Email: nsk@zyslbearing.com
