6001 bearing dimension parameter detail

6001 bearing dimension parameter

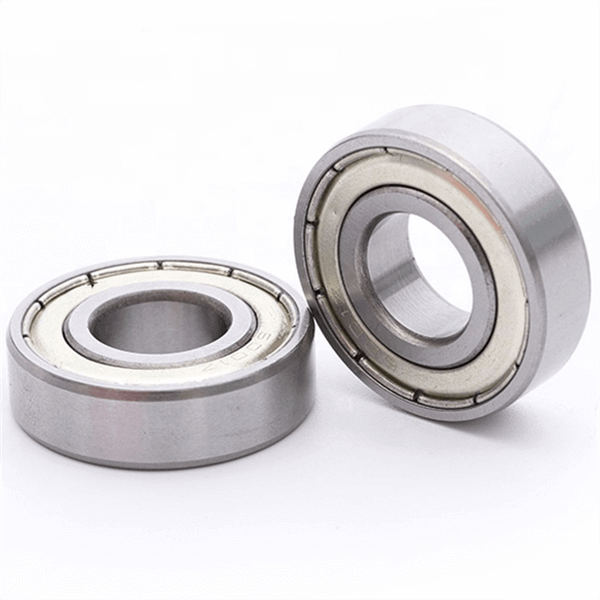

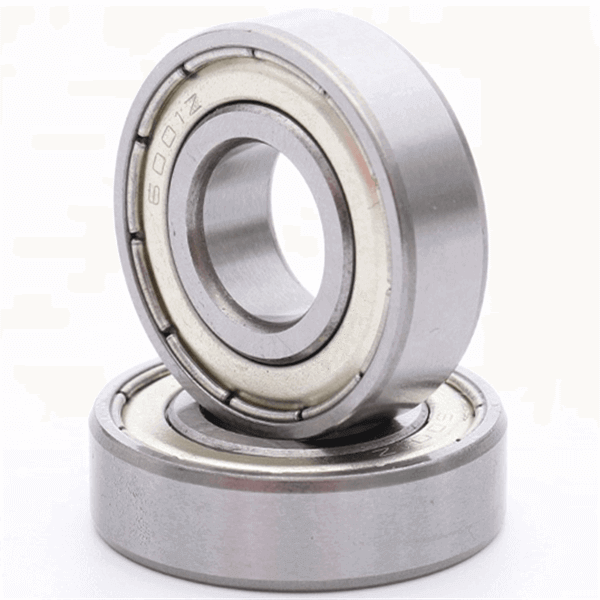

Bearing type:6001 bearing
Bearing series: deep groove ball bearing
Bearing brand: LLH bearing
Inside diameter: 12 mm
Outer diameter: 28 mm
Thickness: 8 mm
Rated dynamic load (N) : 5100
Cor rated static load (N) : 2370
Rated dynamic load (Kg) : 520
Cor rated static load (Kg) : 241
6001 bearing for railway rolling stock axles, printing machinery, agriculture, chemical industry, mechanical equipment, home appliances, extruders, forming machines, industrial supplies, printing equipment, generators, internal combustion engines, gas turbines, machine tool spindle, construction machinery.

Ball bearings 6001 bearing are mainly composed of four basic components: a ball, an inner ring, a outer ring, and a cage or retainer.Ball bearings for general industrial use meet AISI 52100 and are usually made of high-chromium steel with Rockwell C-scale hardness of about 61-65.The hardness of the retainer is lower than that of the ball and ring, and its materials are either metal (such as: medium carbon steel, aluminum alloy) or non-metal (such as: ferro, PTEF, polymer materials).
The advantages for 6001 bearing:

(1) In general working conditions, the friction coefficient of rolling bearing 6001 bearing is small and will not change with the change of friction coefficient, so it is relatively stable;Small starting and running torque, small power loss, high efficiency.
(2) The radial clearance of rolling bearing 6001 bearing is small, and can be eliminated by means of axial pretightening, so the operation accuracy is high.
(3) Small axial width of rolling bearing, some bearing both radial and axial composite load, compact structure, simple combination.
(4) Rolling bearing is a standardized component with high degree of standardization and can be produced in batches, so the cost is low.
If you need 6001 bearing or need any other bearings, please also contact me!
