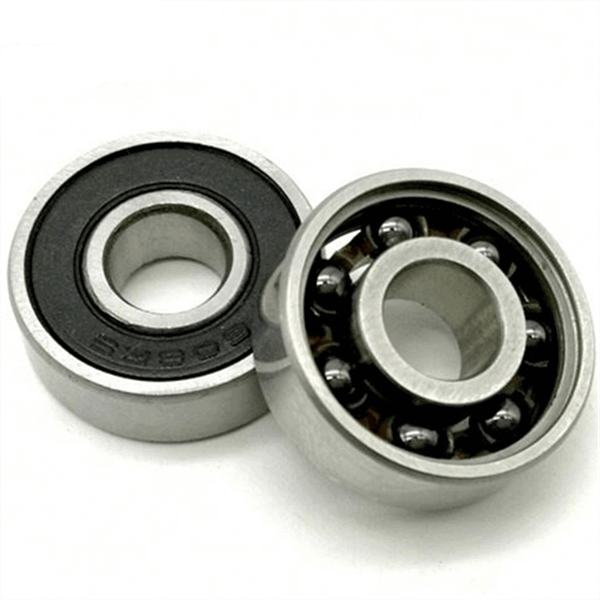

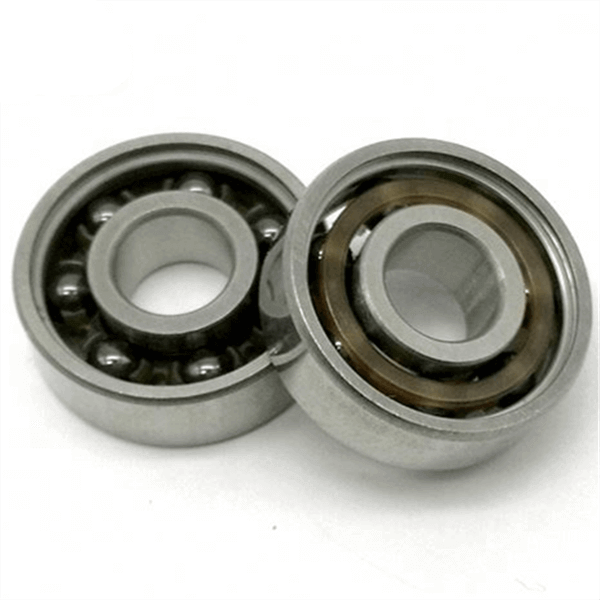

6200 bearing dimensions is 10*30*9mm,bearing inner ring is 10mm,outer ting is 30mm and thickness size is 9mm.
6200 bearing dimensions bearing design features:
1) Clearly mark the material grades and standards of rings, retainers, steel balls, rivets, sealing rings, frames, grease and nail screws.
2) The technical requirements of each part drawing should be clearly marked for 6200 bearing dimensions, and general technical requirements such as "dimensional accuracy meets current relevant standards" and "heat treatment process and hardness meet current relevant standards" should not be marked on the drawing.
3) Implement the principle of generalizing the current standard bearing structural parameters.
4) The design principle of 6200 bearing dimensions series, try to achieve the low-cost production principle of cage nesting, ring nesting, forging blank core reuse, etc.; The corresponding size table and cage bushing table are given.
5) The curvature coefficients of groove fi and Fe are slightly smaller than those of standard 6200 bearing dimensions bearings.
6) All surfaces and transition surfaces shall follow the smooth transition principle, and all surfaces shall not be allowed to have sharp angles, burrs, scratches and pits, so as to facilitate rust prevention.
The research on the rated load and life of stainless steel 6200 bearing dimensions bearings is rarely reported at home and abroad. It is generally believed that if the hardness of heat treatment is above HRe60, its rated load capacity should be equivalent to that of Grl5 steel 6200 bearing bearings.
However, because 9Cr18 contains complex carbides (Fe, Cr) and C, and a large number of eutectic carbides exist, the average size diameter of carbide particles in its structure is significantly larger than that of GCrl5 steel (about lO times that of bearing steel).
If you need 6200 bearing dimensions detail or need any other bearings, please feel free to contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
