6806 bearing is the most commonly used rolling bearing.Its structure is simple, it consists of inner and outer rings with deep symmetrical ball race, separator and complement of balls, and it can be easy to operate.It is mainly used for standing the radial load. But when the radial play is increasing, it has the performance of angular contact bearing assembly. In that case, it may simultaneously stand the radial loads and the axial loads.
6806 bearing size:
d | 30mm | |
---|---|---|
D | 42mm | |
B | 7mm | |
d1 | ≈ 33.7 mm | |
D2 | ≈ 39.4 mm | |
r1,2 |
min. 0.6 mm
|
|
da | min. 32 mm | |
da | max. 33.6 mm | |
Da | max. 40 mm | |
ra |
max. 0.3 mm
|
6806 bearing picture:

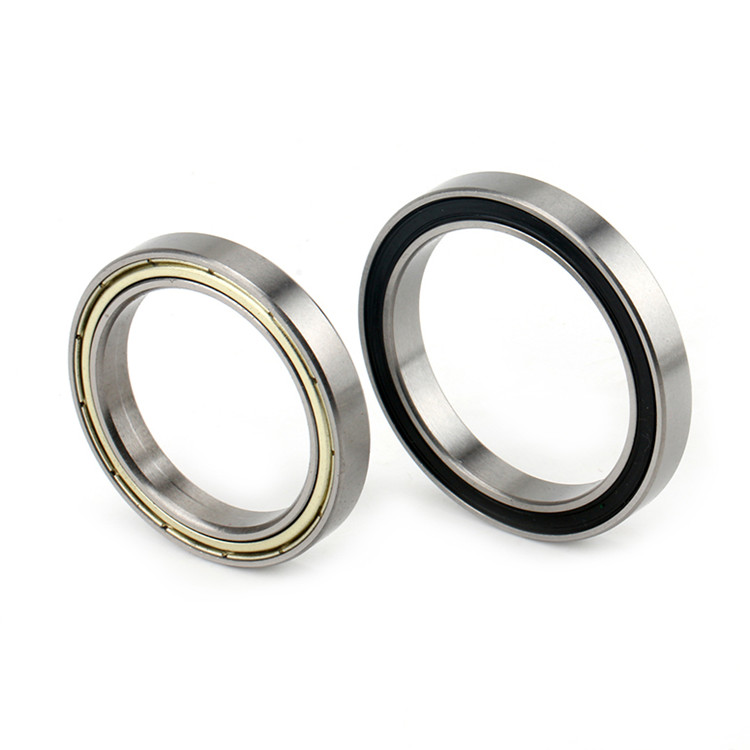

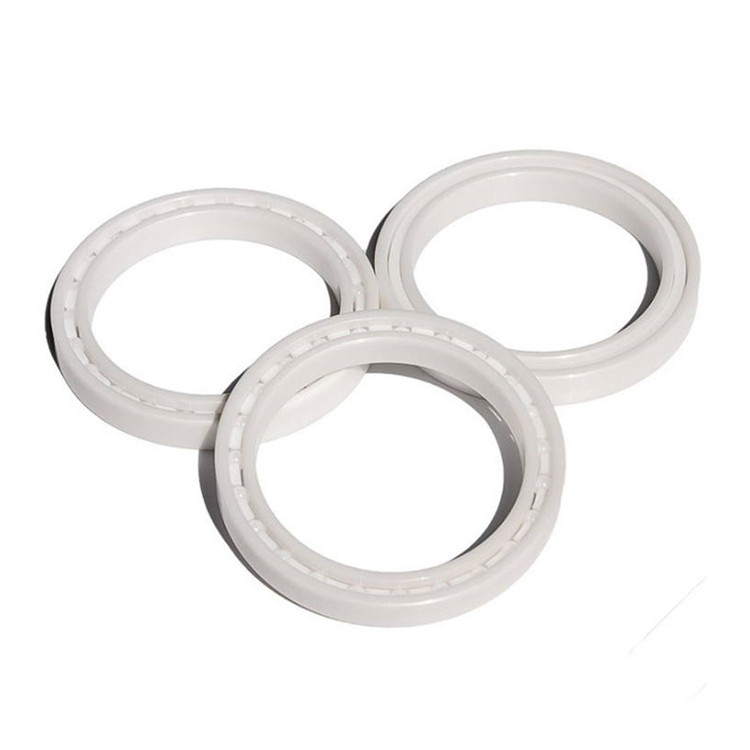

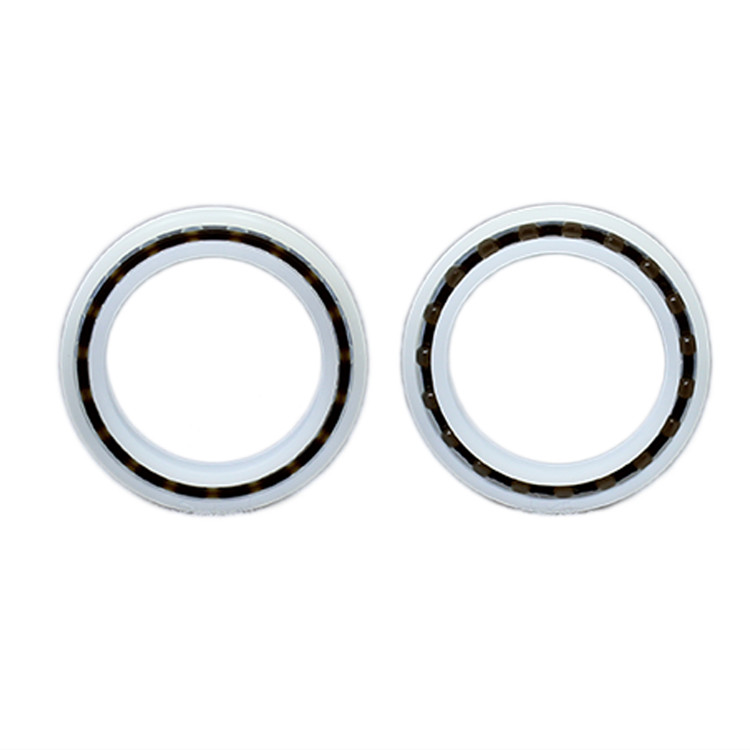

Plastic 6806 bearing | Ceramic 6806 bearing | Chrome Steel Bearing |
The 6806 bearing belongs to the series of deep groove ball bearings. The bearing is mainly used for current transformers, electroplating equipment, energy storage machines, drug testing equipment, low-voltage switch cabinets, marine instruments, current measuring instruments, combined machine tools, nailing machines, and automotive Lamps and other equipment.
