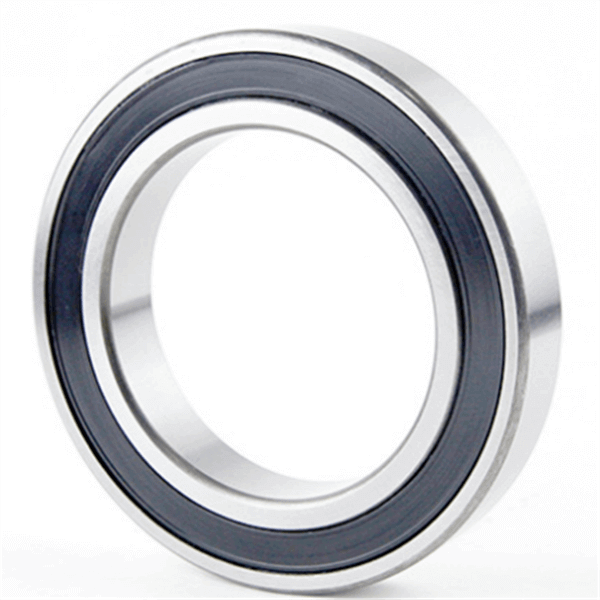

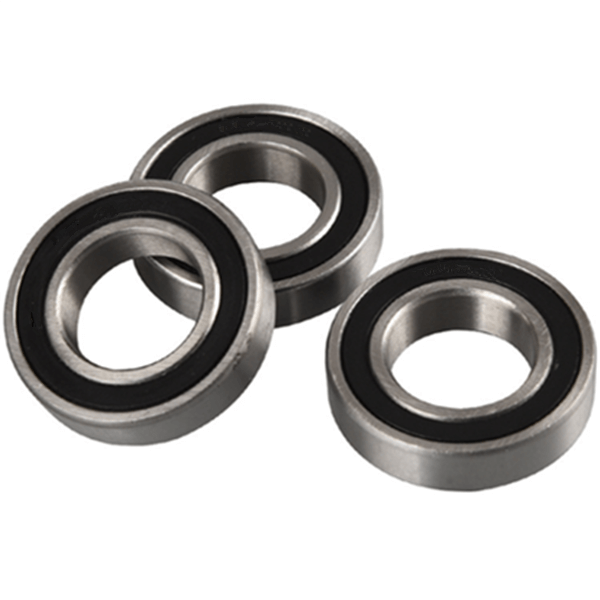

6901 2rs is deep groove ball bearing

6901 2rs bearing inner ring, ball and cage can rotate freely around the bearing center and have the centrality.It can compensate the error of center, deformation of shaft and deformation of bearing pedestal.The deep groove ball bearing is suitable for transmission bearings with difficulty in aligning the shaft and upper shell and easy deflection of the shaft.
Specification parameters for 6901 2rs:
D (diameter) : 12 mm
OD (outer diameter) : 24 mm
B (thickness) : 6 mm
R (minimum) : 0.3
Cr(Rated dynamic load):2.9kN
Cor(rated static load):1.45kN
F0:14.5
Grease: 31,000 RPM
Oil: 36000RPM

B_type (class): Deep groove ball bearing
6901 2rs installation method: force fit: 6901 2rs bearing inner ring and shaft tight fit, outer ring and bearing hole is a loose fit, press the bearing to be pressed on the shaft are available, and then put the shaft together with the bearing load bearing hole, when pressed on the 6901 2rs bearing inner ring end face, cushion the assembling casing made of a soft metal material (copper or mild steel),6901 2rs bearing outer ring and bearing hole tight fit, inner ring and the shaft is a loose fit, the bearing can be pressed into the bearing hole first, then assembling casing diameter should be slightly less than the diameter of a hole. If the bearing ring and shaft and hole is a tight fit, install indoor ring and outer ring to pressure into the shaft and hole, at the same timeThe casing assembly shall be of a structure capable of holding the end face of both the inner and outer rings of the bearing.

6901 2rs bearing application:
6901 2rs can be used for gearboxes, instruments and meters, electrical machines, household appliances, internal combustion engines, traffic vehicles, agricultural machinery, construction machinery, construction machinery, roller roller skates, yo-yo ball, etc.
