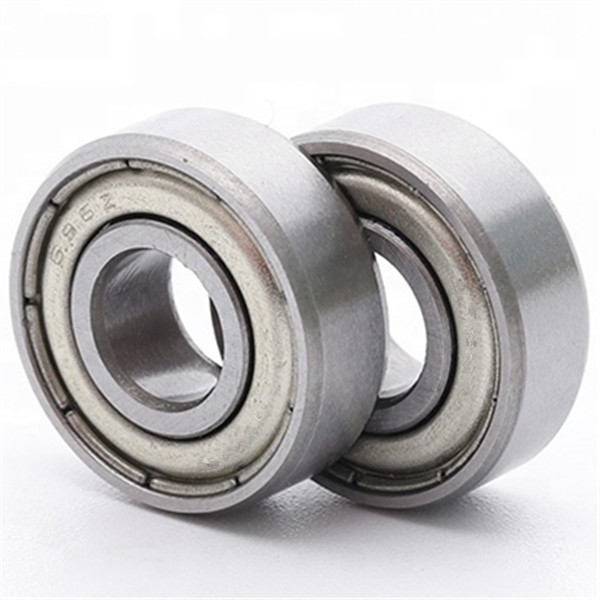

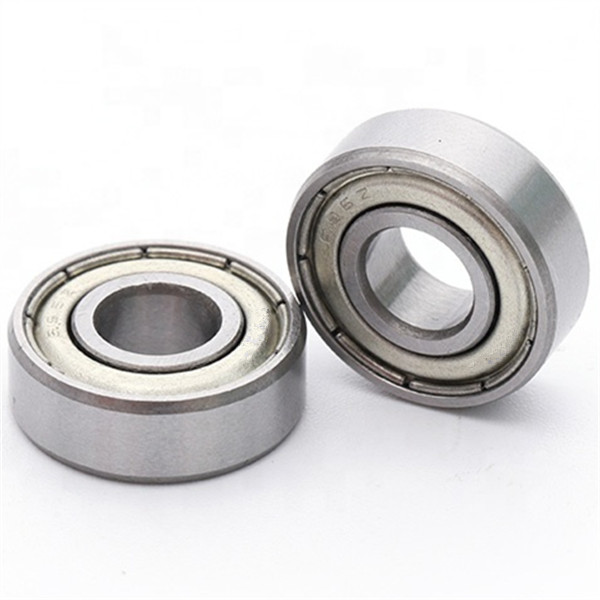

696 zz bearing is belong to miniature deep groove ball bearing,Bearing bore diameter: 5mm
Outer diameter: 14 mm
Thickness: 5.0 mm
Rated dynamic load (N) of Cr: 1330
Cor rated static load (N) : 505
Rated dynamic load (Kg) : 135
Cor rated static load (Kg) : 52
696 zz bearing is made up of outer ring, inner ring, rolling body, rolling body retainer, seal (dust cover) and spring ring and other mechanical processing parts.Miniature and small ball bearings with an outside diameter of less than 30mm are precision parts assembled in the bearing position to ensure the stable operation of the transmission shaft of rotary equipment with high precision requirements.
Application of 696 zz bearing
This 696 zz bearing can also be used for industrial furnace, die temperature machine, reaction equipment, burner, hollow blade dryer, bean products processing equipment, kitchen equipment, plastic extruder, spices processing equipment, etc.
696 zz bearing material:
1) Ring, rolling material required performance: rolling fatigue strength, high hardness, high wear resistance
2) Cage material required performance: good dimensional stability, high mechanical strength, in addition, also need good processing.According to the different USES, there are also requirements of impact resistance, heat resistance, good corrosion resistance.
696 zz bearing performance:
1)Low noise;
2)High speed;
3)High precision;
4) Long life.
Clearance control of 696 bearings
Aiming at the problem of radial clearance control and overtolerance of radial clearance after fitting in the production of 696 zz bearings, the accuracy of inner and outer grooves and steel balls is strictly controlled, and the radial clearance range when calculating axial clearance is compressed, the lower limit value remains unchanged and the upper limit value is compressed by 15%.The axial clearance obtained by this method is the actual radial clearance after the control of the sheath. The example shows that the method can meet the technical requirements.
If you need 696 zz bearing or need any other bearings, please also contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
