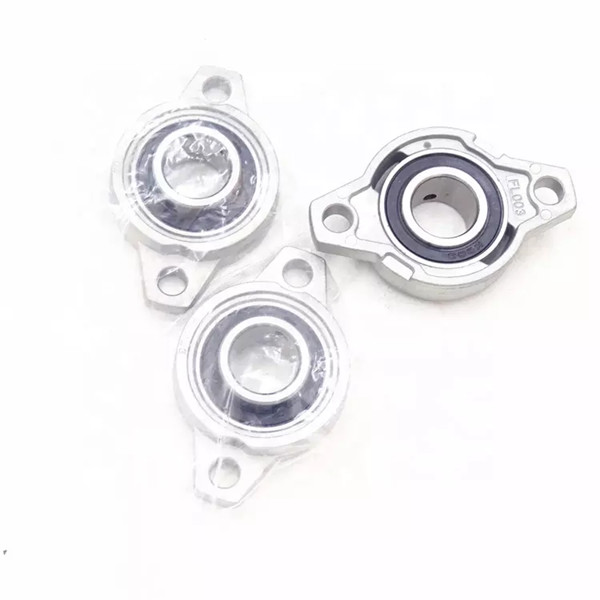

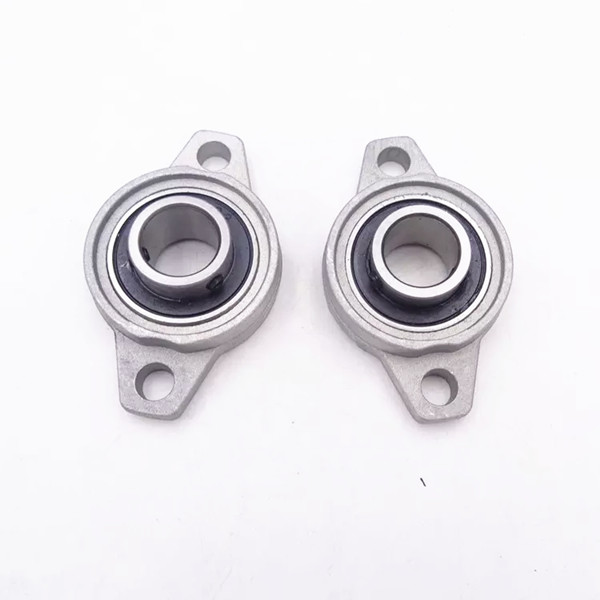

Zinc Alloy Bearing Unit Pillow Block is a bearing unit that combines rolling bearings and bearing seats. Most outer spherical bearing is made of the outer diameter into a spherical surface, which is installed with the imported bearing seat with spherical inner holes. The structure is diverse and the generality and interchangeability are good.
At the same time, such bearing also has a certain amount of mind, easy to install, and double -structured sealing device, which can work in a harsh environment.
Zinc Alloy Bearing Unit Pillow Block can be directly installed on the main body of the mechanical device through several bolts. It has heart adjustment functions and can supplement grease. It is a very simple product of installation and use.
According to the different requirements of the bearings and bearing seats, the classification of the bearing seat is not exactly the same
1 Classification of the shape of the bearing seat:
1.1 The outer spherical bearing is also called the bearing unit. It is called the outer spherical bearing seat when it is not bearing. Facial bearing seat is divided into 200 series according to the bearing series. 500 series. 300 series. 600 series.
1.2 Facial bearing seats are divided into vertical seats (P seats), square seats (F seat), diamond seat (FL seat), round seat (B), convex seat (FC seat), convex Performance seats (FS seats), dark holes (PA seats), hanging seats (FA seats).
1.3 Overall (that is, non -separated) vertical bearing seat seat, with a tight bearing box cover with screws. These vertical bearing seats were originally developed as a shaft box for light rail trucks, but they can also be used for traditional vertical bearing seats. Non -separated vertical bearing seats are high in separate bearing seats, and some can withstand heavier loads. Facial bearing seats in the outer ball also belong to the overall seat.
2 Clicpo Specification Barrier
2.1 Code dividing bearing seat, according to the different bearing of the selected bearing and the requirements of the shafts, the SN2, 5, 3, 6 series, SNL2, SNL5, and SD have 2, 5, 3, 6, 3100, 3200, 3200, 3200
Zinc Alloy bearing unit pillow block is widely used, suitable for various applications, including rolling machines, ventilation systems, papermaking machines, conveyor belt drums, and long shaft connecting motors and industrial gearboxes.
If you need any brand bearings or any models of bearings, please contact me!
Contact: April
Email: nsk@llhbearing.com
TEL/Whatsapp: +8615315593063
skype/Wechat:april15315593063
