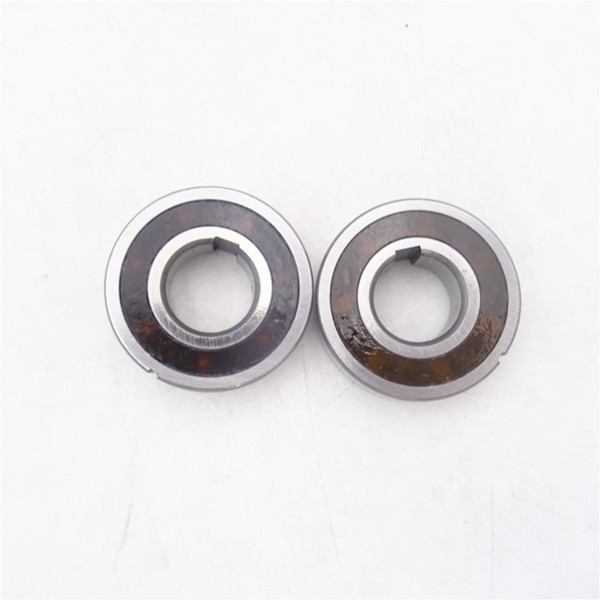

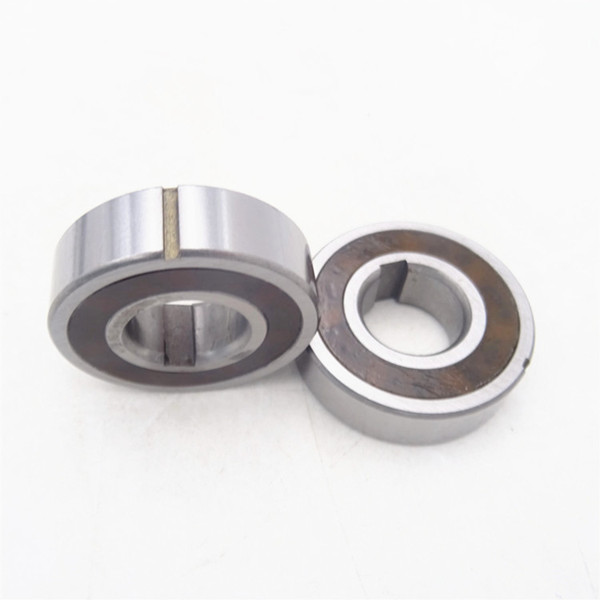

We Provide one-way Clutch Ball Bearing for Washing Machine

One -way bearing, bearing for washing machine is a bearing that can rotate freely in one direction and locks to the other direction. One -way bearings are also called transcendences. In the metal shell of one -way bearings, there are many rolling axis, rolling needles or rolling beads, and the shape of its rolling seat makes it only rolled in one direction, and it will generate great resistance in the other direction.

The physical unidirectional of bearing for washing machine uses GCR15 bearing steel: The hardness after thermal treatment is in HRC61-65, the bearing volume is small and has high loading capacity. It has enough space for storing lubricating fat, and there can be a longer period of lubrication.
Powder metallurgical unidirectional bearing and physical unidirectional bearing can completely "lock" the drive shaft to be driven by the driving force, avoiding the problem of insufficient "locking" performance of the unidirectional bearing of traditional stamping outer circles.

Main application: textile machinery; printing machinery; automotive industry; home appliances; banknote test machine.

Type code: HF, HFL, FCB, RCB, RCB, RC, F, IWC, EWC, DC, CSK, CKB (B200), Asnu, CKA, FWD, NF, etc.

Working principle of one -way bearing for washing machine:
1. wedge block design
It consists of the inner ring, outer ring, wedge group, wedge block, powerful spring and bearings.
The wedge is wedded between the inside and outer ring, so that one rolling road conveys the power to the other. The wedge has two diameter of the diameter of the diameter, (that is, from the corner of the wedge to the distance of another diagonal). The wedge action occurs in the relatively large vertical position on a relatively large cross -section when the inside and outside rotation occurs.
2. The role of self -locking corners mainly depends on the wedge and self -lock angle of the wedge between the inner and outer circles.
The basic concept of a wedge unidirectional clutch requires that the friction coefficient of the wedge is related to the sudden torque of the inner ring in the drive direction. This friction value must be greater than the positive cut value of the self -lock angle. If the conditions are not safe, wedge will not happen.
The self -lock angle is determined by the structure of the wedge block. The points on the inner and outer circles are connected to it with wedge blocks. There is a very low initial self -lock corner in the design of the wedge to ensure the absolute combination of the beginning. As the torque increases, a radial force on the wedge will generate a radial force that rolled the wedge, which causes the wedge to roll to a new position. The wedge is often designed as a self -lock angle that can gradually increase, as from the position of the bearing to the maximum load. The relatively large self -lock angle can reduce the radial force produced by the wedge, so as long as it is allowed to be transmitted within the requirements of the elongation and the hardness limit of the Belish hardness.
3. slope and roller design
The slope and roller unidirectional clutch are basically composed of a group of roller that is tilted with the outer ring of the inner diameter, the inner ring with the slope and the spring force and the inner and outer circles is always closely in the inner and outer ring. As long as the rotation of one of the rolling roads in the direction of its movement has an impact on the other, this arrangement essentially ensures the instantaneousness of the speed beyond speed and ensuring the immediately driving ability.

If you need one way bearing for washing machine, please contact me!
