Description of high quality bearing seater

The slewing bearing seater is a large and extra-large bearing seat that can accept comprehensive loads and has a special structure. It has the characteristics of compact structure, sensitive rotation, and convenient device maintenance. Where there is a bearing, there must be a support point. The inner support point of the bearing is the shaft, and the outer support is often referred to as the bearing seat.

The meaning of bearing seater
Because one bearing can choose different bearing seater, and one bearing seater can choose different types of bearings at the same time, there are many types of bearing seats. Bearing housings are included in Quick, Easy and Excellent, and many large foreign bearing companies also have their own housing catalogs. However, the markings of the same bearing seat model in different company samples are not exactly the same. For different applications of standard housings, housings of different materials can be selected, such as special housings of gray cast iron, ductile iron, cast steel, stainless steel, and plastic.

bearing seater-overview
According to the different requirements of the bearing and the bearing seater, the classification of the bearing seat is not exactly the same. When using it, carefully check the selection according to the design.

1 According to the shape of the bearing seater:
(1) Bearings with outer spherical surfaces, also called bearing units (SKF's parlance). When there is no bearing, it is called an outer spherical bearing seat. 1.1.1.1 The outer spherical bearing seat is divided into 200 series according to the bearing series. 500 series. 300 series. 600 series. XOO series.

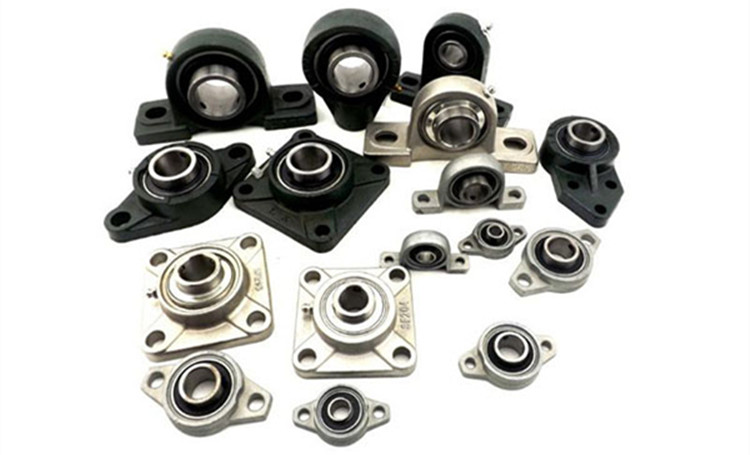

(2) The outer spherical bearing seater is divided into vertical seat (P seat), square seat (F seat), diamond seat (FL seat), round seat (C seat), and boss round seat (FC seat) according to the shape. , Boss square seat (FS seat), dark hole seat (PA seat), hanging seat (FA seat).

(3) Integral (that is, non-separable) vertical bearing seater assembly, with screw-fastened bearing box cover. These vertical bearing block sets were originally developed as axle boxes for light rail trucks, but they can also be used in traditional vertical bearing block sets. The non-separable vertical bearing seat assembly has higher rigidity than the separate bearing seat, and some can withstand heavier loads. The outer spherical bearing seat is also an integral seat.

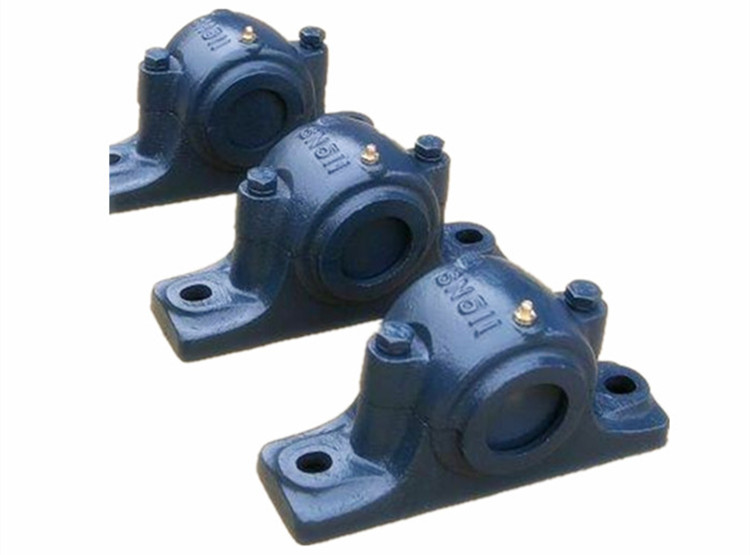

2 split housing
　　
Split bearing housings are divided into SN2, 5, 3, and 6 series according to different bearings and shaft requirements. SNL2, SNL5, SD have 2, 5, 3, 6, 3100, 3000, 3200
The bearing seat is divided into: split bearing seat, sliding bearing seater, rolling bearing seater, bearing seat with flange, outer spherical bearing seater and so on.
