The insert ball bearing uc 208 is actually a variant of the deep groove ball bearing. Its outer diameter surface is spherical, which can be fitted into the corresponding concave spherical surface of the bearing seat to play the role of centering. The insert ball bearing uc 208 is mainly used to bear the combined radial and axial load, and it is not suitable to bear the axial load alone.

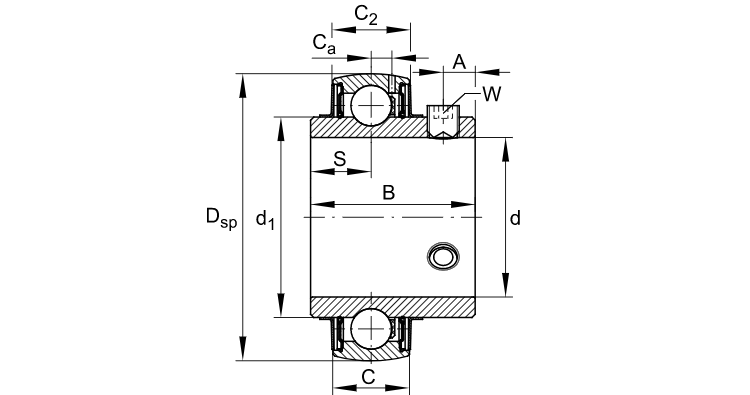

Insert ball bearing uc 208 size:
d | 40 mm |
DSP | 80 mm |
B | 49,2 mm |
A | 8 mm |
C | 21 mm |
C2 | 21,6 mm |
Ca | 6,2 mm |
d1 | 52,27 mm |
S | 19 mm |
W | 4 mm |
Mass | 0.62kg |
Insert ball bearing uc 208 picture:

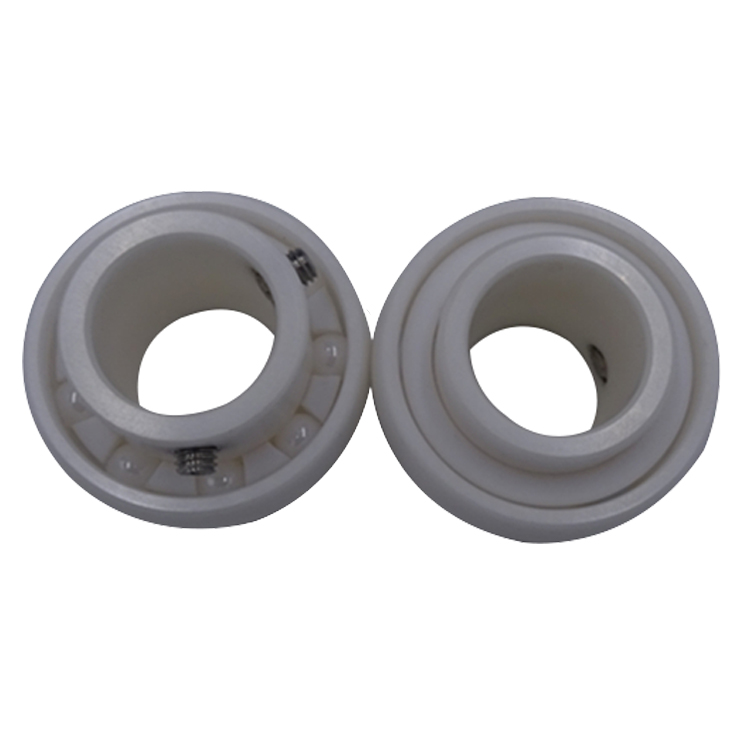

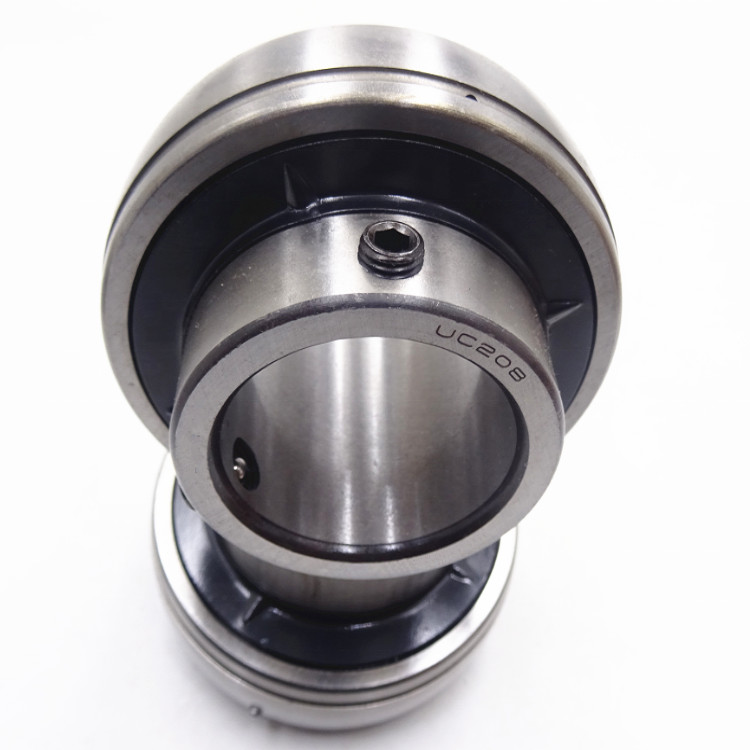

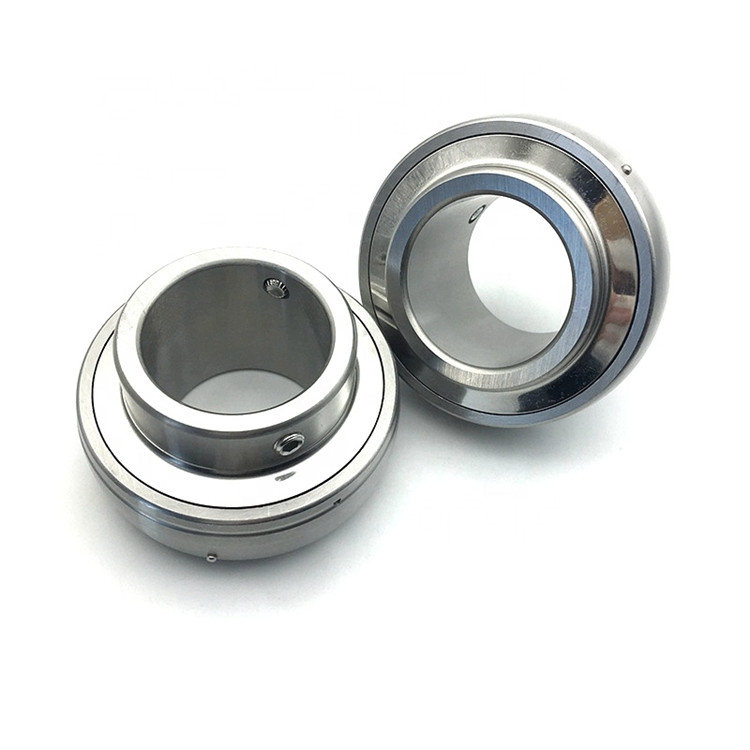

Full ZrO2 ceramic bearing uc208 | Stainless Steel Bearing uc208 | Chrome Steel Bearing uc208 |
The insert ball bearing uc 208 is mainly used to bear radial direction load primarily radial and axial loads, and should not be commonly alone bear axial load, the bearing can be installed separately inner ring (with full set of roller and retainer) and outer ring. This kind of bearings are not allowed to have inclined shaft relative shell, under radial load appointment will generate additional axial force.
