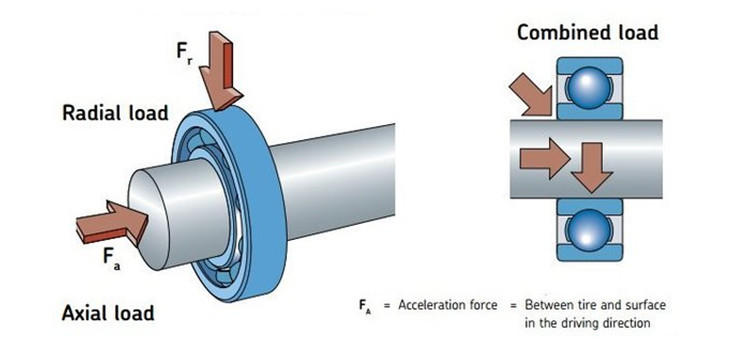

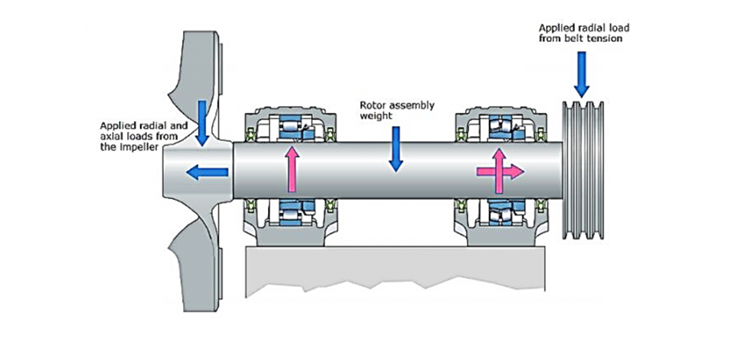

Bearing which will take axial and radial loads

1. Bearing which will take axial and radial loads-angular contact ball bearing

There is a contact angle between the ring and the ball. The standard contact angle is 15° (mostly used for larger size precision bearings), 30° (mostly used for precision spindle bearings) and 40° (suitable for bearing larger axial loads) , the larger the contact angle, the greater the axial load capacity, the smaller the contact angle, the more conducive to high-speed rotation, single-row bearings can withstand radial load and unidirectional axial load. The two single-row angular contact ball bearings that are combined in structure on the back share the inner ring and the outer ring, and can bear radial load and bidirectional axial load.

2. bearing which will take axial and radial loads-thrust spherical roller bearing

In this type of bearing, the spherical rollers are arranged obliquely. Because the raceway surfaces of the races are spherical and self-aligning, the shaft can tolerate some tilt and has a large axial load capacity. It can not only bear axial load, but also bear certain radial load, and is generally lubricated with oil.

3.bearing which will take axial and radial loads-tapered roller bearing

This type of bearing is equipped with truncated truncated rollers, which are guided by the large rib of the inner ring. The design makes the vertices of the inner ring raceway surface, the outer ring raceway surface and the conical surfaces of the roller rolling surface intersect at the center line of the bearing. point above. Single-row bearings can bear radial load and one-way axial load, and double-row bearings can bear radial load and two-way axial load, and are suitable for bearing heavy load and impact load.
