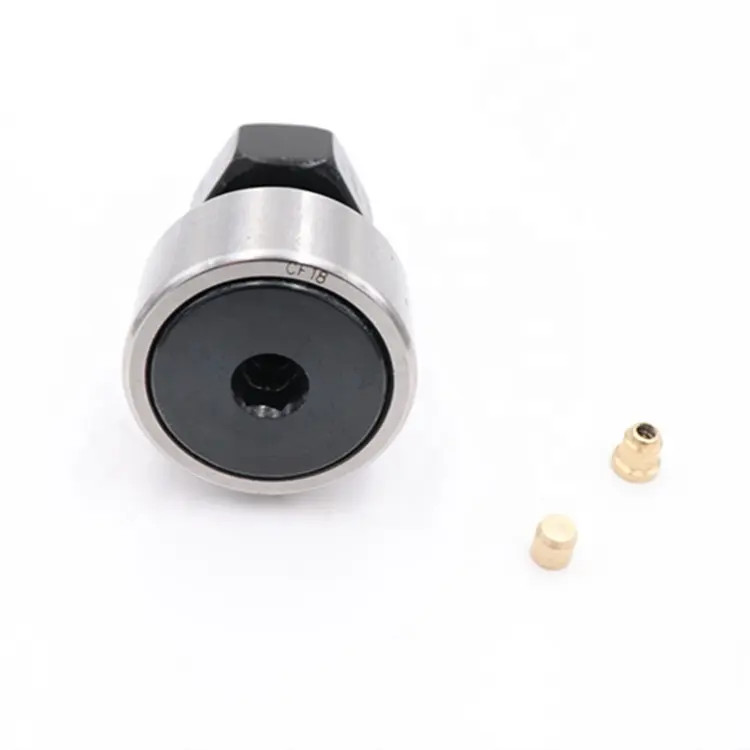

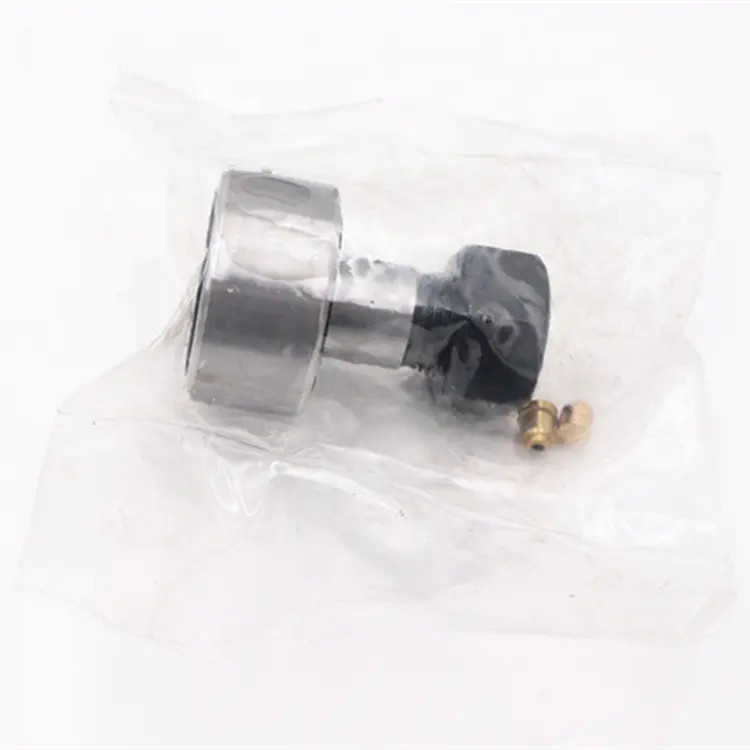

The standard cam followers track roller bearings CF is the basic form of cam followers bearing. The rod end diameter ranges from a minimum of 3mm to a maximum of 30mm, with a wide range of sizes and applications. CF5 bearing diameter is 5mm.

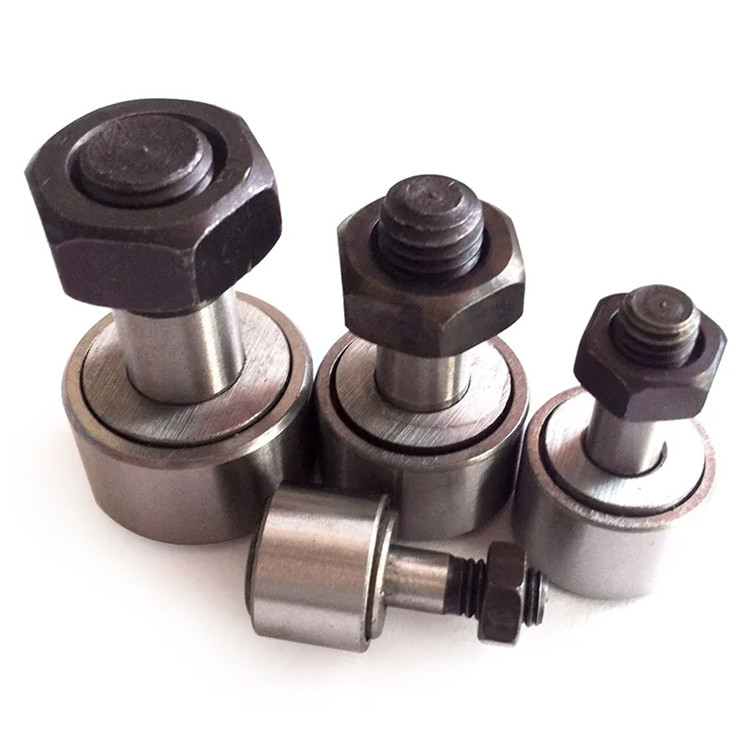

CF5 bearing cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. CF5 bearing based on either needleroller bearings. Instead of an inner ring, they have a threaded solid stud (pin). supplies them ready-to-mount. Cam followers are available in several designs and variants:
With or without a cage
With different stud designs:
A concentric seat
An eccentric collar
With several sealing solutions
With the outer ring running surface profile:
Crowned as standard
Cylindrical (flat)
In contrast to ball and roller bearings, where the bearing size refers to the bore diameter d, for cam followers the size refers to their outside diameter D.
The outer ring of the CF5 Bearing roller bearing adopts a fully loaded cylindrical roller bearing with a thicker outer ring wall. The outer diameter surface of the roller is cylindrical and can be designed to fit with the raceway surface according to the usage situation. By using this outer ring, the roller can roll directly on the raceway and can withstand heavy loads and impact loads.
The combination roller bearing consists of the main roller, side roller, shaft head, and cover plate.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Bella
Email/Skype: skf@llhbearing.com
TEL/Wechat:+8615318805907
Whatsapp: +8615315596312
