What is combined thrust and radial bearing?

Combined thrust and radial bearing is a bearing unit composed of radial needle roller bearing and thrust bearing or angular contact ball bearing. load. And the product structure is diverse, adaptable and easy to install. Widely used in machine tools, metallurgical machinery, textile machinery and printing machinery. combined thrust and radial bearing is used where the mating shaft is designed as a bearing raceway, which has certain requirements on the hardness of the bearing; or it can be fitted with the company's special IR standard inner ring for insert treatment, which has no requirements on the shaft hardness, and its structure will be more compact. Combined thrust and radial bearing is widely used in various mechanical equipment such as machine tools, metallurgical machinery, textile machinery and printing machinery, and can make the mechanical system design more compact and flexible.

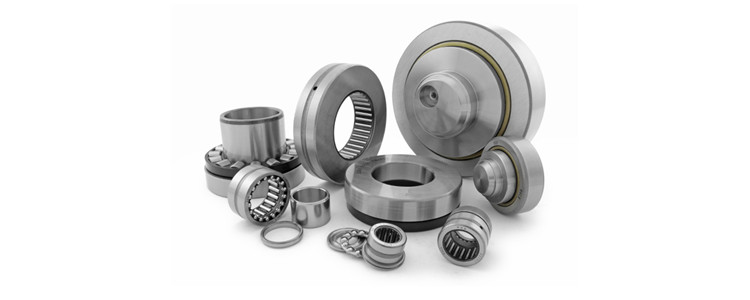

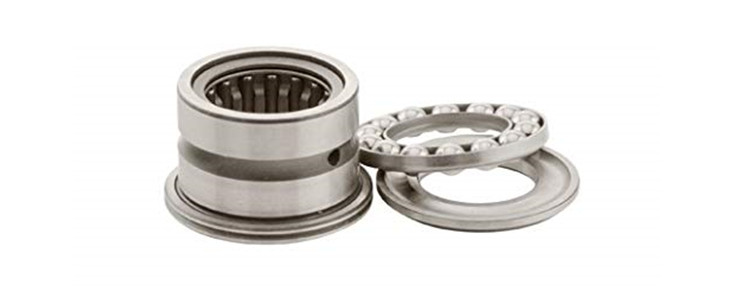

Combined thrust and radial bearing structure

This type of bearing has a combination of radial needle rollers and thrust full balls, or with thrust balls, or with thrust cylindrical rollers, or with angular contact balls, and can withstand unidirectional or bidirectional axial loads. Combined thrust and radial bearing can also be designed according to the user's special structural requirements.

Combined thrust and radial bearing product accuracy

Dimensional tolerance and geometric accuracy are in accordance with JB/T8877.

The diameters of the needle rollers differ from each other within 2μm, and the accuracy grade is G2 (national standard GB309).

The diameter of the inscribed circle before assembly of the bearing without inner ring conforms to the tolerance class F6.

The radial clearance of the bearing conforms to the specified value of Group 0 of GB/T4604.

The special precision grade is according to GB/T307.1.

For the details of bearing clearance, inscribed circle, and special requirements for precision grades, please contact our company.

Combined thrust and radial bearing material

The needle roller material is GCr15 bearing steel, hardened HRC60-65.

The material of inner and outer rings is GCr15 bearing steel, hardened HRC61-65.

The cage material is high quality mild steel or reinforced nylon.

Special Instructions

The axial load of NKIA and NKIB series bearings shall not exceed 25% of the radial load.

The supporting occasions used for alternating axial loads must be installed opposite.

Thrust bearing components must be preloaded up to 1% of the basic static axial load rating.

When using a plastic cage (suffix TN), continuous operation must not exceed the operating temperature of +120°C.

The thrust bearing components should move freely in the housing.

For the general configuration design of the bearing, see the relevant recommendations in the application technology of rolling bearings.
