The rollers of crossed roller slide between the inner and outer wheels are spaced crosswise at right angles to each other.They can bear loads (axial, thrust, or momentum) from all directions at the same time.Because the roller of crossed roller slide is in linear contact with the track surface, there is little possibility of elastic deformation under load.This type of crossed roller slide bearing is widely used in industrial robots, working machines and medical facilities where high rigidity, compactness and high rotational speed are required to ensure accuracy.
Precision crossed roller bearing as the main load bearing, show the other bearing irreplaceable advantages, gradually replace other conventional bearing in high speed reducer, precision cross roller bearings are embedded in the reducer output side as the main load bearing is used, combined with reducer body as a whole, sharply reduced the first volume, expanding the scope of application;Adopting the built-in mode of precision crossed roller slide bearing with strong rigidity, the load can act directly on the output part to obtain higher torque.At the same time, it reduces the combination difficulty and the overall cost.
The crossed roller slide bearing precision of our company can reach P4 and P2.Therefore, it is suitable for the joint part and rotating part of industrial robot, rotating table of machining center, rotating part of manipulator, precision rotating table, medical instrument, hollow rotating platform, IC manufacturing device and other precision equipment.

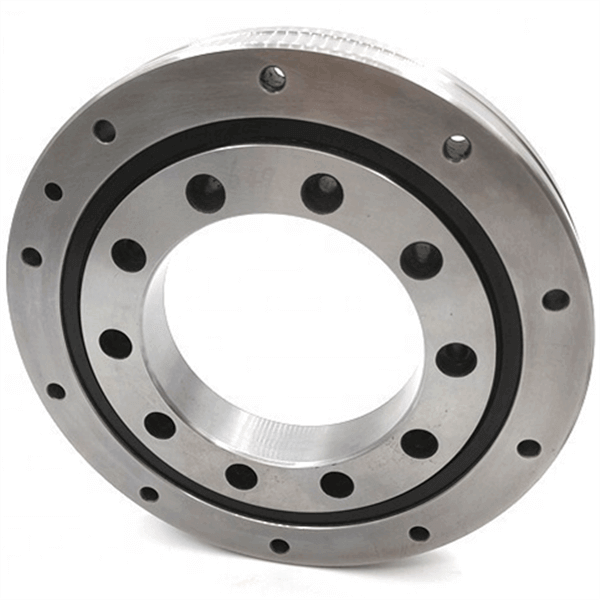

High precision crossed roller slide bearings
1. Machine tools: turret knife dividing, dividing dial and loader;
2. Robot: Rotation and joint driving part;
3. Semiconductor manufacturing equipment: handling robot and inspection platform;
4. Liquid crystal manufacturing equipment: handling robot, inspection platform, sensitizer applicator roller drive;Printing machine: Driven by photosensitive applicator roller.
If you need crossed roller slide or need any other bearings, please also contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
