Different types of 12mm diameter bearing 6301 123712mm

94 Published by admin Aug 12,2024

The basic type of deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls, and a set of retaining structures. There are two types of deep groove ball bearings: single row and double row. The deep groove ball structure is also divided into sealed and open types. Open type refers to bearings without a sealed structure, while sealed deep groove balls are divided into dust-proof and oil proof seals.

12mm diameter bearing 6301 mainly bear radial loads, and can also bear both radial and axial loads simultaneously. When it only bears radial loads, the contact angle is zero. When deep groove ball bearings have a large radial clearance, they have the performance of angular contact bearings and can withstand large axial loads. The friction coefficient of deep groove ball bearings is very small and the maximum speed is also high.
12mm diameter bearing 6301 is the most commonly used rolling bearings. Its structure is simple and easy to use. It is mainly used to withstand radial loads, but when the radial clearance of the bearing is increased, it has a certain degree of angular contact ball bearing performance and can withstand combined radial and axial loads. When the speed is high and thrust ball bearings are not suitable, they can also be used to withstand pure axial loads. Compared with other types of bearings with the same specifications and dimensions as deep groove ball bearings this type of bearing has a lower friction coefficient and a higher limit speed. But it is not resistant to impact and not suitable for bearing heavy loads.

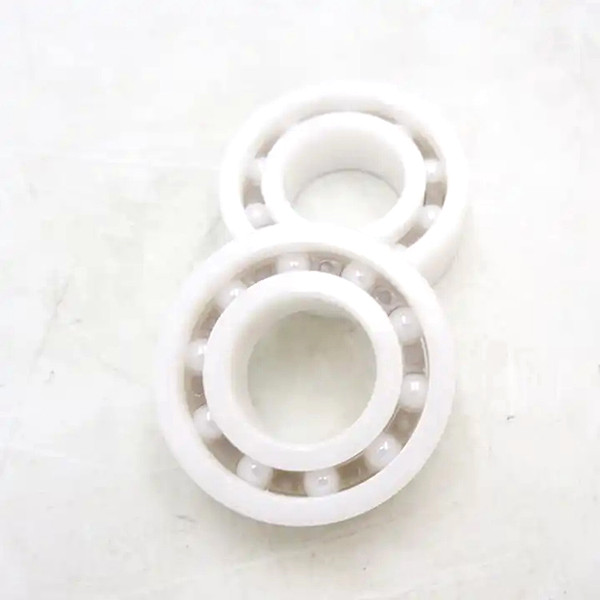

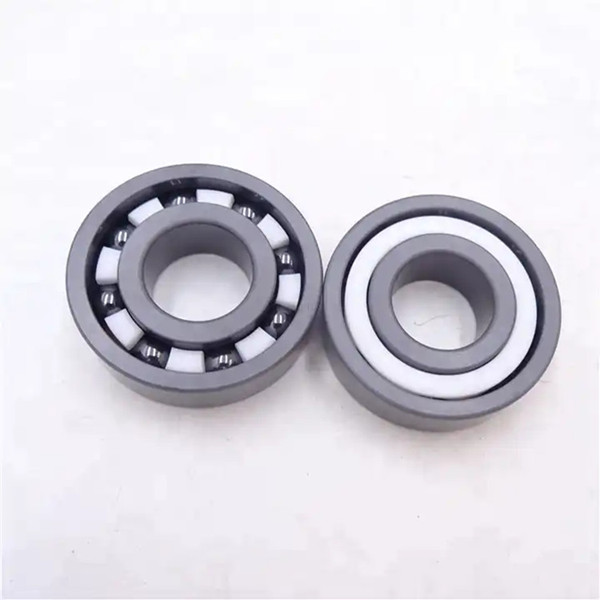

12mm diameter bearing 6301 ceramic material have characteristics such as high temperature resistance, cold resistance, wear resistance, corrosion resistance, resistance to magnetic and electrical insulation, oil-free self-lubricating, and high speed. It can be used in extremely harsh environments and special working conditions, and can be widely applied in aviation, aerospace, navigation, petroleum, chemical, automotive, electronic equipment, metallurgy, power, textiles, pumps, medical equipment, scientific research, and national defense and military fields. It is a high-tech product for the application of new materials.
The rings and rolling elements of ceramic bearings are made of all ceramic materials, including zirconia (ZrO2), silicon nitride (Si3N4), and silicon carbide (Sic). The retainer is made of polytetrafluoroethylene, nylon 66, polyetherimide, zirconia, silicon nitride, stainless steel or special aviation aluminum, thereby expanding the application range of ceramic bearings.
