Different Types of Thrust Bearings Ball and Roller Structure

218 Published by admin Oct 27,2023

A specialized bearing used to withstand axial forces is a bearing with forces parallel to the axis.
It is a separate type bearing, and the shaft ring and seat ring can be separated from the components of the cage and steel ball. The shaft ring is a sleeve that fits with the shaft, and the seat ring is a sleeve that fits with the bearing seat hole, with a gap between it and the shaft; Thrust ball bearings can only withstand axial loads,

Different types of thrust bearings.Divided into thrust ball bearings and thrust roller bearings.

Thrust ball bearings are also divided into thrust ball bearings and thrust angular contact ball bearings. The raceway ring composed of washers with raceways, balls, and cage components that fit with the shaft is called the shaft ring, and the raceway ring that fits with the shell is called the seat ring. Bidirectional bearings fit the middle ring with the shaft. Unidirectional bearings can withstand unidirectional axial loads, and bidirectional bearings can withstand bidirectional axial loads. Bearings with a spherical installation surface of the seat ring have centering performance, This type of bearing can reduce the impact of installation errors. It is mainly used in automotive steering mechanisms and machine tool spindles.

different types of thrust bearings brass

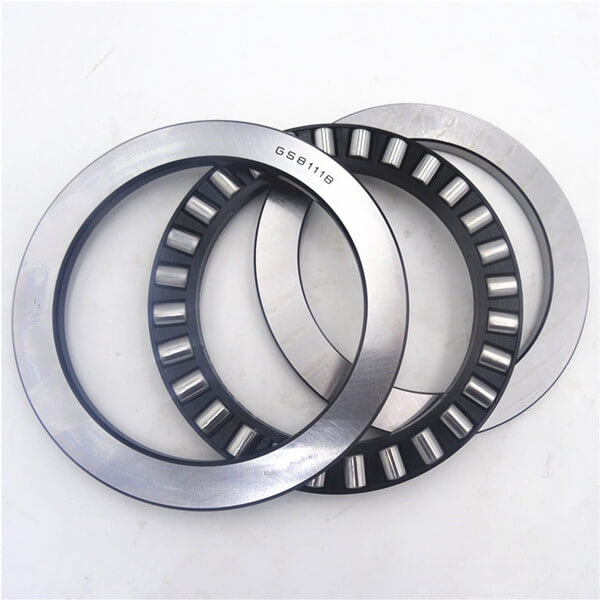

Thrust roller bearings are divided into cylindrical roller bearings, self-aligning roller bearings, tapered roller bearings, and needle roller bearings
Thrust cylindrical roller bearings are mainly used in oil drilling rigs and steel making machinery
Thrust self-aligning roller bearings are mainly used in hydraulic generators, vertical motors, ship propeller shafts, tower cranes, extrusion machines, etc
Thrust tapered roller bearings are mainly used for one-way crane hooks, oil drilling rig rotating rings, and two-way steel rolling mill roller necks
Plane thrust bearings mainly bear axial loads in assemblies and are widely used.

different types of thrust bearings roller
