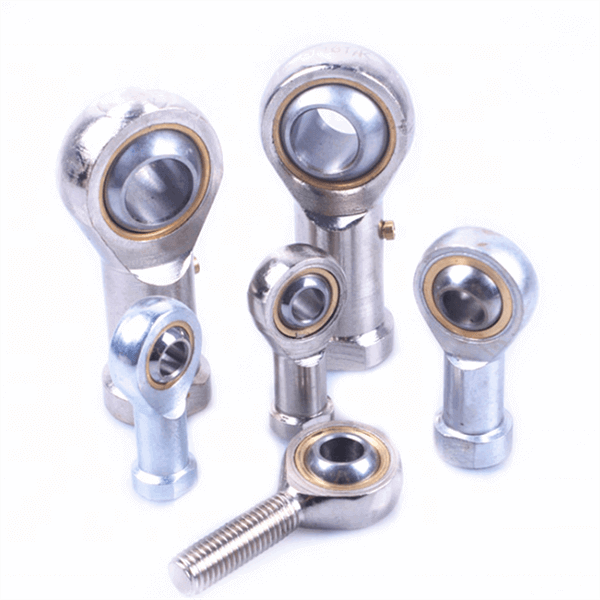

The eye rod end bearings are the spherical plain bearing. The basic type is composed of the inner and outer rings with the contact surface of the spherical plain sphere.
Eye rod end bearings EH series (reinforced type);Rod end articulated bearing EG series (reinforced type);Normal series of inch size eye rod end bearings (size series code name is Z);Rod end joint bearing JK series (dimension series code name is JK).Its structural material code and clearance group code as the joint bearing.
The eye rod end bearings is mainly used for the supporting parts with low concentricity, high working surface pressure and slow swinging and rotary motion.
For detailed information of eye rod end bearings, please refer to GB/T304,1-2002, GB/T304,2-2002, GB/T304,3-21102, and GB/12765-1991.Rod end joint bearing, belongs to the sliding bearing, there are wear-resisting non-metal material lubrication, there are oil channel oil lubrication.
Similar to ge20-et, ge15-et are joint bearings, the suffix is a specific type.
Articulated bearings are divided into GE,GEC,GEG,GEEW,GEK,GEH and other types, with different sizes and lubrication modes, which can be found in the classification of plain bearings in the mechanical design manual.
Narrow sense of the eye rod end bearing, should be referred to as the fish eye joint.

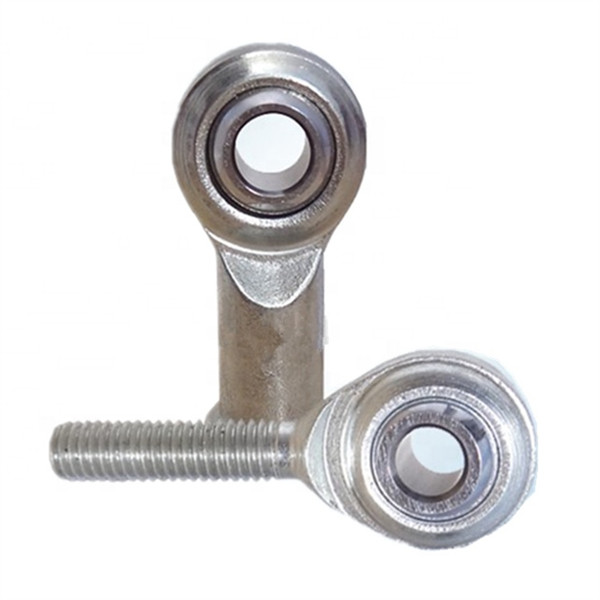

Fish-eye joint according to the connection mode of the internal and external wire distinction: internal thread series SIG, female thread series SAG.
The size of the inner and outer filaments is the same as the size of the fish-eye inner diameter, for example, the fish-eye joint with the M12, the bearing inner diameter is also D12.
Eye rod end bearings are widely used in engineering hydraulic cylinder, forging machine tool, engineering machinery, automation equipment, automobile shock absorber, hydraulic machinery and other industries.
If you need eye rod end bearings or need any other bearings, please also contact me!
