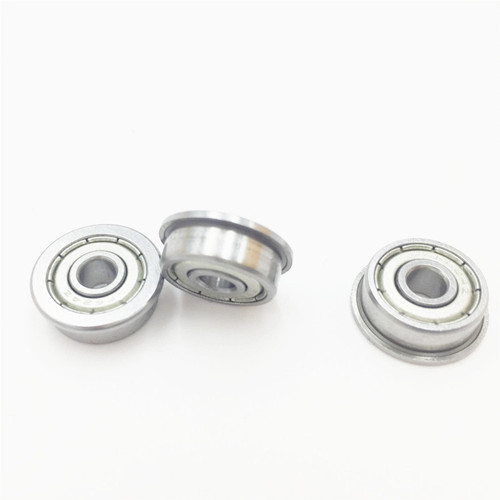

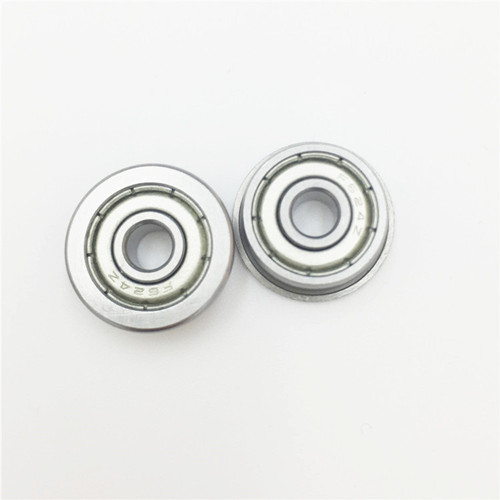

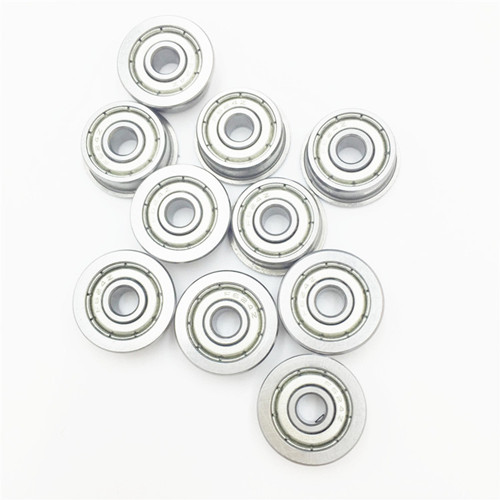

Characteristics and Applications of F694ZZ micro flange bearing
F694ZZ bearing features
The main feature of the is the outer ring with a flanged flange, which makes axial positioning easier without the need for a bearing seat, thereby reducing costs and simplifying design This type of bearing integrates the flange with the bearing. When there is no connecting piece at one end of the shaft and it needs to be fixed on a flat surface such as a plate or wall, the advantages of the flange bearing can be fully reflected By using steel balls with small outer diameters, low friction torque, high rigidity, and good rotational accuracy can be achieved. In addition, the design of the hollow shaft ensures lightweight and wiring space.
F694ZZ bearing applications
F694ZZ miniature flange bearings have a wide range of applications. They are suitable for various industrial equipment, small rotary motors, office equipment, micro motor soft drives, pressure rotors, dental drills, hard disk motors, stepper motors, video recorder drums, toy models, fans, pulleys, rollers, transmission equipment, entertainment equipment, robots, medical equipment, office equipment, testing instruments, reduction and transmission devices, motor optical imaging equipment, card readers, mechatronics, precision machinery, power tools and toys.
The material of F694ZZ micro flange bearing is usually high carbon chromium bearing steel (GCr15).
This material has good performance, moderate cold working plasticity, average cutting performance, poor welding performance, high sensitivity to the formation of white spots, and temper brittleness
In summary, F694ZZ micro flange bearing play an important role in many fields due to their unique structure and excellent performance.
other model bearing you may interested
|
Series No.
|
Some Deep Groove Ball Bearing Model
|
|
1) 6000 series:
|
604.605.606.607.608.609.6000.6001.6002.6003.6004.6005.6006.6007.6008.6009.6010.6011.6012
|
|
2) 6200 series:
|
624.625.626.627.628.629.6200.6201.6202.6203.6204.6205.6206.6207.6208.6209.6210.6211.6212
|
|
3) 6300 series:
|
634.635.636.637.638.639.6300.6301.6302.6303.6304.6305.6306.6307.6308.6309.6310.6311.6312
|
|
4) 6400 series:
|
6403.6404.6405.6406.6407.6408.6409.6410.6411.6412.6413.6414.6415.6416.6417.6418.6419.6420
|
|
5) 6700 series:
|
673.674.675.676.677.678.679.6700.6701.6702.6703.6704.6705
|
|
6) 6800 series:
|
685.686.687.688.689.6800.6801.6802.6803.6804.6805.6806.6807.6808.6809.6810.6811.6812
|
|
7) 6900 series:
|
695.696.697.698.699.6900.6901.6902.6903.6904.6905.6906.6907.6908.6909.6910.6911.6912
|
|
8)16000 series:
|
16001.16002.16003.16004.16005.16006.16007.16008.16009.16010.16011.16012.16013.16014.16015
|
|
9)R series:
|
R2. R3. R4. R6 R8. R10. R144. R166. R188. rls22zz
|
If need bushings and bearings，feel free to contact me for more details!
Contact:Bella
Whatsapp:+8615315596312
Wechat/TEL:+8615318805907
email/skype:skf@llhbearing.com
