What is the price for flanged cam follower bearing?

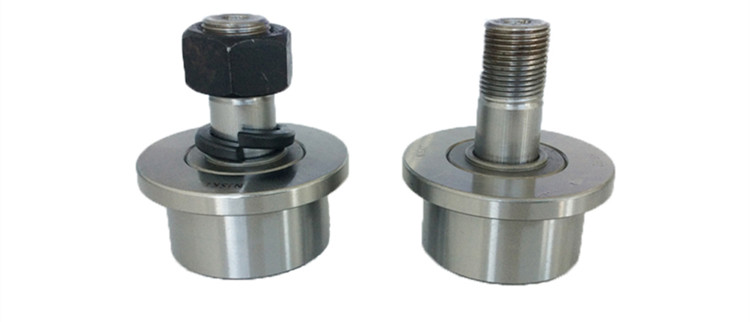

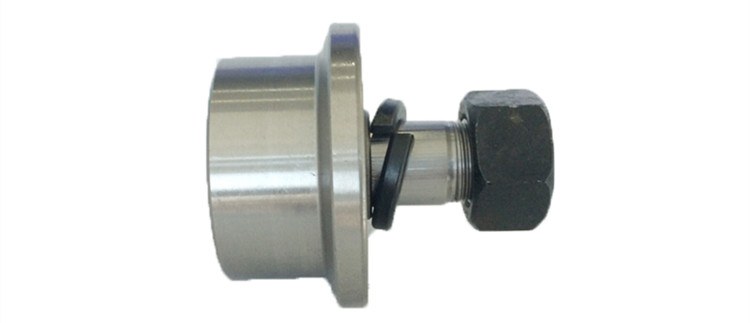

The flanged cam follower bearing is mainly composed of the rod end, rolling elements and outer ring. Suitable for medium and low speed, heavy load conditions. Widely used in cam devices, operation guide devices, conveying devices, machining center tool change devices, etc. It is a thick-walled outer ring with needle roller and rod end bearings. It is designed for the rotation of the outer ring. The friction coefficient is small and the rotation performance is good. In order to effectively increase the bearing area of ​​the bearing, the radial clearance design of the bearing is smaller than the traditional needle roller bearing. Therefore, the impact load can be reduced and a stable long life can be obtained. The rod end is threaded or graded for easy installation. Flanged cam follower bearings, as cam mechanism and linear motion follower bearings, have high rigidity and precision, and are widely used in machine tools, industrial robots, electronic components and office automation equipment. The stainless steel cam has excellent corrosion resistance. They are also suitable for places where grease is not suitable or for environments with water splashes and clean rooms.

Standard flanged cam follower bearings are the basic type of cam follower bearings. The diameter of the rod end varies from a minimum of 3 mm to a maximum of 30 mm. It consists of multiple sizes and uses. The flanged cam follower bearing rod ends have hexagonal holes at both ends of the rod, which can be installed from either side with an allen wrench. Eccentric flanged cam follower bearing rod end can be arranged by rotating the rod end, which can easily adjust the outer ring diameter and the surface load distribution is even. Like the standard cam follower bearing, it is an eccentric flanged cam follower bearing installed in the overall structure of the hole. The range of eccentricity is 0.25mm to 0.6mm. The flanged cam follower bearing with eccentric sleeve is fixed on the end of the connecting rod, which is convenient for radial positioning relative to the sliding surface. The range of eccentricity is 0.4㎜ to 1.5㎜. A special synthetic resin thrust washer with excellent wear resistance and heat resistance was installed at the sliding contact between the flange of the flanged cam follower bearing outer ring, the rod end and the side plate. It bears the axial load of the outer ring caused by installation errors, and has the function of preventing wear and friction of sliding contact parts. The flanged cam follower of the concentrated pipeline is equipped with a release port for the concentrated pipeline, which is most suitable for the concentrated pipeline that needs refueling.

The price of flanged cam follower ranges from tens of yuan to tens of thousands of yuan, the specific price should be determined according to the actual ball, please consult us for details.
