Flat cam follower is a type of bearing

Flat cam follower is a type of bearing, commonly used in automobile camshafts (the shaft that controls the opening and closing of the valves in piston engines).

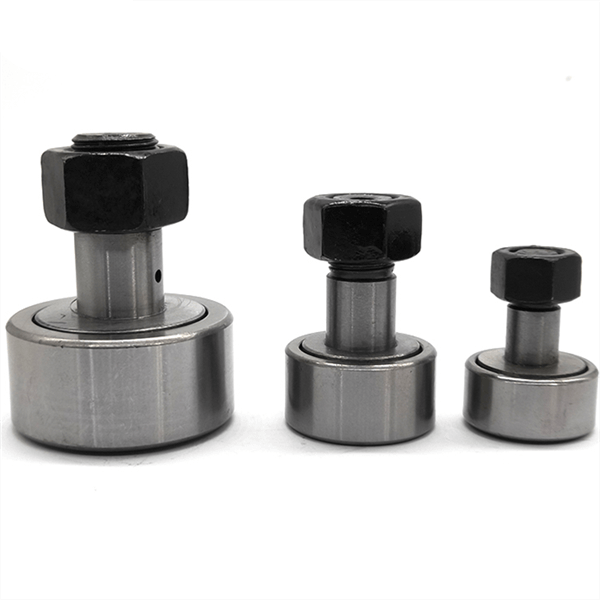

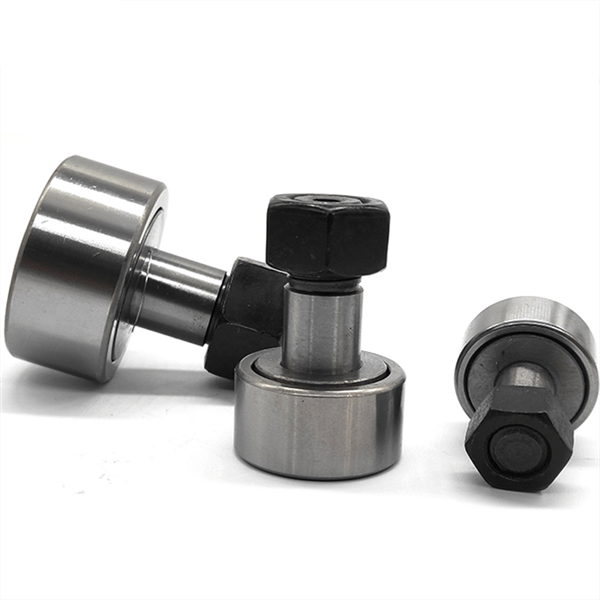

Structural characteristics of cam follower:
1. Combined structure of thick outer ring cam follower bearing and bolt.
2, the size of the metric series and the British series.
3. Lubricating oil channel is arranged in the bolt of the cam follower bearing.
4. In order to facilitate installation, the large end of the flat cam follower bearing is designed with "one-word" and "hexagonal" wrench assembly mode.
5. The outer surface of the outer ring has cylindrical and spherical shapes, which can be selected according to the actual application occasions.

6, full roller type is suitable for bearing large load, low speed occasions.
7. Eccentric type can easily and accurately adjust the axis position of the bolt when installing the flat cam follower bearing.
Adjustment of axial clearance of flat cam follower:
The axial clearance of the flat cam follower should comply with the relevant regulations. The inspection method is as shown in the attached drawing. The thickness difference between the thrust flange and the spacer can also be measured directly.When thrust flange wear makes shaft.

When the clearance exceeds the provisions, the thrust flange of the standard thickness should be replaced. The thickness of the spacer should not be reduced arbitrarily. Otherwise, the axial position of the CAM will be changed and the accuracy of the distribution phase will be affected.
Maintenance of flat cam follower:
Check the camshaft bending degree.With both ends of the journal as the fulcrum, the radial runout can not dry 0.03mm, over 0.1omm, can be corrected by cold pressure correction method.
