What is flat roller cage bearings?

Flat roller cage bearings means that high axial load and high rigidity can be obtained in a small space.

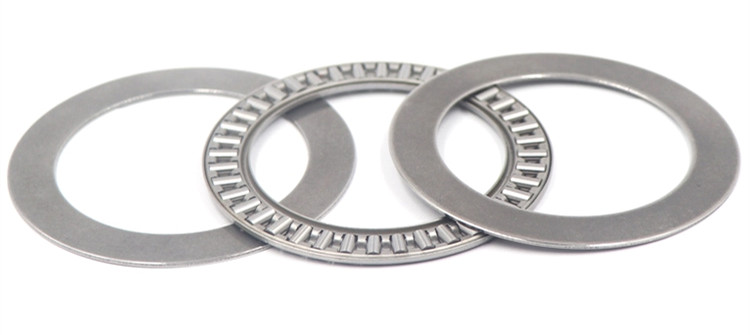

Flat roller cage bearings consist of a flat cage assembly with needle rollers and a flat washer.

AXK type thrust needle roller and cage assembly are the main components of flat roller cage bearings. The cage is cold-drawn and formed by steel plate, and the small-size cage is made of plastic, and uses G2 high-precision needle rollers to ensure uniform load distribution. Thrust cylindrical roller and cage assembly is similar to AXK type assembly, it can bear high thrust load.

Production of inch flat roller cage bearings cage components and supporting gaskets, such as TC, TWA, TWB, TWC and other series.

AXW type flat roller cage bearings consist of an AXK type thrust needle roller and cage assembly and a stamping center sleeve.

The main components of AX type flat roller cage bearings are AXK type components and thrust washers, which are integrated by the control ring.

2 thrust washer

Thrust washers are mainly stamped from high-quality spring steel strips (plates), and the thickness depends on customer needs. The washer is quenched-shaped-polished. It is mainly used for occasions where adjacent parts cannot be quenched, but have sufficient rigidity and geometric accuracy, and the supporting surface of the gasket should be fully supported.

Axle ring WS, seat ring GS and bearing washer LS are solid washers made of bearing steel after quenching. The surface is ground and polished. The outer surface of the seat ring and the inner hole of the shaft ring are also ground. Solid washers are generally used in conjunction with flat roller cage bearings and cage components.
