What is hydraulic cylinder rod end bearing?

The hydraulic cylinder rod end bearing is a standardized, ready-to-install machine element used to transmit the static and dynamic forces associated with rotational, tilting and rotational movements.

This rod end is used in hydraulic cylinders and is designed for particularly high forces.

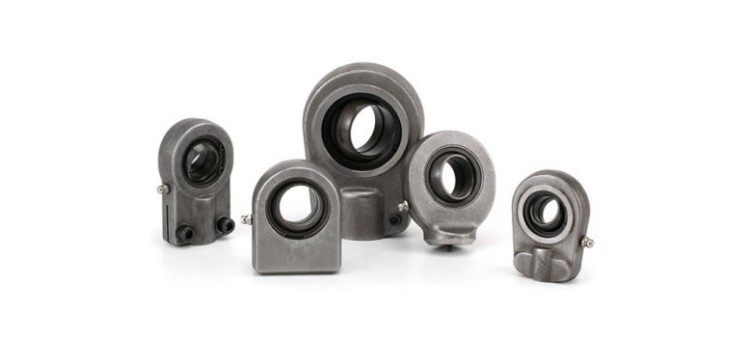

Common variations of hydraulic cylinder rod end bearings include:

Version with internal thread
Internal thread slotting, clamping screws
Slotted internal thread, clamping screw, connection dimensions to DIN 24338
Slotted internal thread, clamping screw, connection dimensions to DIN 24555
Round welding end and centering pin, connection dimensions according to DIN ISO 12240-4
Rectangular solder terminal
Internally threaded hydraulic rod ends are produced as standard and require maintenance and can be re-lubricated using a tapered lubrication nipple.

Hardened, ground and phosphated universal joint balls are used in housings made of forged tempered steel or weldable structural steel

.

Cylinder rod ends are used for connections via levers and rods and are used as connecting elements between the cylinder rod and adjacent parts in pneumatic and hydraulic cylinders. These are therefore called hydraulic cylinder rod end bearing.

Hydraulic cylinder rod end bearing classify by GB/T9161 standard:

1.Curved rod tee joint rod end bearings ( type code : SQ);

2.Straight tee joint rod end bearings ( type code : SQZ);

3.single rod tee joint rod end bearings ( type code : SQD) ;

4.left-handed internally-threaded rod end bearing assembly ( type code : SLLB);

5.L externally threaded rod end bearing assembly ( type code : SALB);

6.L curved rod type rod end bearings ( type code : SLLB);

7.L single rod type rod end bearings ( type code : SQLD);

8.with cylindrical welded rod end bearings (cylindrical type) ( type code : SK);

9.with a flat base welded rod end ( square ) ( types codenamed : SF);

10.locking the rod end port type ( type code : SLR)
