Pay attention to the following points when installing journal bearing thrust bearing:
(1) Distinguish the tight ring and loose ring of the bearing.
(2) Distinguish the stationary parts of the mechanism (that is, the parts that do not move, mainly referring to the assembly).
(3) In any case, the loose ring of the bearing should always rest on the end face of the stationary part.
Planar journal bearing thrust bearing mainly bear axial loads in assemblies, and they are widely used. Although the journal bearing thrust bearing installation operation is relatively simple, errors often occur during actual maintenance, that is, the tight and loose ring installation positions of the bearings are incorrect. As a result, the journal bearing thrust bearing are rendered ineffective and the journals are quickly worn.
The clamping ring is mounted on the end face of the stationary part, which means that it is incorrectly assembled. The inner ring of the tight ring and the journal are a transitional fit. When the shaft rotates, the tight ring is driven and friction with the end face of the stationary part. When the axial force (Fx) is applied, the friction torque will be greater than the inner diameter matching resistance torque, resulting in The mating surface of the ring and the shaft is forced to rotate, which intensifies the journal wear.

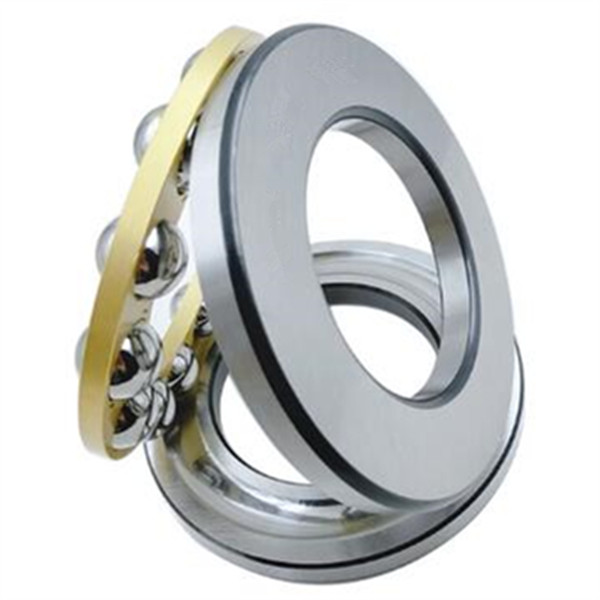

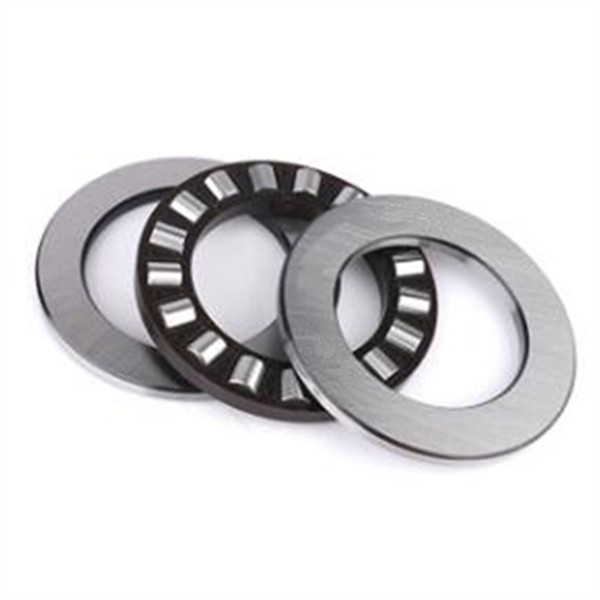

Journal bearing thrust bearing is divided into thrust ball bearing and thrust roller bearing.Thrust ball bearings are divided into thrust ball bearings and thrust angular contact ball bearings.Thrust roller bearing is divided into thrust cylindrical roller bearing, thrust centering roller bearing, thrust tapered roller bearing, thrust needle roller bearing.
Journal bearing thrust bearing are mainly used in oil drilling RIGS, iron and steel machinery.are mainly used in oil drilling RIGS, iron and steel machinery.
If you need journal bearing thrust bearing or need any other bearings, please also contact me!
