Do you know the thrust bearing function?

Thrust bearings are special bearings used to specifically support axial forces, and are bearings that are parallel to the direction of the shaft. So how much do you know about the thrust bearing function? Let's take a look at it together.

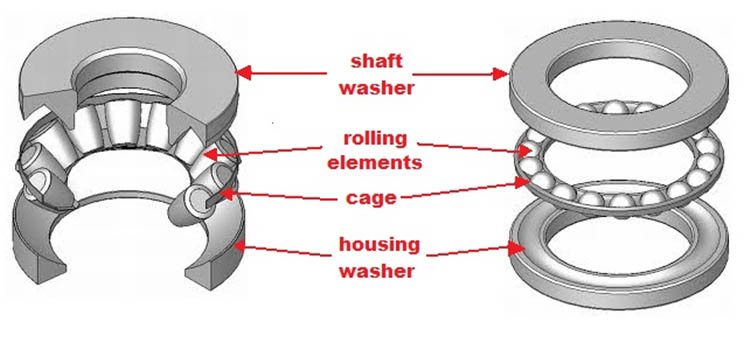

Thrust bearing function: thrust bearing is generally composed of two thrust washers or more thrust washers and several rolling bodies. Generally, thrust washers are divided into shaft and seat. The most common type of rolling elements is iron. The quality or copper cages are combined into one. The most common type of bearing is a steel ball thrust bearing.

Thrust bearing function: A thrust ball bearing is a separate type of bearing. The shaft ring and the race ring can be separated from the components of the cage and the steel ball. The shaft ring is a ferrule that cooperates with the shaft. The seat ring is a ferrule that cooperates with the bearing housing hole, and there is a gap between the shaft; the thrust ball bearing can only bear the axial load, and the one-way thrust bearing function can only withstand The axial load in one direction, the two-way thrust bearing function can withstand the axial load in two directions; the thrust ball bearing can not limit the radial displacement of the shaft, the limit speed is very low, the one-way thrust bearing function can limit the shaft and the housing. Axial displacement in one direction, two-way thrust bearing function bearings can limit axial displacement in both directions.

Thrust roller bearings are used to support axial and radial combined loads with axial loads, but radial loads must not exceed 55% of axial loads.
