How to Maintain Linear Motion Slides Bearing?

148 Published by admin May 22,2024

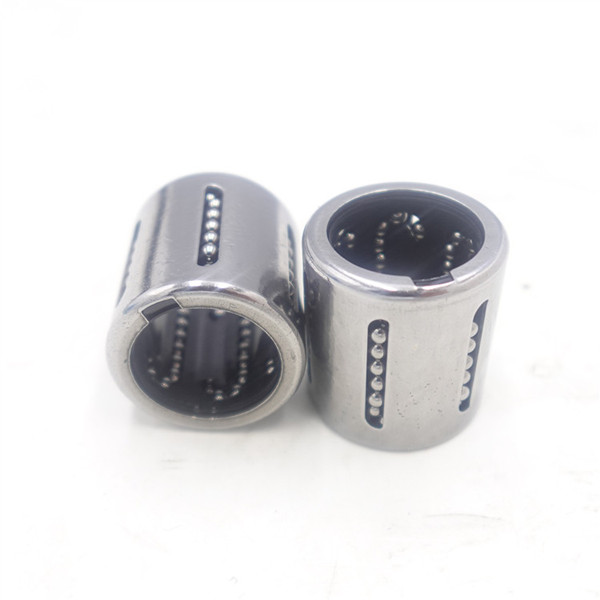

Linear motion slides bearing are a linear motion system used in conjunction with shafts for linear travel. Due to the contact between the bearing ball and the outer shell of the bearing, the steel ball rolls with the minimum frictional resistance. Therefore, linear bearings have low friction and are relatively stable, not changing with the bearing speed, and can achieve stable linear motion with high sensitivity and accuracy. Widely used as sliding components in industrial machinery such as precision machine tools, textile machinery, food packaging machinery, printing machinery, etc.
Classification: Standard type, clearance adjustment type linear bearing, open type linear bearing, extended type linear bearing, universal type linear bearing

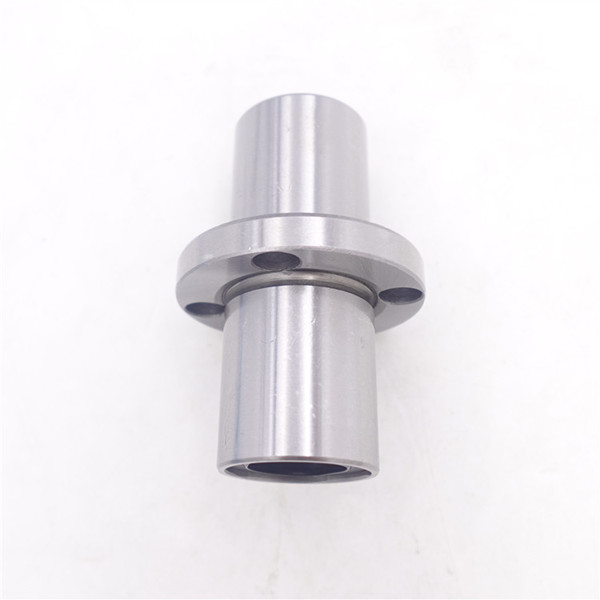

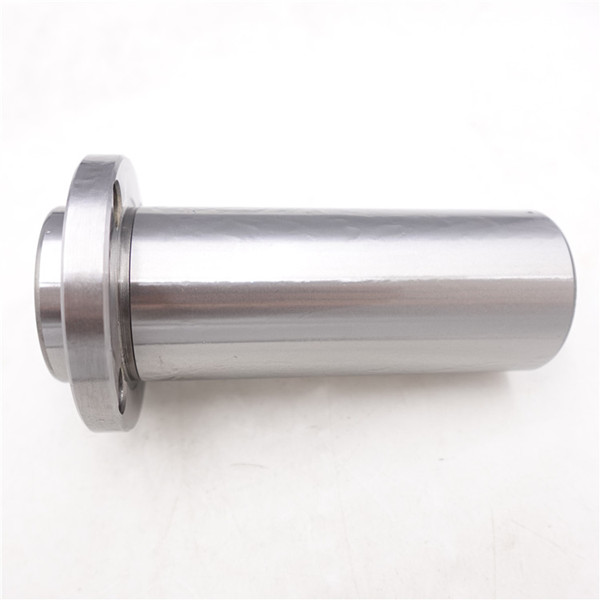

The flange type linear bearings can be divided into: circular flange type, flange type, elliptical flange type, guided circular flange type, guided flange type, guided elliptical flange type, and extended circular flange type.

linear motion slides flange

Maintenance:
Maintenance of metal linear motion slides bearings: lubrication and friction: Inject anti-corrosion oil into the interior of the linear bearings. If lubricating with grease, first remove the anti-corrosion oil with kerosene or organic solvent, air dry, and then add lubricating grease. If oil lubrication is used, it is not necessary to remove the anti-corrosion oil. According to temperature changes, ISO viscosity grade VG15-100 lubricating oil can be selected. Shaft lubrication can be supplied from the oil supply pipe or from the oil hole on the outer bearing seat.
Maintenance of plastic linear motion slides bearings: As the sliding film inside the plastic linear bearing is made of self-lubricating plastic, it does not require additional oil supply and maintenance during use; Moreover, due to the plastic linear bearing having a chip removal groove, even if the bearing or shaft is filled with dust, there is no need to maintain it. Dust will automatically be carried out of the chip removal groove during movement; Only when the sliding film wears out and fails, can the internal sliding film be replaced directly.
