Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
*High radial load carrying capacity
*High stiffness
*Low cross-sectional height
*Accommodate axial displacement in both directions
*Separable design

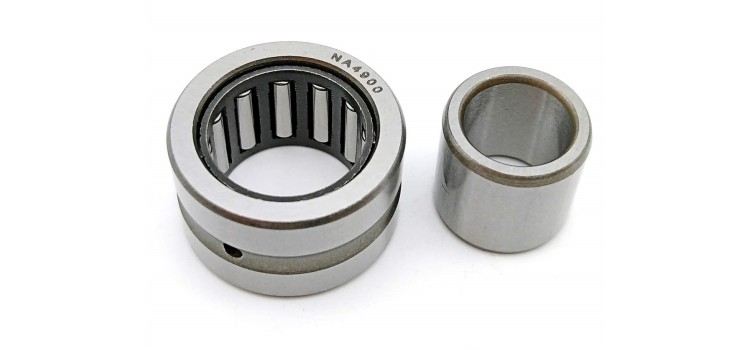

The NA4900 is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. The Inner Ring is separable from the Cage and Outer Ring, while the Outer Ring is fixed to the Cage and has an oil groove and an oil hole. Bearings with an Inner Ring are used when the shaft being used isn't heat-treated and finished by grinding. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 10X22X13mm.
NA4900 bearing details:
| Part Number | NA4900-XL |
| Brand: | LLH |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | Yes |
| Series | With Inner Ring |
| Bore Dia | 10 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 22 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width | 13 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension | 0.3 mm |
| F | 14 mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 2160 lbf |
| Static Radial Load | 2070 lbf |
| Max Speed (X1000 rpm) | 24.6 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 23 g |
