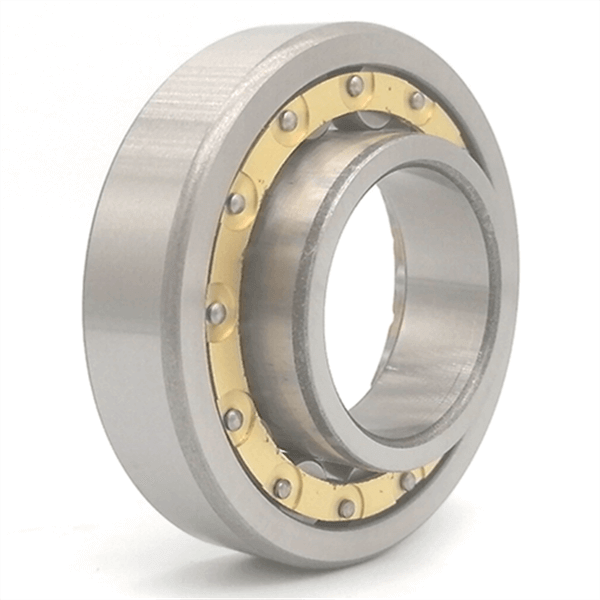

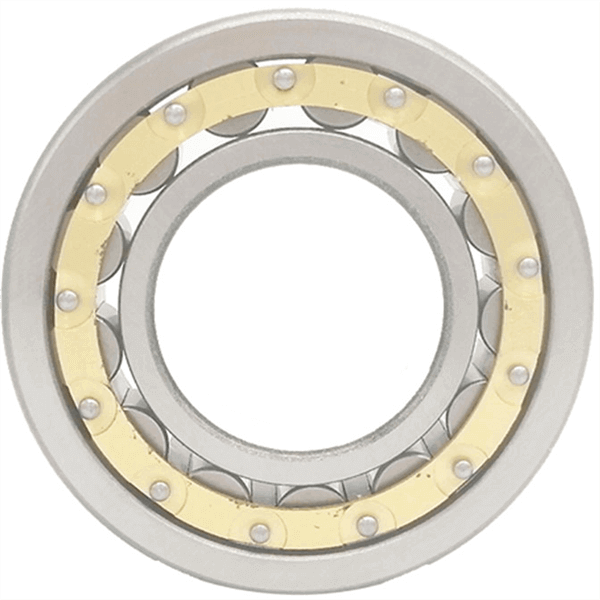

Nu1036 Dimensions, parameters and specifications
D (diameter) : 180 mm
OD (outer diameter) : 280 mm
B (thickness) : 46 mm
R (minimum) : 2.1
CR (rated dynamic load):356kN
COR (rated static load):503kN
Grease :2200rpm
Oil(Oil lubrication):2600rpm
B_TYPE (class): Cylindrical roller bearings
S_TYPE (Remarks): Single row cylindrical roller bearing
Nu1036 bearing application industry:
Chemical fiber machinery, CNC machine tools, smelting equipment, cold heading machine, cutting equipment, wire cutting, gas furnace, milling machine, roller furnace and special machine tools, pipe heating machine, die-casting machine, intermediate frequency power supply, electric spark, canned food processing equipment, lathes, condiment processing equipment, graphite heat exchanger, candy machine, flame arrester, etc.
Nu1036 belong to separate bearing, nu1036 easy to install and disassemble.nu1036 bearings can bear large radial loads and are suitable for use at high speed.
The allowable Angle error (inclination) between the inner ring axis and the outer ring axis of such bearings is very small, only 2 '~4'.Therefore, the machining accuracy of the shaft and the bearing seat is relatively high otherwise, it is easy to appear uneven load or stress concentration in the raceway contact parts.
The stress concentration can be reduced by modifying the roller or raceway contact bus.
In ordinary use, vibration is very sensitive to nu1036 bearing damage, spalling, indentation, rust, crack, wear and so on will be reflected in bearing vibration measurement.Therefore, the size of vibration can be measured by using a special bearing vibration measuring device (frequency analyzer, etc.), and the specific situation of abnormal can be inferred through the frequency distribution.The measured values are different due to the use conditions of nu1036 bearings or the installation position of sensors, etc., so it is necessary to analyze and compare the measured values of each machine in advance to determine the judgment standard.
If you need nu1036 bearing or need any other bearings, please also contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
