Single row cylindrical roller bearings NU1044 MA details

Famous Brand single row cylindrical roller bearings NU1044 MA are produced with Normal radial internal clearance as standard; the majority of the bearings are also available with C3 radial internal clearance and some with the appreciably greater C4 clearance.

The vast majority are single row cylindrical roller bearings with a cage. Famous Brand cylindrical roller bearings NU1044 MA are an excellent choice for applications where there are particularly heavy radial loads combined with high speeds, especially if there is a limited amount of axial displacement of the shaft with respect to the housing as a result of thermal elongation. As axial displacement takes place within the bearing, there is practically no increase in friction as the bearing rotates.

Single row Famous Brand cylindrical roller bearings NU1044 MA are separable, i.e. the ring with roller and cage assembly can be mounted independently of the other ring. This simplifies installation, particularly if an interference fit is required for both rings.

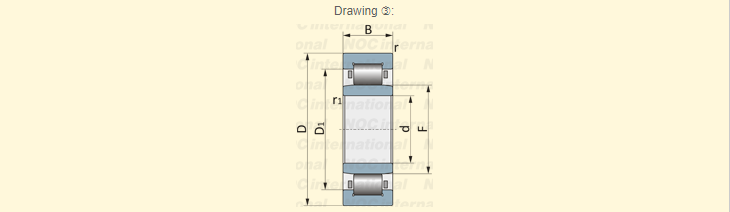

NU1044 MA bearing drawing and details:

Main dimensions:

d mm⁄inch D mm⁄inch B mm⁄inch D1 mm⁄inch Mass kg⁄lb ➁ 220.000 340.000 56.000 297.000 18.590 8.6614 13.3859 2.2047 11.6929 40.980

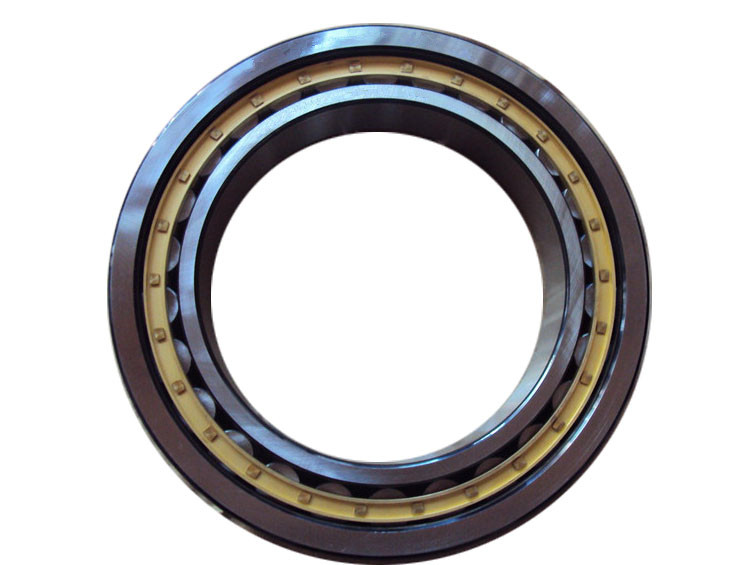

NU1044 MA bearing picture:

NU1044 MA bearing application:

mainly used for medium and large motors, generators, internal combustion engines, machine tool main shafts, speed reducers, loading, unloading and handling machineries, various industrial machineries.
