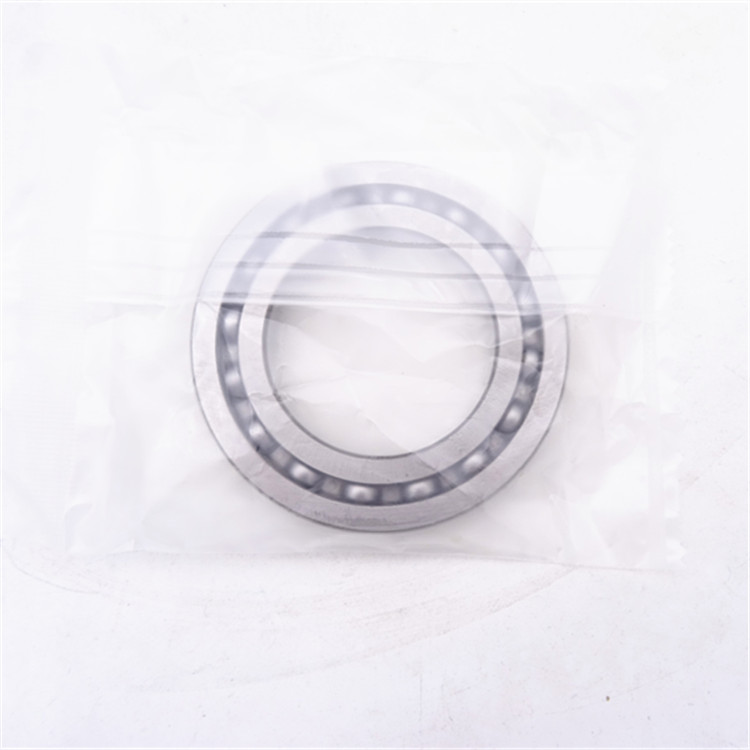

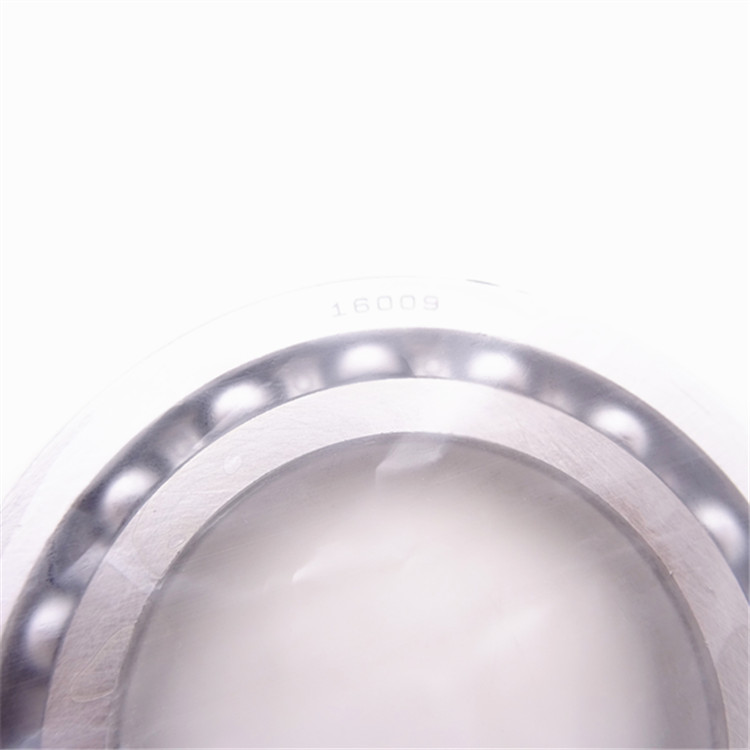

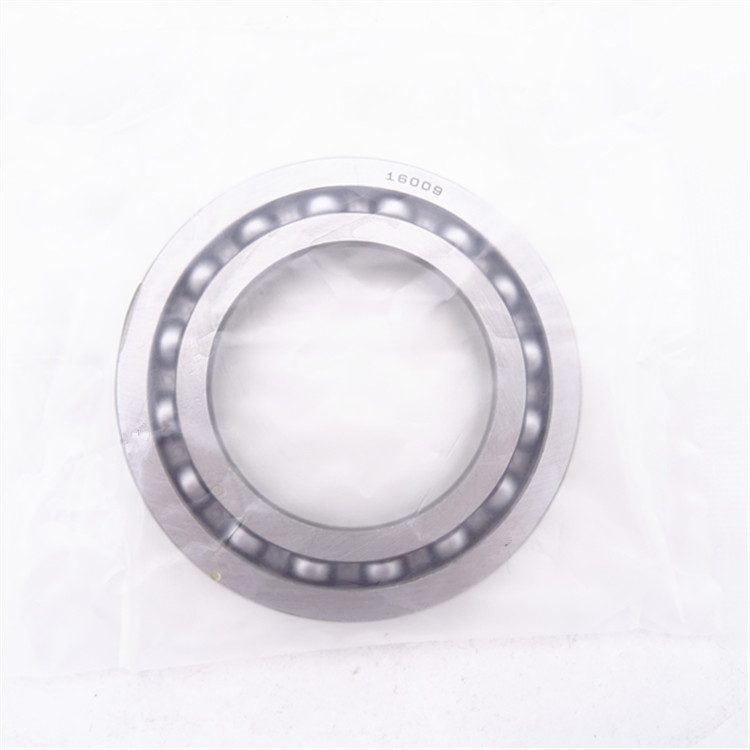

manufacturer wholesale high speed deep groove ball bearing 16009

manufacturer wholesale high speed deep groove ball bearing 16009


Product Specification:

  • Model 16009
  • Size 45x75x10 mm
  • Brand LLH or as your request
  • Original China or as your request
See Price

manufacturer wholesale high speed deep groove ball bearing 16009turbo ball bearing supplierBall bearing

Deep groove ball bearing is the most common type of rolling bearing.
The basic deep groove ball bearing consists of an outer ring, an inner circle, a set of steel balls and a set of maintenance frames.
Deep groove ball bearing type has a single row and double row two kinds, deep groove ball structure is sealed and open two kinds of structure, open without sealing structure refers to the bearing, seal type deep groove ball into dust seal and oil seal. The dust - proof sealing material is a sheet metal stamping, which simply prevents the dust from entering the bearing roller. The oil-proof type is the contact oil seal, which can effectively prevent the grease spillover inside the bearing.

Features

Deep groove ball bearing is the most widely used rolling bearing and is the most common type of rolling bearing.
It is characterized by small friction resistance and high speed, which can be used to bear the combined load of radial load or diameter and axial and axial load, and can also be used to bear the load of axial load.
Deep groove ball bearing structure is simple, it is easy to achieve high manufacturing precision compared with other types, so it is easy to make a series of mass production, and the manufacturing cost is low, and the use is very common.

Application:

Automotive: rear wheels, transmissions, electrical components
Electrical: General Motors, household appliances
Other: Meters, internal combustion engines, construction machinery, railway vehicles, handling machinery, agricultural machinery, various industrial machinery

bearingbearing 16009 deep groove ball bearing 16009 16009 factory

16004 bearing shipping 16004 bearing use bearing

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for high speed deep groove ball bearing 16009 ?

A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

3,Q: Do you provide samples for high speed deep groove ball bearing 16009 ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for high speed deep groove ball bearing 16009 ?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price for bearing?

A:  after we get your inquiry, usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of  high speed deep groove ball bearing 16009 ?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of your high speed deep groove ball bearing 16009 ?
A: Usually ≥1, According your demand.

9,Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with thin section deep groove ball bearings 16006 bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Bella
Email: skf@llhbearing.com
Whatsapp: +8615315596312
Tel/Wechat:+8615318805907

high speed bearing

Model d D B r Basic load rating Ball Limit speed Mass
Dynamic Static size Grease Oil
mm inch mm inch mm inch Cr Cor No. mm r/min r/min Kg(set)
16001 12 0.4724 28 1.1024 7 0.2775 0.3 5.1 2.4 8 4.763 26000 30000 0.019
16002 15 0.5906 32 1.2598 8 0.315 0.3 5.6 2.8 9 4.763 22000 26000 0.025
16003 17 0.6693 35 1.378 8 0.315 0.3 6.8 3.35 10 4.763 20000 24000 0.032
16004 20 0.7874 42 1.6535 8 0.315 0.3 7.9 4.5 10 5.556 18000 21000 0.051
16005 25 0.9843 47 1.8504 8 0.315 0.3 8.35 5.1 12 5.556 15000 18000 0.059
16006 30 1.1811 55 2.165 9 0.3543 0.3 11.2 7.4 12 6.35 13000 15000 0.091
16007 35 1.3779 62 2.4409 9 0.3543 0.3 11.7 8.2 14 6.35 12000 14000 0.107
16008 40 1.5748 68 2.6772 9 0.3543 0.3 12.6 9.65 15 6.35 10000 12000 0.125
16009 45 1.5748 75 2.6772 10 0.3937 0.6 12.9 10.5 16 6.35 9200 11000 0.171
16010 50 1.965 80 3.1496 10 0.3937 0.6 13.2 11.3 16 7.144 8400 9800 0.18
16011 55 2.1653 90 3.5433 11 0.433 0.6 18.6 15.3 16 7.938 7700 9000 0.258
16012 60 2.362 95 3.74 11 0.433 0.6 20 17.5 18 7.144 7000 8300 0.283
16013 65 2.559 100 3.937 11 0.433 0.6 20.5 18.7 20 7.144 6500 7700 0.307
16014 70 2.7559 110 4.3307 13 0.5118 0.6 24.4 22.6 15 9.525 6100 7100 0.441
16015 75 2.9528 115 4.5276 13 0.5118 0.6 25 24 16 9.525 5700 6700 0.464
16016 80 3.1496 125 4.9213 14 0.5512 0.6 25.4 25.1 15 11.112 5300 6200 0.597
16017 85 3.3465 130 5.1181 14 0.5512 0.6 25.9 26.2 16 11.112 5000 5900 0.626
16018 90 3.5433 140 5.5118 16 0.6299 1 33.5 33.5 15 12.7 4700 5600 0.848
16019 95 3.7402 145 5.7087 16 0.6299 1 34.5 35 16 12.7 4500 5300

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. .We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers. precision bearing
