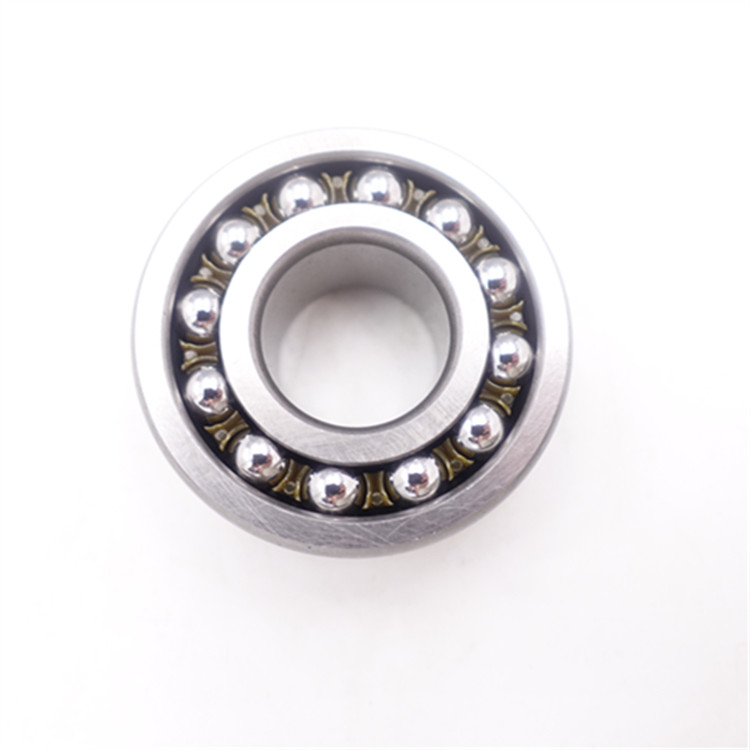

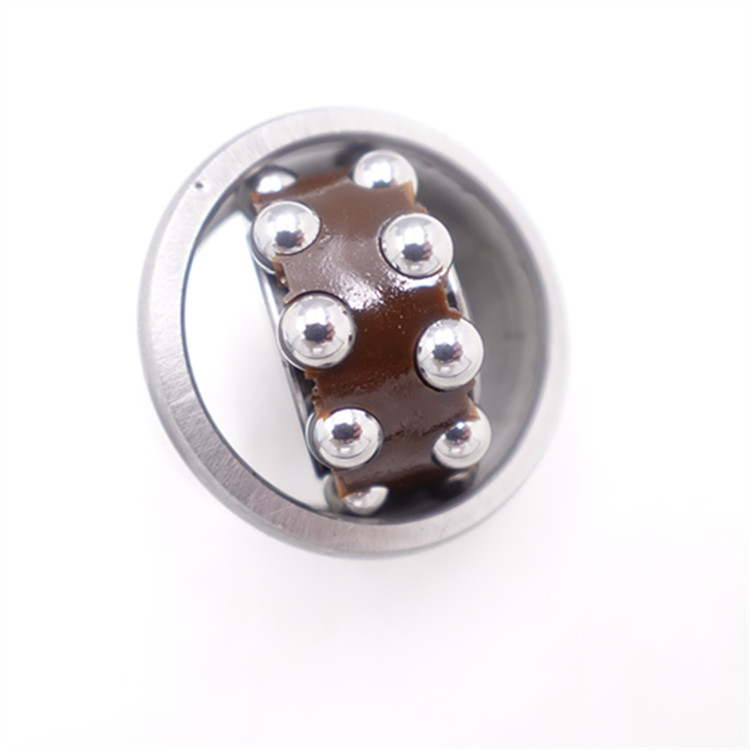

nylon cage spherical self aligning ball bearing 2204 bearing

nylon cage spherical self aligning ball bearing 2204 bearing

nylon cage spherical self aligning ball bearing 2204 bearing include two rows of balls, a cage, an inner ring, and an outer ring with a common concave sphered raceway.This type of bearings is self-aligning and insensitive to angular misalignments of the shaft relative to the housing. The bearings are produced in several design: open bearings with the basic design, sealed bearings, open bearings with an extended inner ring.The self alignning ball bearings have the lowest friction of all rolling bearings.The bearings are available with a cylindrical bore or with a tapered bore in certain size ranges. Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring.

nylon cage spherical self aligning ball bearing 2204 bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing.It is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.

nylon cage spherical self aligning ball bearing 2204 bearing features:

When shaft shell deflection occurs, they can be automatically adjusted without increasing the burden on the bearings. They can withstand higher radial load, but also bear certain axial load. This kind of bearing's outer ring raceway is spherical, aligning it with the performance, when the bend or tilt axis force leaves the center line of the inner and outer rings relative to the center line of slope less than 1 ° to 2.5 °, the bearings can still work.With two structures of bore cylindrical or tapered and retainers made of steel sheet or synthetic resins, the bearings' spherically formed outer ring raceways allowes for misalignment within 3 degree deflection between inner ring and outer ring so as to compensate concentricity and deflection errors.

Product line:

Mini-series: 10x, 12x, 13x

General Series: 12xx, 13xx, 22xx 23xx

Typical applications for nylon cage spherical self aligning ball bearing 2204 bearing:

Aligning ball bearings are widely applied to heavy loads and shock load, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, mill, mining, petroleum, paper, cement, squeezed sugar industry and general machinery.

Suffix definitions of Self-aligning ball bearings:

C3: radial clearance than ordinary clearance

K: 1/12 taper tapered bore

K30: 1/30 taper tapered bore

M: Ball guided machined brass cage

2RS: with both ends of closures

TV: ball guide glass fiber reinforced polyamide (nylon) solid cage

Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings.We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers.

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for nylon cage spherical self aligning ball bearing 2204 bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for nylon cage spherical self aligning ball bearing 2204 bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for nylon cage spherical self aligning ball bearing 2204 bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for nylon cage spherical self aligning ball bearing 2204 bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of nylon cage spherical self aligning ball bearing 2204 bearing?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need any models of bearings, please contact me!
