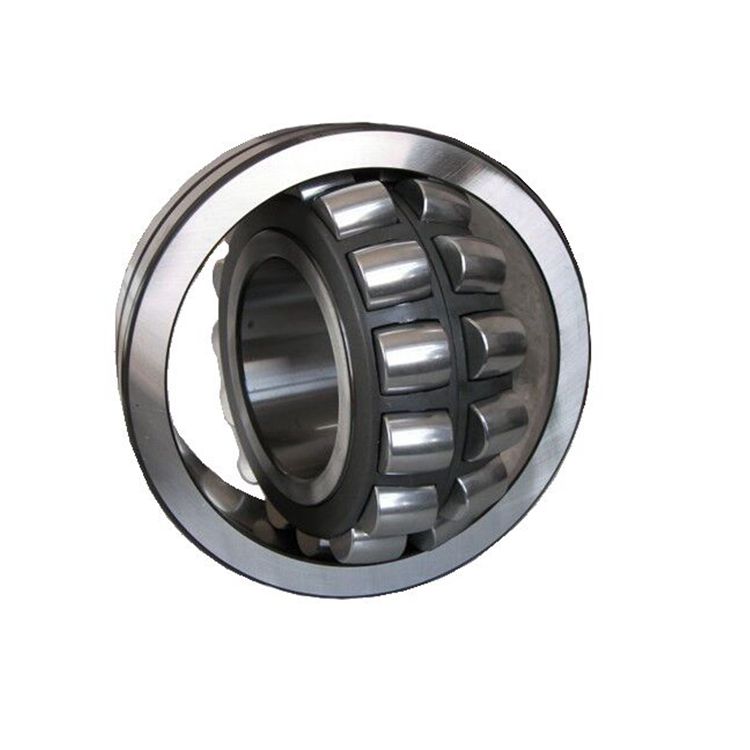

Spherical roller bearings have two rows of rollers.the outer ring has a shared spherical raceway,the inner ring has two raceways at an angle to the vertical axis of the bearing.

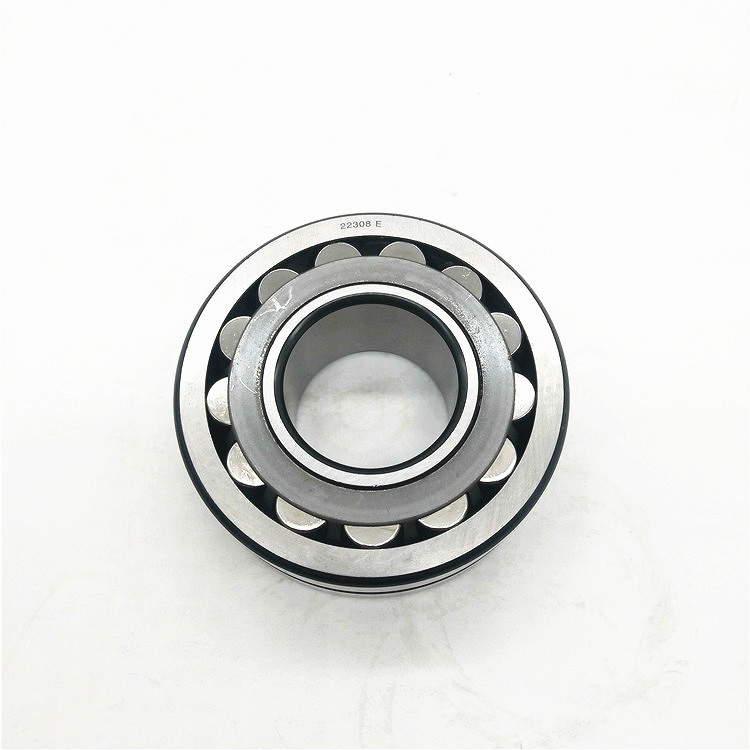

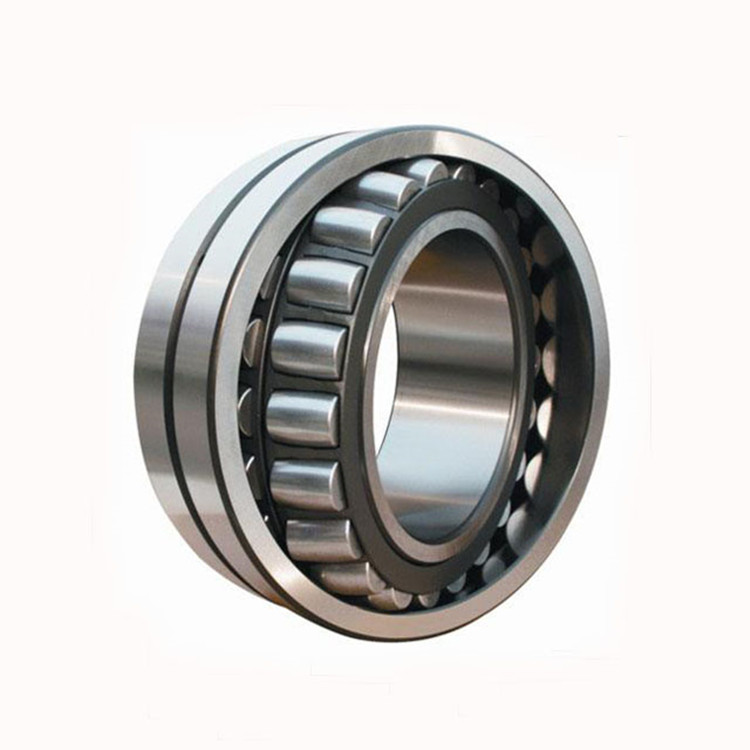

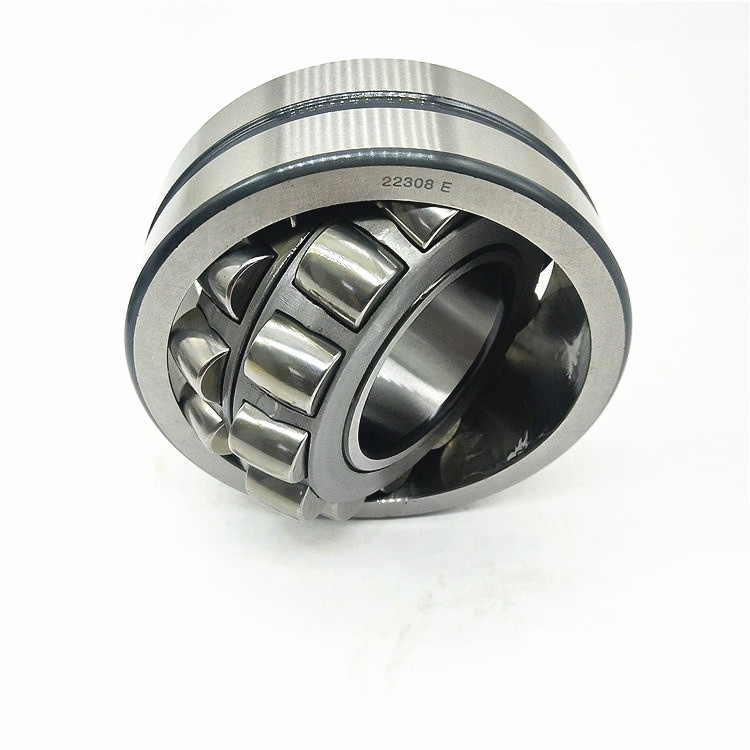

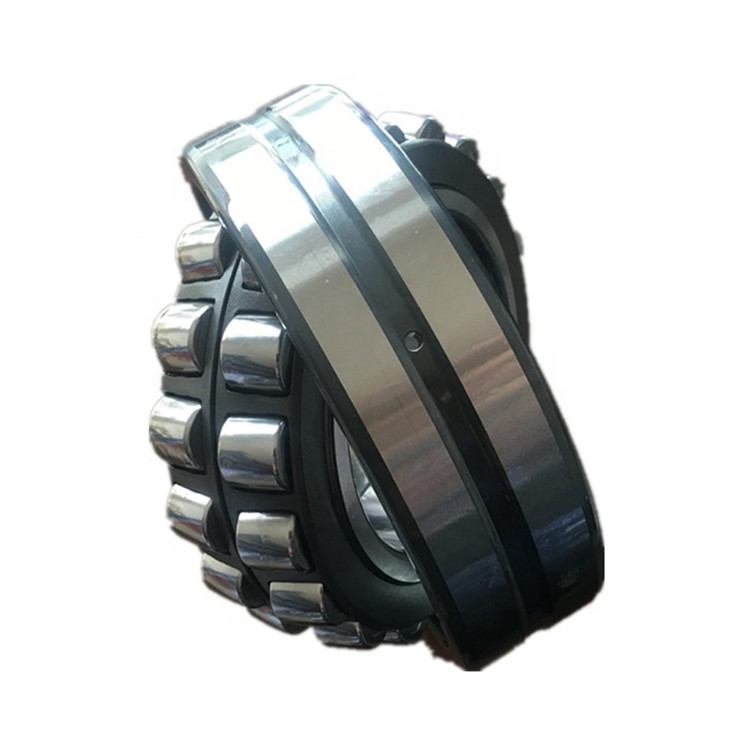

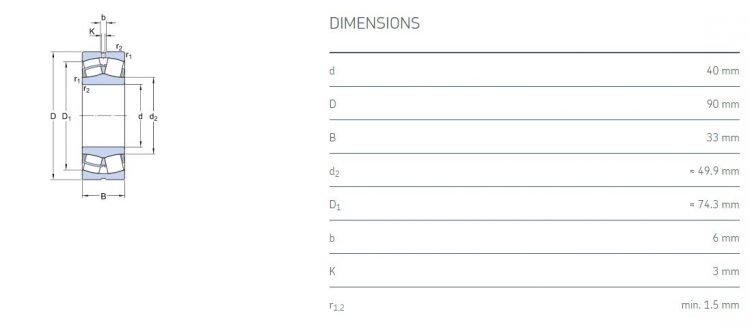

22308 e Spherical Roller Bearing Precision 22308 e Bearing
Spherical roller bearings have two rows of rollers.the outer ring has a shared spherical raceway,the inner ring has two raceways at an angle to the vertical axis of the bearing.This bearing combines the characteristics of a variety of designs,in many demanding applications,no other bearings can be completely replaced.Spherical roller bearings can be self-aligning,therefore, it is possible to withstand large alignment errors,such as the angular error between the shaft and the housing or the deflection of the shaft.Excellent design of spherical roller bearings in addition to high radial load carrying capacity outer,it can also withstand heavy axial loads acting in both directions.
Internal clearance:
Standard spherical roller bearings are common radial clearances.Most models offer a larger C3 group clearance.In addition, many models can also provide smaller C2 group clearance or larger C4 or C5 group clearance vibration mechanical spherical roller bearings for C4 group clearance.
Effect of operating temperature on bearing material:
All spherical roller bearings are specially heat treated to operate at high temperatures for extended periods of time without excessive dimensional changes. For example, run at +200 °C for 2,500 hours, or run at a higher temperature for a shorter period of time.
Axial load carrying capacity:
Due to the unique internal design of spherical roller bearings, it can withstand heavy axial loads or even pure axial loads.
Jinan Maolei Bearing Co., Ltd is a manufacturer and trader specialized in the research, development and production of bearings. is located in the "Spring City" Jinan, with convenient transportation.
The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.
We insist on the philosophies of "integrity" and "pragmatic & win-win business". We also adhere to the "people-oriented" and "advancing" enterprise spirit . "Quality first and customers utmost" is honored as our enterprise concept.
FAQ
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 22308 e precision 22308e bearing ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for 22308 e precision 22308e bearing ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for 22308 e precision 22308e bearing ?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for 22308 e precision 22308 e bearing ?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for 22308 e precision 22308 e bearing ?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of 22308 e precision 22308 e bearing ?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your 22308 e precision 22308 e bearing ?
A: Usually ≥1, According your demand.
9,Q: Will you check these 22308 e precision 22308 e bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the 22308 e precision 22308 e bearing ?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
Bearing Designations |
Boundary Domensions(mm) |
Basic Load Rating(kn) | Limiting Speed(r/min) | Weight(kg) | ||||
New Standard | d | D | B | Dynamic
Cr |
Static
Cor |
Grease | Oil | |
23020CC/W33 | 100 | 150 | 37 | 237 | 400 | 2400 | 3200 | 2.51 |
23022CC/W33 | 110 | 170 | 45 | 310 | 440 | 3400 | 4300 | 3.8 |
23024CC/W33 | 120 | 180 | 46 | 350 | 510 | 3200 | 4000 | 4.2 |
23026CC/W33 | 130 | 200 | 52 | 430 | 610 | 2800 | 3600 | 6.0 |
23028CC/W33 | 140 | 210 | 53 | 465 | 680 | 2600 | 3400 | 6.55 |
23030CC/W33 | 150 | 225 | 56 | 510 | 750 | 2400 | 3200 | 7.95 |
23032CC/W33 | 160 | 240 | 60 | 585 | 880 | 2400 | 3000 | 9.7 |
23034CC/W33 | 170 | 260 | 67 | 710 | 1060 | 2200 | 2800 | 13 |
23036CC/W33 | 180 | 280 | 74 | 830 | 1250 | 2000 | 2600 | 17 |
23038CC/W33 | 190 | 290 | 75 | 865 | 1340 | 1900 | 2400 | 18 |
23040CC/W33 | 200 | 310 | 82 | 1000 | 1530 | 1800 | 2200 | 23.3 |
23044CC/W33 | 220 | 340 | 90 | 1220 | 1860 | 1600 | 2200 | 30.5 |
23048CC/W33 | 240 | 360 | 92 | 1290 | 2080 | 1500 | 1900 | 33.5 |
23052CC/W33 | 260 | 400 | 104 | 1600 | 2550 | 1300 | 1700 | 48.5 |
23056CC/W33 | 280 | 420 | 106 | 1730 | 2850 | 1300 | 1600 | 52.5 |
23060CC/W33 | 300 | 460 | 118 | 2120 | 3450 | 1200 | 1500 | 71.5 |
23064CC/W33 | 320 | 480 | 121 | 2240 | 3800 | 1100 | 1400 | 78 |
23068CC/W33 | 340 | 520 | 133 | 2700 | 4550 | 1000 | 1300 | 105 |
23072CC/W33 | 360 | 540 | 134 | 2750 | 4800 | 950 | 1200 | 110 |
23076CC/W33 | 380 | 560 | 135 | 2900 | 5000 | 900 | 1200 | 115 |
23080CC/W33 | 400 | 600 | 148 | 3200 | 5700 | 850 | 1100 | 150 |
23084CC/W33 | 420 | 620 | 150 | 3400 | 6000 | 600 | 1100 | 155 |
23126CC/W33 | 130 | 210 | 64 | 560 | 780 | 2400 | 3200 | 8.8 |
23128CC/W33 | 140 | 225 | 68 | 630 | 900 | 2200 | 2800 | 10.5 |
23130CC/W33 | 150 | 250 | 80 | 830 | 1200 | 2000 | 2600 | 16.0 |
23132CC/W33 | 160 | 270 | 86 | 980 | 1370 | 1900 | 2400 | 20.5 |
23134CC/W33 | 170 | 280 | 88 | 1040 | 1500 | 1800 | 2400 | 22 |
23136CC/W33 | 180 | 300 | 96 | 1200 | 1760 | 1700 | 2200 | 28 |
23138CC/W33 | 190 | 320 | 104 | 1370 | 2080 | 1500 | 2000 | 35 |
23140CC/W33 | 200 | 340 | 112 | 1600 | 2360 | 1500 | 1900 | 43 |
23144CC/W33 | 220 | 370 | 120 | 1800 | 2750 | 1300 | 1700 | 53.5 |
23144CC/W33 | 220 | 370 | 120 | 2120 | 3350 | 1000 | 1400 | 67 |
23148CC/W33 | 240 | 400 | 128 | 2080 | 3200 | 1200 | 1600 | 66.5 |
23152CC/W33 | 260 | 440 | 144 | 2550 | 3900 | 1100 | 1400 | 90.5 |
23156CC/W33 | 280 | 460 | 146 | 2650 | 4250 | 1000 | 1300 | 97 |
23160CC/W33 | 300 | 500 | 160 | 3200 | 5100 | 950 | 1200 | 125 |
23164CC/W33 | 320 | 540 | 176 | 3750 | 6000 | 850 | 1100 | 165 |
23168CC/W33 | 340 | 580 | 190 | 4250 | 6800 | 800 | 1000 | 210 |
23172CC/W33 | 360 | 600 | 192 | 4300 | 6950 | 750 | 1000 | 220 |
23176CC/W33 | 380 | 620 | 194 | 4400 | 7100 | 560 | 1000 | 230 |
23180CC/W33 | 400 | 650 | 200 | 4650 | 7650 | 530 | 950 | 265 |
23184CC/W33 | 420 | 700 | 224 | 5600 | 9300 | 480 | 900 | 350 |
23188CC/W33 | 440 | 720 | 226 | 6000 | 10000 | 450 | 850 | 360 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. .We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
