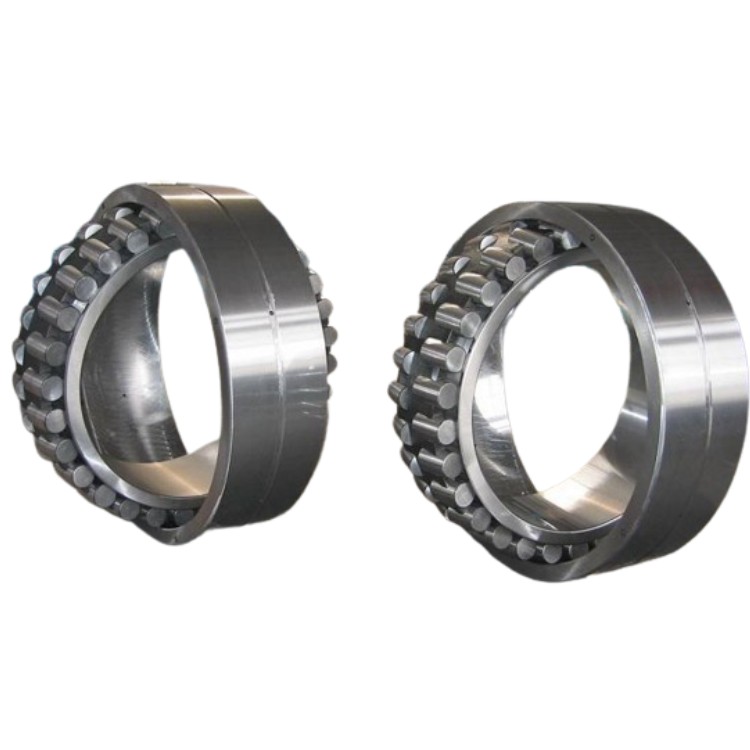

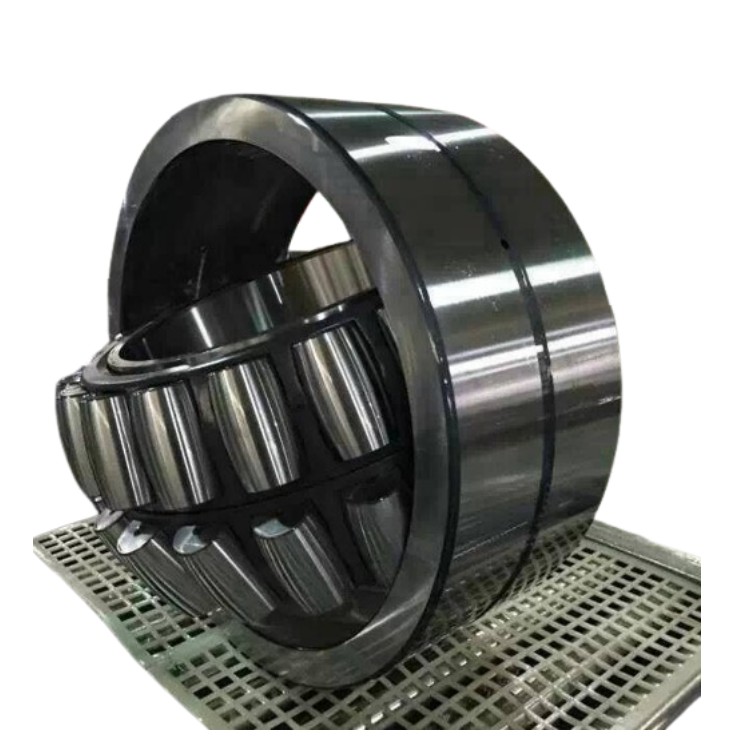

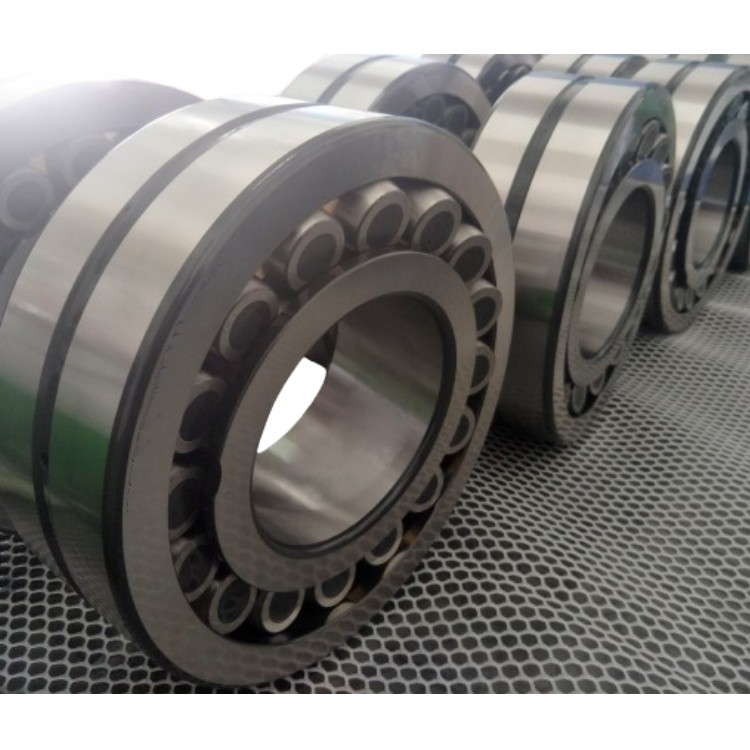

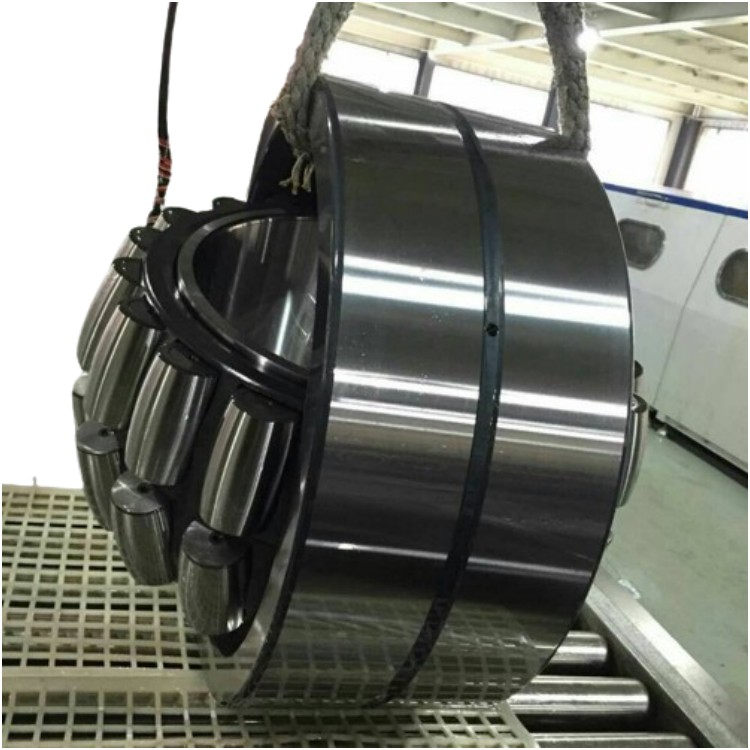

24160 CC W33 spherical roller bearing 24160CC/W33 size 300x500x200 mm
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 24160 cc w33?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for 24160 cc w33?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for 24160 cc w33?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of 24160 cc w33?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for 24160 cc w33?
A: Usually ≥1, According your demand.
9,Q: Will you check these bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
| d |
300 mm
|
Bore diameter |
|---|---|---|
| D |
500 mm
|
Outside diameter |
| B |
200 mm
|
Width |
| d2 |
≈338 mm
|
Shoulder diameter of inner ring |
| D1 |
≈422 mm
|
Shoulder/recess diameter of outer ring |
| b |
13.9 mm
|
Width of lubrication groove |
| K |
7.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.5 mm
|
Chamfer dimension |
| Bearings NO. | d/mm | D/mm | B/mm | C/kN | C0/kN | Weight/kg |
| 22326 CC/W33 | 130 | 280 | 93 | 1120 | 1320 | 29 |
| 22326 CCJA/W33VA405 | 130 | 280 | 93 | 1120 | 1320 | 29 |
| 22326 CCK/W33 | 130 | 280 | 93 | 1120 | 1320 | 28.5 |
| 22326 CCKJA/W33VA405 | 130 | 280 | 93 | 1120 | 1320 | 28.5 |
| 23028 CC/W33 | 140 | 210 | 53 | 465 | 680 | 6.55 |
| 23028 CCK/W33 | 140 | 210 | 53 | 465 | 680 | 6.35 |
| 24028 CC/W33 | 140 | 210 | 69 | 570 | 900 | 8.55 |
| 24028 CCK30/W33 | 140 | 210 | 69 | 570 | 900 | 8.4 |
| 24028-2CS2/VT143 | 140 | 210 | 69 | 570 | 900 | 8.55 |
| 23128 CC/W33 | 140 | 225 | 68 | 630 | 900 | 10.5 |
| 23128 CCK/W33 | 140 | 225 | 68 | 630 | 900 | 10 |
| 24128 CC/W33 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 24128 CCK30/W33 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 24128-2CS2/VT143 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 22228 CC/W33 | 140 | 250 | 68 | 710 | 900 | 14 |
| 22228 CCK/W33 | 140 | 250 | 68 | 710 | 900 | 13.5 |
| 23228 CC/W33 | 140 | 250 | 88 | 915 | 1250 | 19 |
| 23228 CCK/W33 | 140 | 250 | 88 | 915 | 1v50 | 18.5 |
