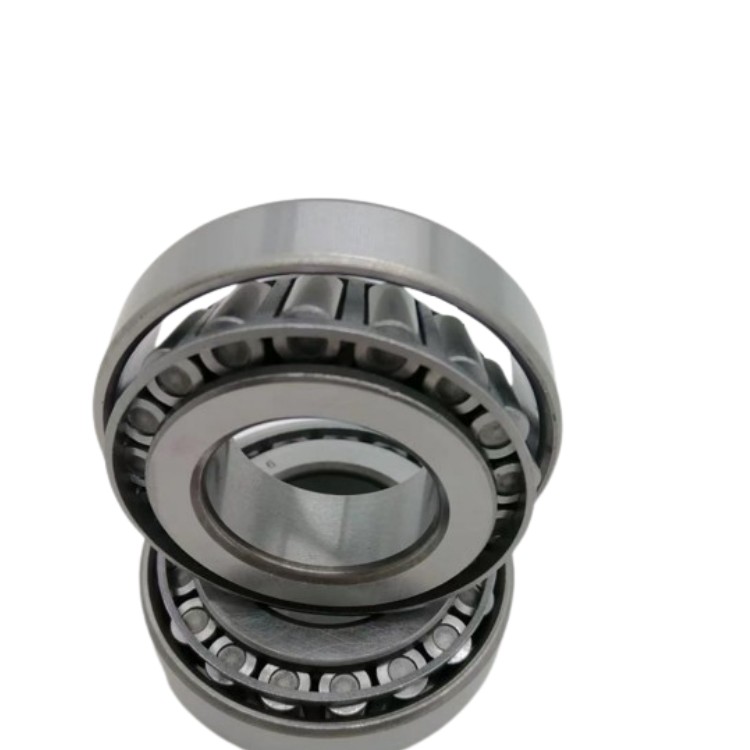

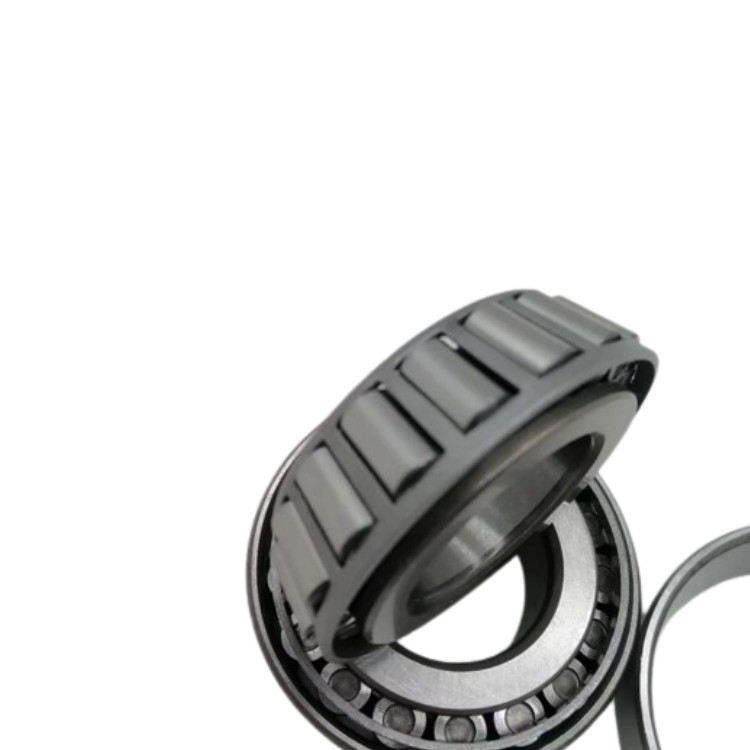

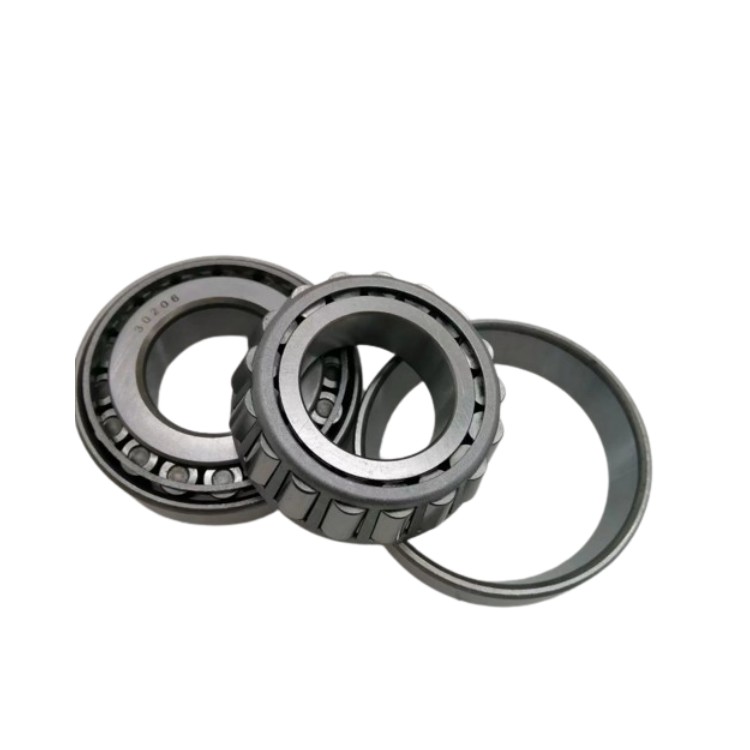

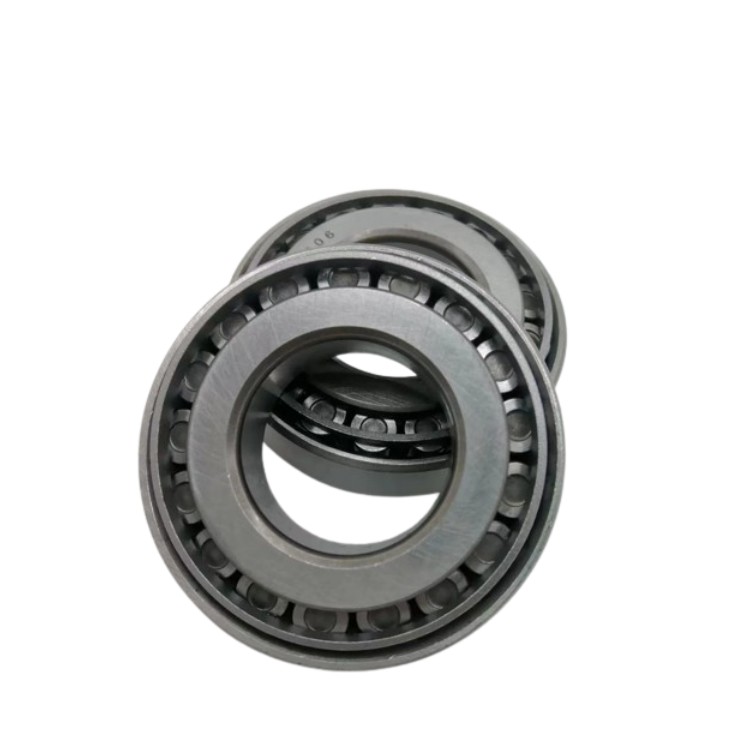

30206JR tapered roller bearing 30206 bearings size 30x62x17.25 mm
This 30206JR tapered roller wheel bearing is made of chrome steel and is open on both sides. It has a 30 mm inside diameter, a 62 mm outside diameter, and a 17.25 mm depth. The single-row bearing supports radial loads and axial loads in one direction. The races are made of chrome steel for durability and resistance to deformity under heavy loads. The bearing is open on both sides for lubricating in place. The static load rating is 41,500 newtons and the dynamic load rating is 44,800 newtons. The maximum speed with grease lubrication is 53,000 revolutions per minute (rpm). This tapered roller bearing is used in applications such as vehicles, construction equipment, and agricultural machinery, among others.
Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for w211ppb3 ?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for 30206jr tapered roller bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for 30206jr tapered roller bearing?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of 30206jr tapered roller bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check 30206jr tapered roller bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
Bore diameter | 30 mm |
Outside diameter | 62 mm |
Width, total | 17.25 mm |
Width, inner ring | 16 mm |
Width, outer ring | 14 mm |
Contact angle | 14.036 ° |
Bearing Number | Boundary Dimensions(mm) | R | R1 | Cr | Cor | a | Mass | |||||
d | D | T | B | C | (KN) | (KN) | (mm) | (Kg) | ||||
32205 | 7505E | 25 | 52 | 19.25 | 18 | 15 | 1 | 1 | 36.7 | 46.3 | 22.3 | 0.174 |
32206 | 7506E | 30 | 62 | 21.25 | 20 | 17 | 1 | 1 | 51.8 | 63.7 | 15.6 | 0.287 |
32207 | 7507E | 35 | 72 | 24.25 | 23 | 19 | 1.5 | 1.5 | 70.6 | 89.5 | 17.9 | 0.445 |
32208 | 7508E | 40 | 80 | 24.75 | 23 | 19 | 1.5 | 1.5 | 77.9 | 97.2 | 18.9 | 0.532 |
32209 | 7509E | 45 | 85 | 24.75 | 23 | 19 | 1.5 | 1.5 | 80.7 | 104 | 20.1 | 0.573 |
32210 | 7510E | 50 | 90 | 24.75 | 23 | 19 | 1.5 | 1.5 | 82.8 | 107.6 | 21 | 0.626 |
32211 | 7511E | 55 | 100 | 26.75 | 25 | 21 | 2 | 1.5 | 108 | 142.3 | 22.8 | 0.853 |
32212 | 7512E | 60 | 110 | 29.75 | 28 | 24 | 2 | 1.5 | 132.8 | 179.6 | 25 | 1.17 |
32213 | 7513E | 65 | 120 | 32.75 | 31 | 27 | 2 | 1.5 | 160.9 | 221.7 | 27.3 | 1.55 |
32214 | 7514E | 70 | 125 | 33.25 | 31 | 27 | 2 | 1.5 | 168.5 | 237.1 | 28.8 | 1.64 |
32215 | 7515E | 75 | 130 | 33.25 | 31 | 27 | 2 | 1.5 | 170.3 | 242.1 | 30 | 1.74 |
32216 | 7516E | 80 | 140 | 35.25 | 33 | 28 | 2.5 | 2 | 198.1 | 279 | 31.4 | 2.13 |
32217 | 7517E | 85 | 150 | 38.5 | 36 | 30 | 2.5 | 2 | 226.7 | 324 | 33.9 | 2.68 |
32218 | 7518E | 90 | 160 | 42.5 | 40 | 34 | 2.5 | 2 | 269.8 | 395.5 | 36.8 | 3.44 |
32219 | 7519E | 95 | 170 | 45.5 | 43 | 37 | 3 | 2.5 | 302.5 | 448.4 | 39.2 | 4.24 |
32220 | 7520E | 100 | 180 | 49 | 46 | 39 | 3 | 2.5 | 341 | 512 | 41.9 | 5.1 |
32221 | 7521E | 105 | 190 | 53 | 50 | 43 | 3 | 2.5 | 381 | 579.2 | 45 | 6.26 |
32222 | 7522E | 110 | 200 | 56 | 53 | 46 | 3 | 2.5 | 431.7 | 666.3 | 47.3 | 7.43 |
32224 | 7524E | 120 | 215 | 61.5 | 58 | 50 | 3 | 2.5 | 477.7 | 758.1 | 52.3 | 9.26 |
32226 | 7526E | 130 | 230 | 67.75 | 64 | 54 | 4 | 3 | 551.7 | 888.7 | 56.6 | 11.4 |
32228 | 7528E | 140 | 250 | 71.75 | 68 | 58 | 4 | 3 | 643.7 | 1049.3 | 60.7 | 14.4 |
32306 | 7606E | 30 | 72 | 28.75 | 27 | 23 | 1.5 | 1.5 | 81.6 | 96.4 | 18.9 | 0.562 |
32307 | 7607E | 35 | 80 | 32.75 | 31 | 25 | 2 | 1.5 | 99 | 118.3 | 20.4 | 0.763 |
32308 | 7608E | 40 | 90 | 35.25 | 33 | 27 | 2 | 1.5 | 115.7 | 147.8 | 23.3 | 1.04 |
32309 | 7609E | 45 | 100 | 38.25 | 36 | 30 | 2 | 1.5 | 145.3 | 189.4 | 25.6 | 1.4 |
32310 | 7610E | 50 | 110 | 42.25 | 40 | 33 | 2.5 | 2 | 177.5 | 236.1 | 28.2 | 1.89 |
32311 | 7611E | 55 | 120 | 45.5 | 43 | 35 | 2.5 | 2 | 203 | 271.4 | 30.4 | 2.37 |
32312 | 7612E | 60 | 130 | 48.5 | 46 | 37 | 3 | 2.5 | 226.7 | 303 | 32 | 2.9 |
32313 | 7613E | 65 | 140 | 51 | 48 | 39 | 3 | 2.5 | 259.6 | 349.8 | 34.3 | 3.51 |
32314 | 7614E | 70 | 150 | 54 | 51 | 42 | 3 | 2.5 | 298.9 | 408.5 | 36.5 | 4.34 |
