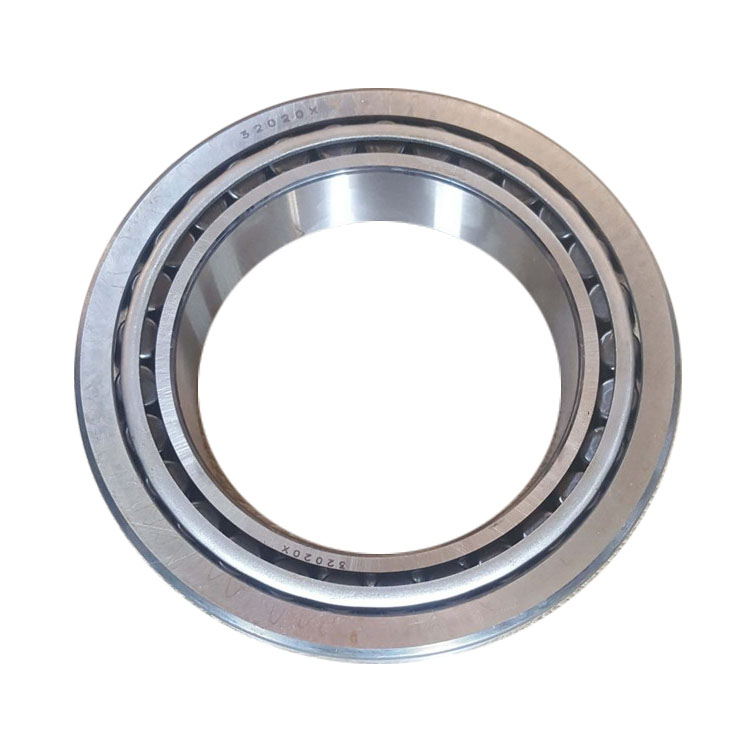

32020 x tapered roller bearing components 100x150x32mm

Tapered roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.


Product Specification:

  • Model 32020
  • Size 100x150x32mm
  • Brand LLH or as your request
  • Original China or as your request
See Price

32020 x tapered roller bearing components 100x150x32mm

32020 x taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.

32020 x taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.

32020 x taper roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.

32020 x taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.

32020 x taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separatable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of functions.

30202 bearing 32020 x tapered roller bearing
32020 x roller bearing 32020 x bearing

Our Service:

1.High speed, High Precision, Low Noise, Long Service Life

2.Wide Array of Applications

3.Large Inventories

4.Small order accept

5.Competitive Prices and High Quality

6.Various Brands

7.Require little maintenance

8. OEM is supported

9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

FAQ

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for 32020 x tapered roller bearing components?

A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

3,Q: Do you provide samples for 32020 x tapered roller bearing components? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for 32020 x tapered roller bearing components?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price for 32020 x tapered roller bearing components?

A:  after we get your inquiry, usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of 32020 x tapered roller bearing components?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of your 32020 x tapered roller bearing components?
A: Usually ≥1, According your demand.

9,Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with the 32020 x tapered roller bearing components?
A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

Product Name
Hot Sale 32020 high speed tapered roller bearing
Model
32020
Inside diameter
100mm
Outer diameter
150mm
Thickness
32mm
Material
Chrome Steel
Weight
1.85 kg

high speed bearing

model number d(mm) D(mm) T(mm) B(mm) C(mm) kg
30204 20 47 15.25 14 12 0.126
30205 25 52 16.25 15 13 0.154
30206 30 62 17.25 16 14 0.231
30207 35 72 18.25 17 15 0.331
30208 40 80 19.75 18 16 0.442
30209 45 85 20.75 19 16 0.474
30210 50 90 21.75 20 17 0.529
30211 55 100 22.75 21 18 0.713
30212 60 110 23.75 22 19 0.904
30213 65 120 24.75 23 20 1.13
30214 70 125 26.75 24 21 1.26
30215 75 130 27.25 25 22 1.36
30216 80 140 28.25 26 22 1.67
30217 85 150 30.5 28 24 2.06
30218 90 160 32.5 30 26 2.54
30219 95 170 34.5 32 27 3.04
30220 100 180 37 34 29 3.72
30304 20 52 16.25 15 13 0.165
30305 25 62 18.25 17 15 0.263

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.precision bearing
