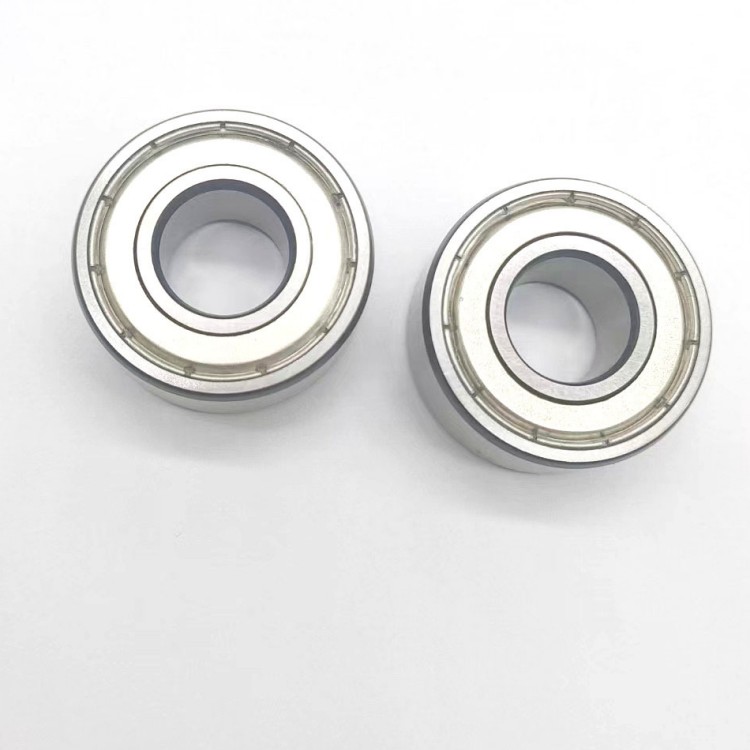

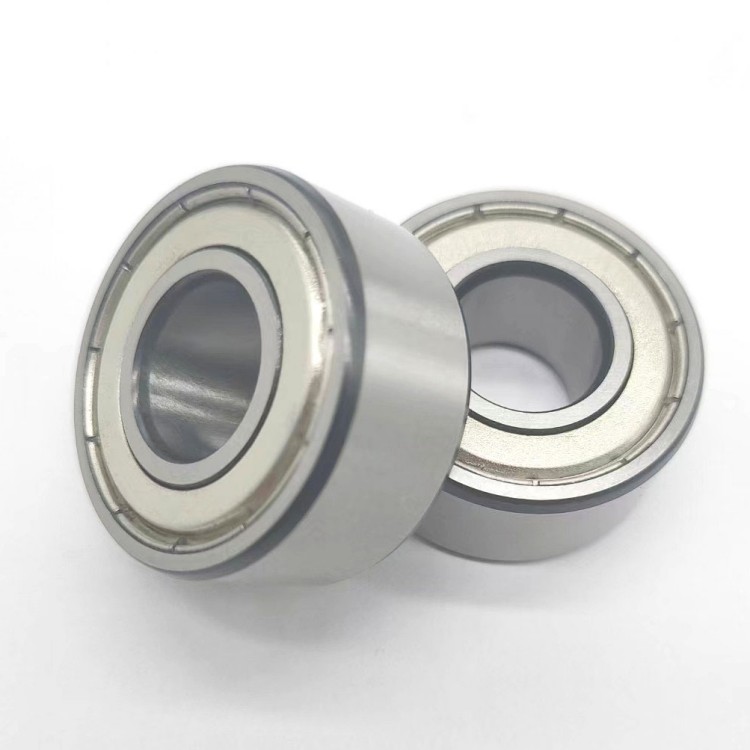

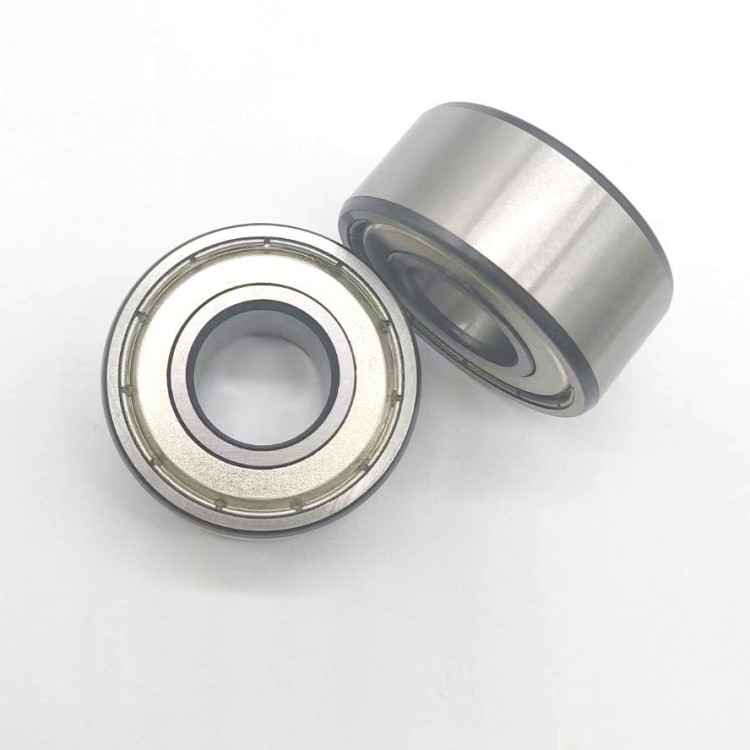

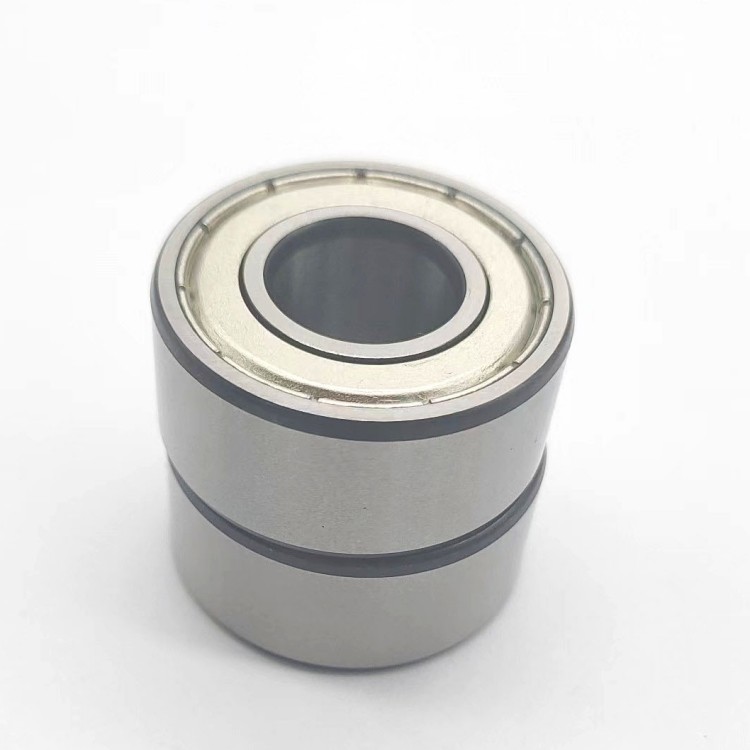

5202 ZZ Bearing 5202-2Z 5202ZZ Double Row Angular Contact Ball Bearing Size 15x35x15.9mm
5202-ZZ Double Row Ball Bearing with Metal Shields on both sides and is pre-lubricated with Grease allowing it to be ready for use upon delivery. 5202-ZZ is a Chrome Steel 5200 Series Light Duty Double Row Ball Bearing that is ideal for high speed applications and moderate loads. Our 5200 Series Metric Double Row Ball Bearings are available either open, metal shielded, or with rubber sealed closures and come pre-lubricated with either grease or light oil.
5202-ZZ Double Row Ball Bearing is used in a variety of Commercial and Industrial Applications including Pumps and Compressors, Automotive Drives, Gearboxes, Wind Turbines, Printing Machines, Agricultural Machinery, Conveying Equipment, Electric Motors, CNC Machinery, Trucks, Mining Equipment, Robotics, Dental Equipment, among others.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 5202 zz bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 5202 zz bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for 5202 zz bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of 5202 zz bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the 5202 zz bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
| If you need any brand bearings or any models of bearings, please contact me! Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
 |
| Bore Dia (d) | 15.000 | mm |
| Outer Dia (D) | 35.000 | mm |
| Radius (min) (rs) | 0.60 | mm |
| Width (B) | 15.875 | mm |
| Max. Shaft Shoulder Dia. Inner (Ui) | 19.0 | mm |
| Min. Housing Shoulder Dia., Outer (Uo) | 31.00 | mm |
| Weight (g) | 68.00 | grams |
| Bearing Number | d | D | B | Mass |
| (mm) | (Kg) | |||
| 5200 | 10 | 30 | 14.3 | 0.05 |
| 5201 | 12 | 32 | 15.9 | 0.06 |
| 5202 | 15 | 35 | 15.9 | 0.07 |
| 5302 | 15 | 42 | 19 | 0.11 |
| 5203 | 17 | 40 | 17.5 | 0.09 |
| 5303 | 17 | 47 | 22.2 | 0.14 |
| 5204 | 20 | 47 | 20.6 | 0.12 |
| 5304 | 20 | 52 | 22.2 | 0.23 |
| 5205 | 25 | 52 | 20.6 | 0.19 |
| 5305 | 25 | 62 | 25.4 | 0.34 |
| 5206 | 30 | 62 | 23.8 | 0.29 |
| 5306 | 30 | 72 | 30.2 | 0.51 |
| 5207 | 35 | 72 | 27 | 0.43 |
| 5307 | 35 | 80 | 34.9 | 0.79 |
| 5208 | 40 | 80 | 30.2 | 0.57 |
| 5308 | 40 | 90 | 36.5 | 1.05 |
| 5209 | 45 | 85 | 30.2 | 0.62 |
| 5309 | 45 | 100 | 39.7 | 1.4 |
| 5210 | 50 | 90 | 30.2 | 0.67 |
| 5310 | 50 | 110 | 44.4 | 1.95 |
| 5211 | 55 | 100 | 33.3 | 0.96 |
| 5311 | 55 | 120 | 49.2 | 2.3 |
| 5212 | 60 | 110 | 36.5 | 1.35 |
| 5312 | 60 | 130 | 54 | 3.15 |
| 5213 | 65 | 120 | 38.1 | 1.65 |
| 5313 | 65 | 140 | 58.7 | 3.85 |
| 5214 | 70 | 125 | 39.7 | 1.8 |
| 5314 | 70 | 150 | 63.5 | 4.9 |
| 5215 | 75 | 130 | 41.3 | 1.9 |
| 5216 | 80 | 140 | 44.4 | 2.5 |
| 5217 | 85 | 150 | 49.2 | 3.4 |
