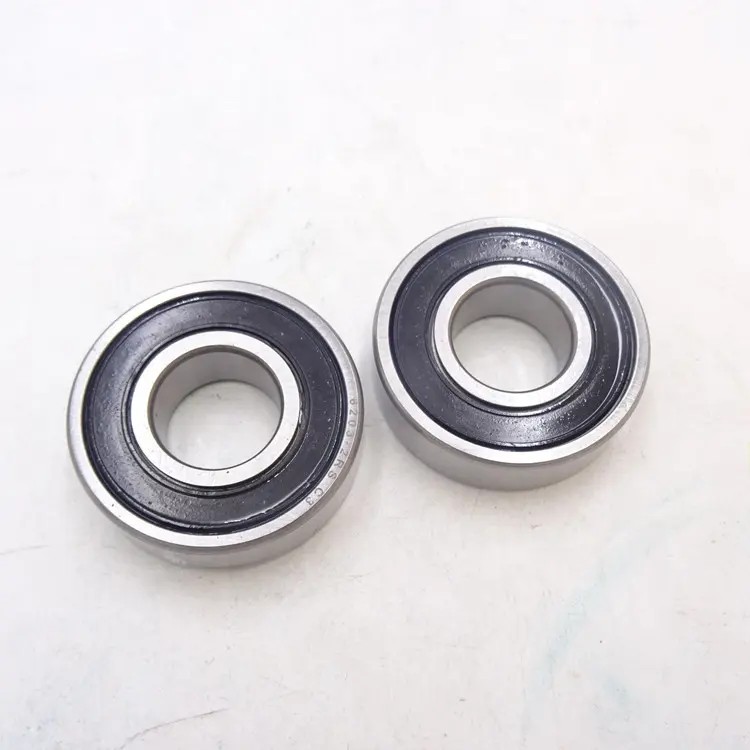

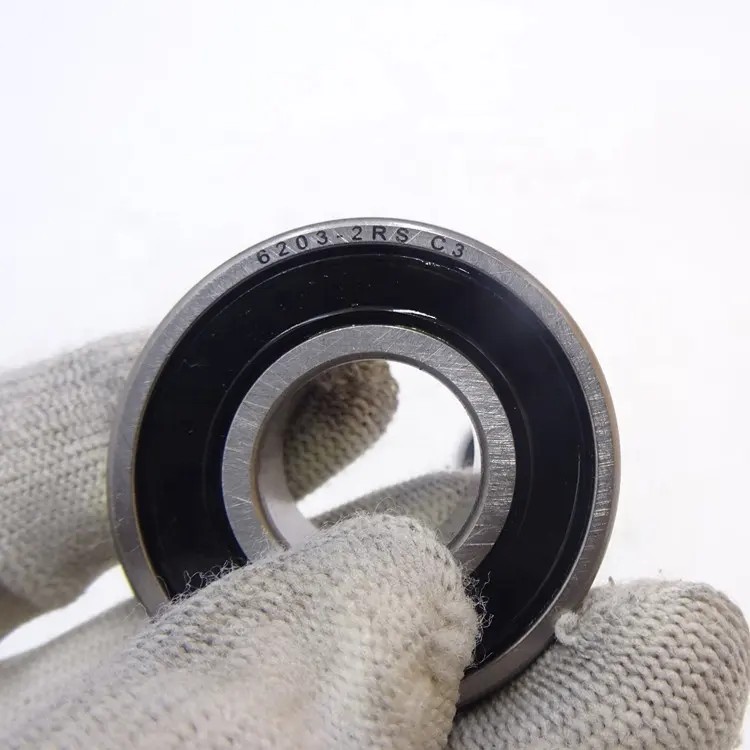

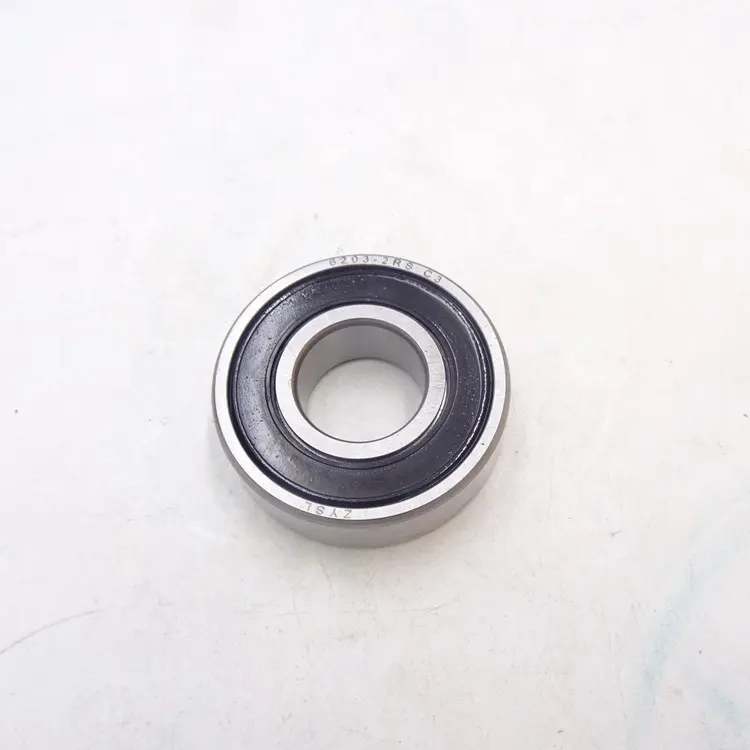

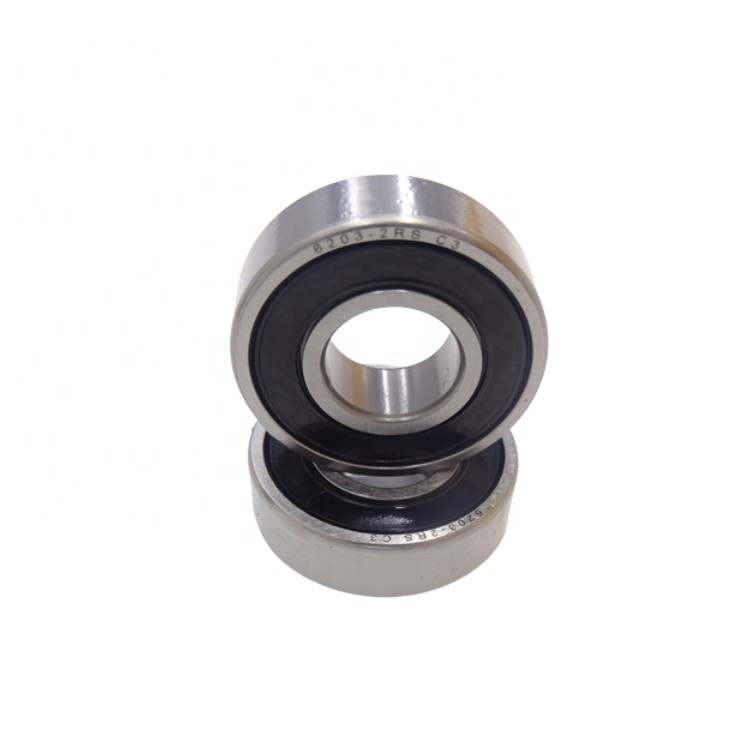

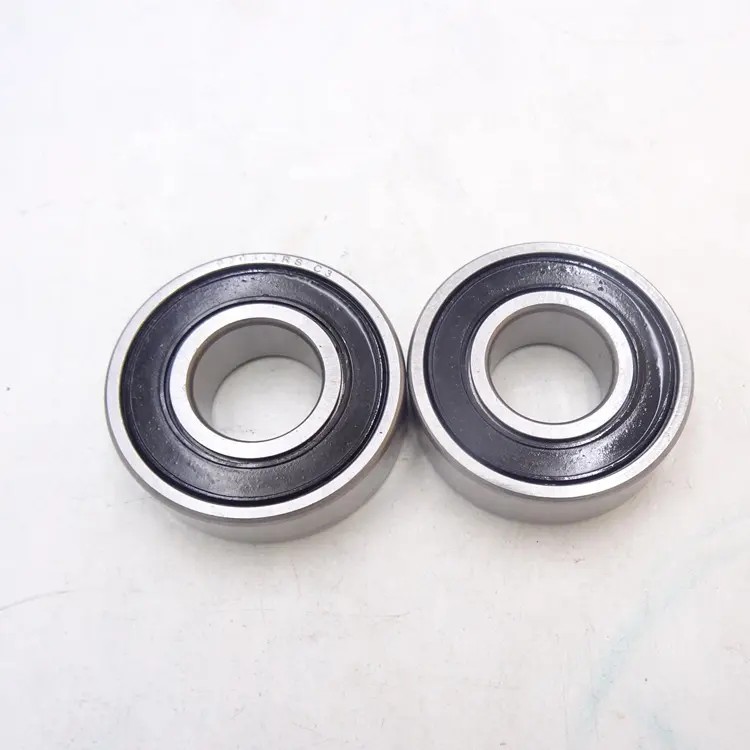

6203 2RS bearing 17x40x12 rubber sealed deep groove ball bearings
6203-2RS bearing is a Radial Ball Bearing both sides Rubber Sealed High Quality and is pre-lubricated with grease allowing it to be ready for use upon delivery.
Sizes: ID 17mm x OD 40mm x W 12mm
Interchange Numbers: CG425, 6203RS, 6203LLU, 6203LLB, 6203DDU, 6203VV, 6203.2RSJ1, 6203EE, 6203.2RU, 6203LHX3, 203PP, 203KSZZ, 6203-2NSL, 99203, 6L025, 5972K44, 6153K77, 6203-2NSE, 6203.2RSR, 6203-2RS, 62032RS
Applications: 6203-2RS Metric Ball Bearings are used in a range of applications from Electric Motors to Washing machines, Belt Drives, Compressors, Pumps, Turbines, Printing And Textile Machines, Automotive, Conveyors, Light-duty Industrial Applications, Engines, Small Spindles, Food processing, Power Transmission, Rolling Mills, Among Others.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 6203 2rs bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 6203 2rs bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for 6203 2rs bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of 6203 2rs bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the 6203 2rs bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
| If you need any brand bearings or any models of bearings, please contact me! Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
 |
| d |
17 mm
|
Bore diameter |
|---|---|---|
| D |
40 mm
|
Outside diameter |
| B |
12 mm
|
Width |
| d2 |
≈21.75 mm
|
Recess diameter |
| D2 |
≈34.98 mm
|
Recess diameter |
| r1,2 |
min.0.6 mm
|
Chamfer dimension |
|
Model
|
Inner d
|
Out D
|
Thickness B
|
Net Weight
|
|
6000
|
10.00
|
26.00
|
8.00
|
0.02
|
|
6001
|
12.00
|
28.00
|
8.00
|
0.02
|
|
6002
|
15.00
|
32.00
|
9.00
|
0.031
|
|
6003
|
17.00
|
35.00
|
10.00
|
0.039
|
|
6004
|
20.00
|
42.00
|
12.00
|
0.07
|
|
6005
|
25.00
|
47.00
|
12.00
|
0.08
|
|
6006
|
30.00
|
55.00
|
13.00
|
0.117
|
|
6007
|
35.00
|
62.00
|
14.00
|
0.152
|
|
6008
|
40.00
|
68.00
|
15.00
|
0.189
|
|
6009
|
45.00
|
75.00
|
16.00
|
0.242
|
|
6010
|
50.00
|
80.00
|
16.00
|
0.262
|
|
6011
|
55.00
|
90.00
|
18.00
|
0.382
|
|
6012
|
60.00
|
95.00
|
18.00
|
0.399
|
|
6013
|
65.00
|
100.00
|
18.00
|
0.416
|
|
6014
|
70.00
|
110.00
|
20.00
|
0.586
|
|
6015
|
75.00
|
115.00
|
20.00
|
0.617
|
|
6016
|
80.00
|
125.00
|
22.00
|
0.858
|
|
6017
|
85.00
|
130.00
|
22.00
|
0.88
|
|
6018
|
90.00
|
140.00
|
24.00
|
1.16
|
|
6019
|
95.00
|
145.00
|
24.00
|
1.18
|
|
6020
|
100.00
|
150.00
|
24.00
|
1.22
|
|
6021
|
105.00
|
160.00
|
26.00
|
1.56
|
|
6202
|
15.00
|
35.00
|
11.00
|
0.045
|
|
6203
|
17.00
|
40.00
|
12.00
|
0.065
|
|
6204
|
20.00
|
47.00
|
14.00
|
0.103
|
|
6205
|
25.00
|
52.00
|
15.00
|
0.128
|
|
6206
|
30.00
|
62.00
|
16.00
|
0.203
|
|
6207
|
35.00
|
72.00
|
17.00
|
0.285
|
|
6208
|
40.00
|
80.00
|
18.00
|
0.373
|
|
6209
|
45.00
|
85.00
|
19.00
|
0.42
|
|
6210
|
50.00
|
90.00
|
20.00
|
0.467
|
|
6211
|
55.00
|
100.00
|
21.00
|
0.609
|
|
6212
|
60.00
|
110.00
|
22.00
|
0.804
|
|
6213
|
65.00
|
120.00
|
23.00
|
1.04
|
|
6214
|
70.00
|
125.00
|
24.00
|
1.12
|
|
6215
|
75.00
|
130.00
|
25.00
|
1.2
|
|
6216
|
80.00
|
140.00
|
26.00
|
1.45
|
|
6217
|
85.00
|
150.00
|
28.00
|
1.83
|
|
6218
|
90.00
|
160.00
|
30.00
|
2.18
|
|
6219
|
95.00
|
170.00
|
32.00
|
2.64
|
|
6220
|
100.00
|
180.00
|
34.00
|
3.15
|
|
6221
|
105.00
|
190.00
|
36.00
|
3.82
|
|
6222
|
110.00
|
200.00
|
38.00
|
4.45
|
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. bear We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
