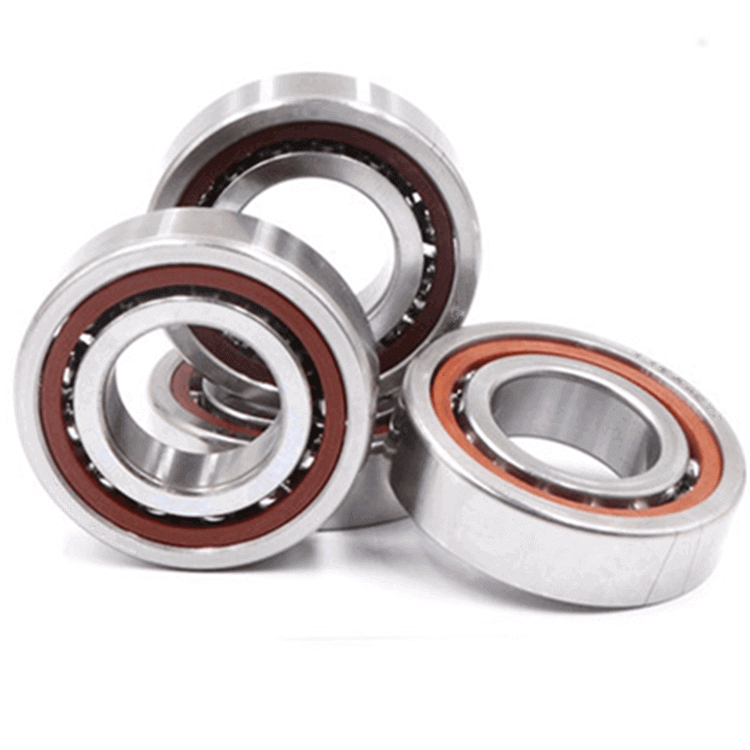

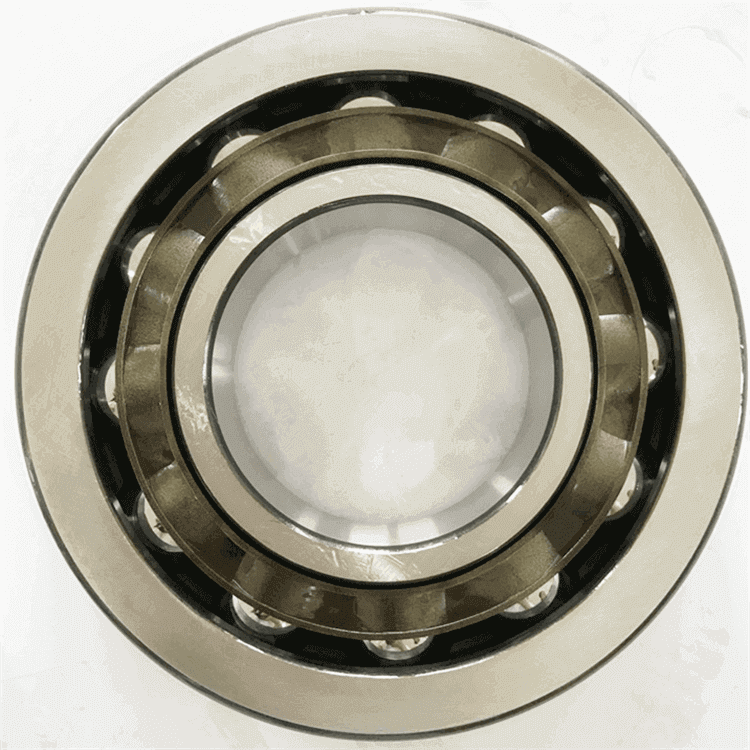

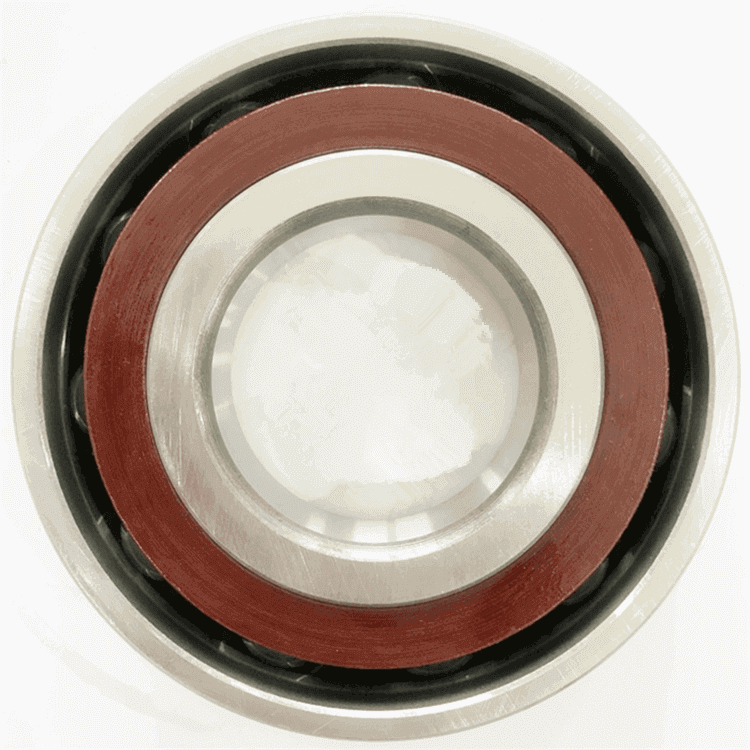

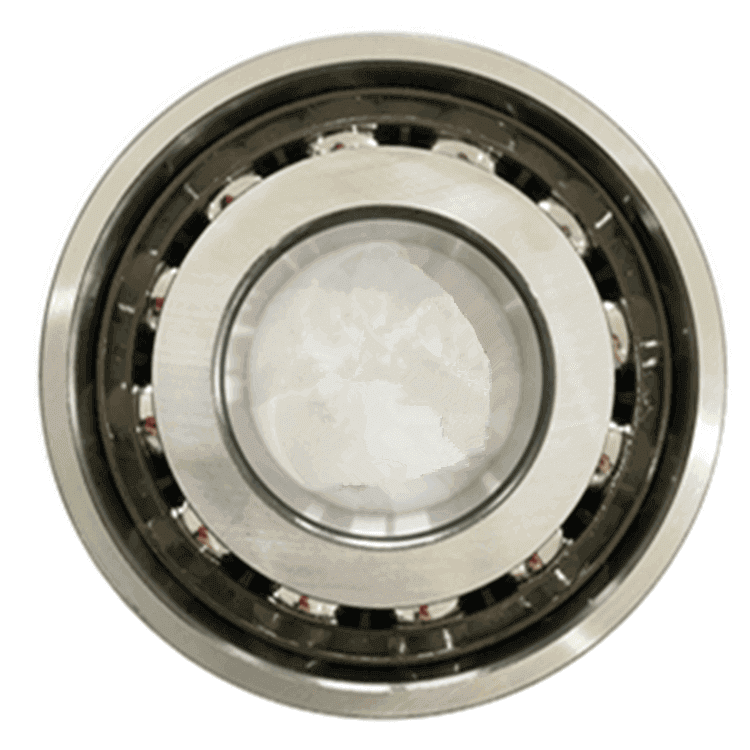

7014 bearing high quality angular contact ball bearing

7014 bearing high quality angular contact ball bearing have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle.The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.

7014 bearing high quality angular contact ball bearing better support "combined loads" (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each. The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load.

Types:

Angular contact ball bearings are produced in a wide variety of designs and sizes.Those commonly used and included in this catalogue are:

1.Single-row angular contact ball bearings

Axial load in single direction can be sustained. While supporting pure radial load, the bearings must be installed and used in pairs since the line of action of the rolling element load is not in the same plane as that of the radial one, resulting in inner separate force.

2.Double-row angular contact ball bearings

This is basically a back-to-back mounting of two single-row angular contact ball bearings, but their inner and outer rings are each integrated into one. Axial loads in both directions can be sustained, and the capacity to sustain moments is good. This type is used as fixed-end bearings. Their cages are pressed steel.

3.Four-point angular contact ball bearings

The inner ring is split radially into two pieces. Their design allows one bearing to sustain significant axial loads in either direction. The contact angle is 35°, so the axial load capacity is high. This type is suitable for carrying pure axial loads or combined loads where the axial loads are high. The cages are made of machined brass.

Typical applications:

7014 bearing high quality angular contact ball bearing are mainly used for steel industry,mining&construction,papermaking machinery, wind turbines,semiconductors,machine tools,gearboxes,electric motors,pumps&compressors,injection moldingmachines.

7014 bearing high quality angular contact ball bearing features:

1.Load capacities are higher than deep groove ball bearing of same dimensions.

2.Used for bearing radial-axial combined loads or pure thrust loads.

3.Low operating friction and high limiting speed.

7014 bearing high quality angular contact ball bearing advantages:

1.Low friction, almost noiseless and high rolling speed

2.Easy to install

3.Simple structure ensures fast equipment

4.Optimised internal design

5.High load ratings

6.Increased limiting speed

7.High strength ball guided brass cage

8.High dimensional and running accuracy

9.Narrow axial clearances or preloads range

10.Universal facing in standard

Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings.We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers.

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for 7014 bearing high quality angular contact ball bearing?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3,Q: Do you provide samples for 7014 bearing high quality angular contact ball bearing? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for 7014 bearing high quality angular contact ball bearing?

A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price?

A:  after we get your inquiry,usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of 7014 bearing high quality angular contact ball bearing?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of your bearing?

A: Usually ≥1, According your demand.

9,Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with the 7014 bearing high quality angular contact ball bearing?

A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need 7014 bearing high quality angular contact ball bearing or any models of bearings, please contact me!

Contact: Leon

Email: nsk@zyslbearing.com

Skype: lh19881023

MP/Whatsapp: +8615098916271

Wechat:leon15098916271
