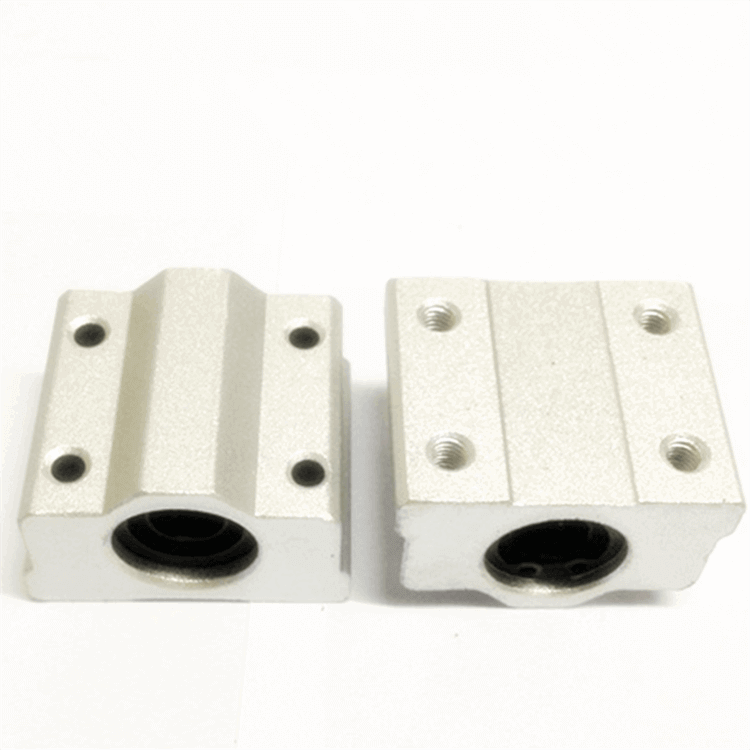

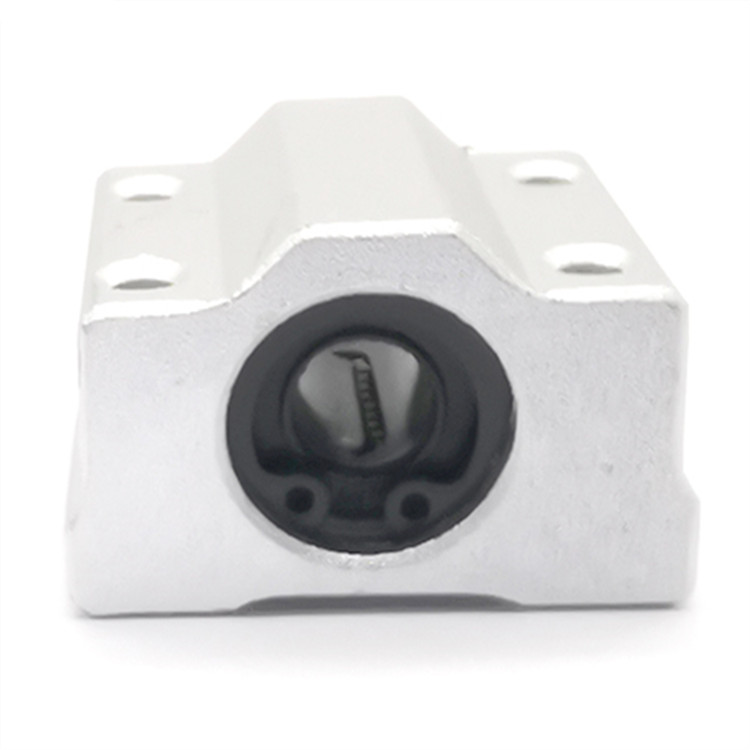

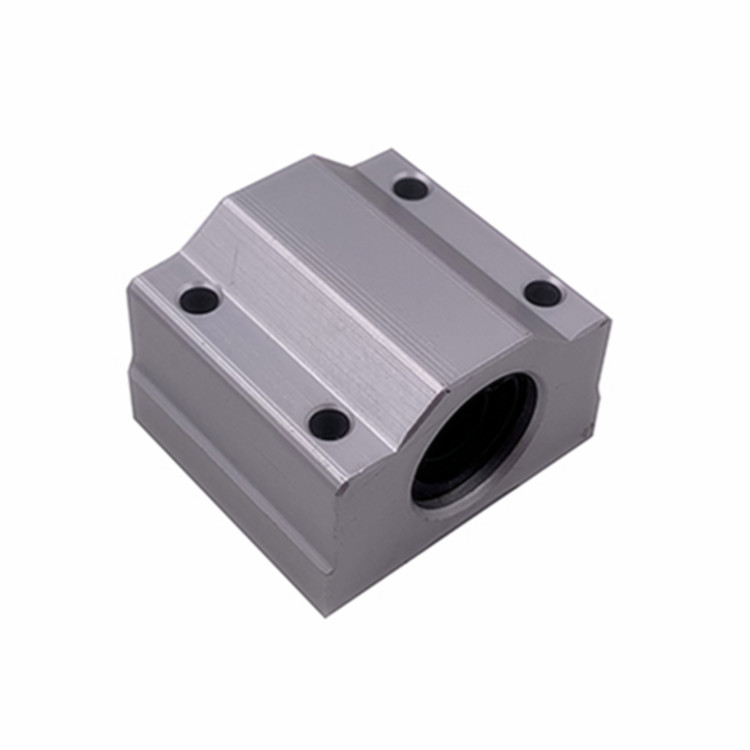

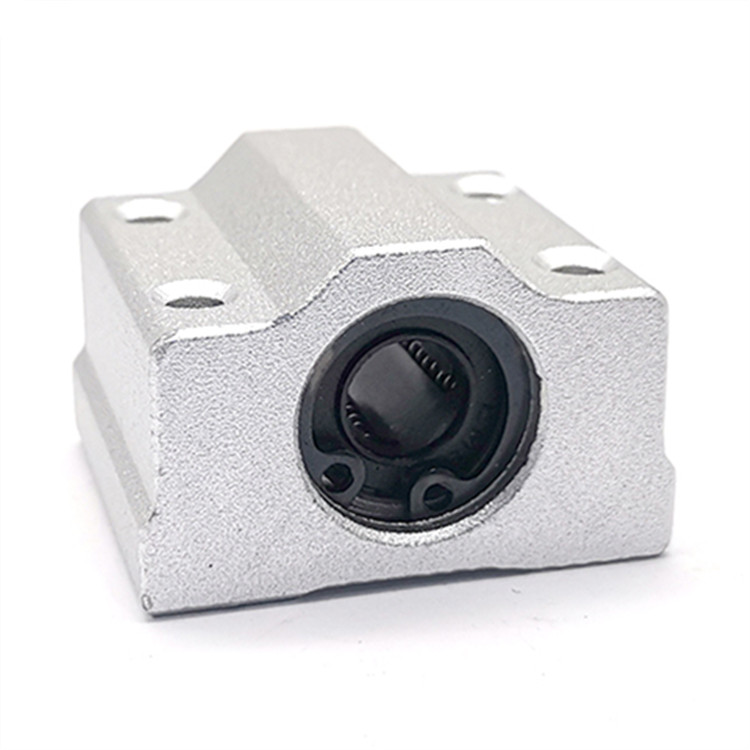

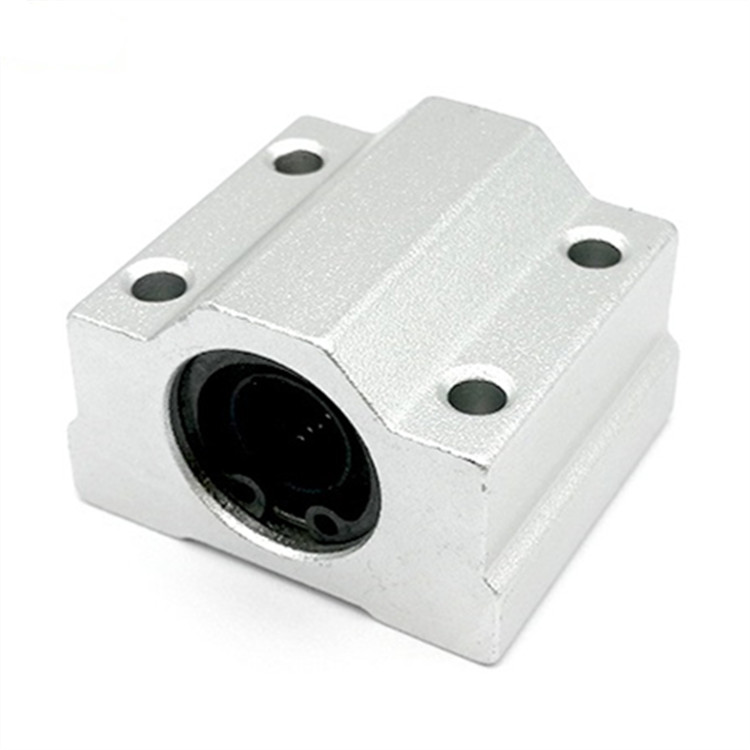

8mm linear rod sc8uu bearing manufacturer is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement.
8mm linear rod sc8uu bearing manufacturer
8mm linear rod sc8uu bearing manufacturer is often used with quenching line transmission shaft, a system for rectilinear movement. It has lower loading capacity due to the point contact between the load-carrying balls and quenching transmission shaft, and characterized by smallest friction, high precision and fast moving speed in case of rectilinear movement.
Models for 8mm linear rod sc8uu bearing manufacturer:
"LM" metric standard type linear bearing
"LME" inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" open type linear bearing
"AJ" adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision miniature bearing
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 8mm linear rod sc8uu bearing manufacturer?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 8mm linear rod sc8uu bearing manufacturer? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for 8mm linear rod sc8uu bearing manufacturer?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of 8mm linear rod sc8uu bearing manufacturer?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your 8mm linear rod sc8uu bearing manufacturer?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need 8mm linear rod sc8uu bearing manufacturer or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
| Bearing Brand | LLH or OEM |
| Bearing Material | Chrome Steel,Stainless Steel |
| Bearing Origin | China |
| Bearing Precision Grade | P0 P6 P5 P4 P2 |
| Samples | Acceptable |
| Features | 1.Best competitive price
2. Low nosie, high precision 3.Long life and stable service |
| MODEL NO. |
NUMBER OF BALL ROWS |
MAIN DIMENSIONS | BASIC LOAD RATING |
WEIGHT
g
|
||||||||||||
| INNER DIAMETER | OUTER DIAMETER | LENGTH | OUTER LOCKING GROOVE | W | c(kgf) | Co(kgf) | ||||||||||
| dr | TOLERANCE | D | TOLERANCE | L | TOLERANCE | B | TOLERANCE | D1 | ||||||||
| LM3 | 4 | 3 | 0-0.008 | 7 | 0-0.009 | 10 | 0-0.12 | |||||||||
| LM4 | 4 | 4 | 8 | 12 | 9 | 13 | 3 | |||||||||
| LM5 | 4 | 5 | 10 | 15 | 10.2 | 0-0.20 | 9.6 | 1.1 | 17 | 21 | 4 | |||||
| LM6UU | 4 | 6 | 0-0.009 | 12 | 0-0.011 | 17 | 0-0.20 | 13.5 | 11.5 | 1.1 | 21 | 27 | 6 | |||
| LM8S | 4 | 8 | 15 | 19 | 11.5 | 14.3 | 1.1 | 18 | 23 | 9 | ||||||
| LM8UU | 4 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 | 27 | 41 | 14 | ||||||
| LM10UU | 4 | 10 | 19 | 0-0.013 | 29 | 22 | 18 | 1.3 | 38 | 56 | 28 | |||||
| LM12UU | 4 | 12 | 21 | 30 | 23 | 20 | 1.3 | 42 | 61 | 32 | ||||||
| LM13UU | 4 | 13 | 23 | 32 | 23 | 22 | 1.3 | 52 | 79 | 38 | ||||||
| LM16UU | 5 | 16 | 28 | 37 | 26.5 | 27 | 1.6 | 79 | 120 | 74 | ||||||
| LM20UU | 5 | 20 | 0-0.010 | 32 | 0-0.016 | 42 | 30.5 | 30.5 | 1.6 | 88 | 140 | 80 | ||||
| LM25UU | 6 | 25 | 40 | 59 | 0-0.30 | 41 | 0-0.30 | 38 | 1.85 | 100 | 160 | 206 | ||||
| LM30UU | 6 | 30 | 45 | 64 | 44.5 | 43 | 1.85 | 160 | 280 | 240 | ||||||
| LM35UU | 6 | 35 | 0-0.012 | 52 | 0-0.019 | 70 | 49.5 | 49 | 2.1 | 170 | 320 | 370 | ||||
| LM40UU | 6 | 40 | 60 | 80 | 60.5 | 57 | 2.1 | 220 | 410 | 589 | ||||||
| LM50UU | 6 | 50 | 80 | 100 | 74 | 76.5 | 2.6 | 390 | 810 | 1480 | ||||||
| LM60UU | 6 | 60 | 0-0.015 | 90 | 0-0.022 | 110 | 85 | 86.5 | 3.15 | 480 | 1020 | 175 | ||||
