Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring

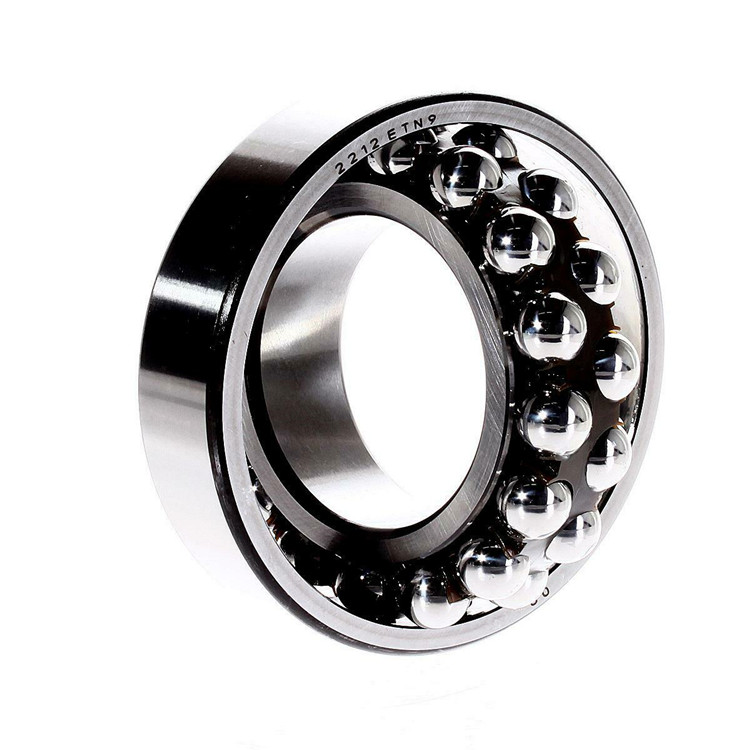

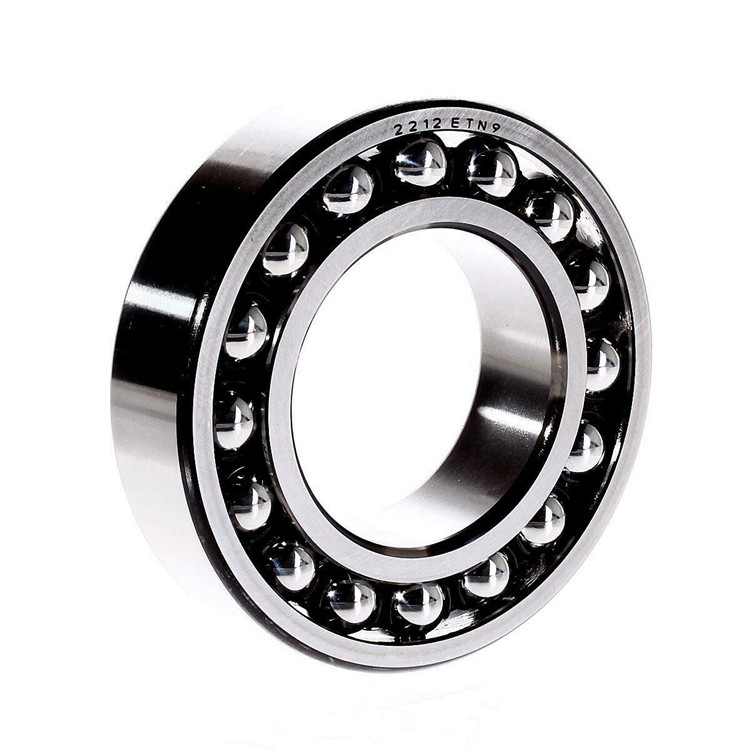

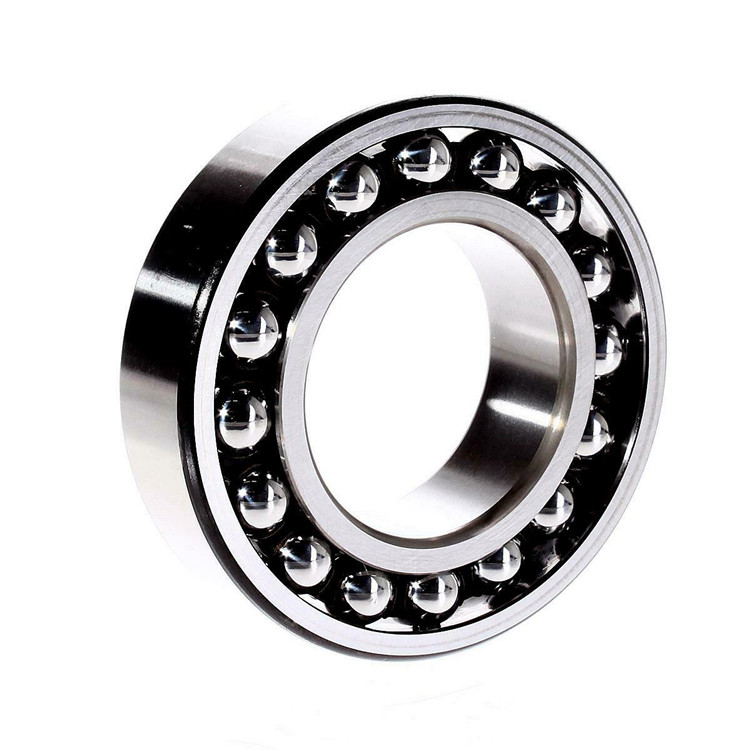

abec 8 bearing 2212 spherical ball bearing size 60x110x28 mm
abec 8 bearing 2212 spherical ball bearing is designed to work in applications where severe misalignment exists whether from mounting or shaft deflection. The concave raceway of the outer ring in combination with two rows of balls operate over a wide range of contact angles. Furthermore it aligns itself correctly with the shaft and assembly without causing undue stress on the rest of the bearing assembly.
|
Product name
|
2212 Self-aligning Ball Bearing
|
|
Dimension
|
60X100X28MM
|
|
Weight
|
1.09kg
|
|
Material
|
Chrome Steel/GCR15
|
|
Brand
|
LLH Or Depend on client's request
|
|
Sample
|
Available but its charged
|
 |
 |
 |
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for abec 8 bearing 2212 spherical ball bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for abec 8 bearing 2212 spherical ball bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for abec 8 bearing 2212 spherical ball bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of abec 8 bearing 2212 spherical ball bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your abec 8 bearing 2212 spherical ball bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with abec 8 bearing 2212 spherical ball bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
| Principal Dimensions: 2212 self aligning ball bearing | |
| Bearing bore size | 60mm |
| Bearing outer diameter | 110mm |
| Bearing thickness | 28mm |
| Bearing weight | 1.09kg |
| Bearing features: | |
| Bearing number of row | double row self aligning ball bearing |
| Bearing material | steel bearing, chrome steel bearing |
| Bearing cage type | steel cage bearing |
| Bearing bore type |
cylindrical bore |
| Part No. | d | D | T |
| 1205 EKTN9 | 25 | 52 | 15 |
| 2205 E-2RS1KTN9 | 25 | 52 | 18 |
| 2205 EKTN9 | 25 | 52 | 18 |
| 1305 EKTN9 | 25 | 62 | 17 |
| 2305 E-2RS1KTN9 | 25 | 62 | 24 |
| 2305 EKTN9 | 25 | 62 | 24 |
| 1206 EKTN9 | 30 | 62 | 16 |
| 2206 E-2RS1KTN9 | 30 | 62 | 20 |
| 2206 EKTN9 | 30 | 62 | 20 |
| 1306 EKTN9 | 30 | 72 | 19 |
| 2306 E-2RS1KTN9 | 30 | 72 | 27 |
| 2306 K | 30 | 72 | 27 |
| 1207 EKTN9 | 35 | 72 | 17 |
| 2207 E-2RS1KTN9 | 35 | 72 | 23 |
| 2207 EKTN9 | 35 | 72 | 23 |
| 1307 EKTN9 | 35 | 80 | 21 |
| 2307 E-2RS1KTN9 | 35 | 80 | 31 |
| 2307 EKTN9 | 35 | 80 | 31 |
| 1208 EKTN9 | 40 | 80 | 18 |
| 2208 E-2RS1KTN9 | 40 | 80 | 23 |
| 2208 EKTN9 | 40 | 80 | 23 |
| 1308 EKTN9 | 40 | 90 | 23 |
| 2308 E-2RS1KTN9 | 40 | 90 | 33 |
| 2308 EKTN9 | 40 | 90 | 33 |
| 1209 EKTN9 | 45 | 85 | 19 |
| 2209 E-2RS1KTN9 | 45 | 85 | 23 |
| 2209 EKTN9 | 45 | 85 | 23 |
| 1309 EKTN9 | 45 | 100 | 25 |
| 2309 E-2RS1KTN9 | 45 | 100 | 36 |
| 2309 EKTN9 | 45 | 100 | 36 |
| 1210 EKTN9 | 50 | 90 | 20 |
| 2210 E-2RS1KTN9 | 50 | 90 | 23 |
| 2210 EKTN9 | 50 | 90 | 23 |
