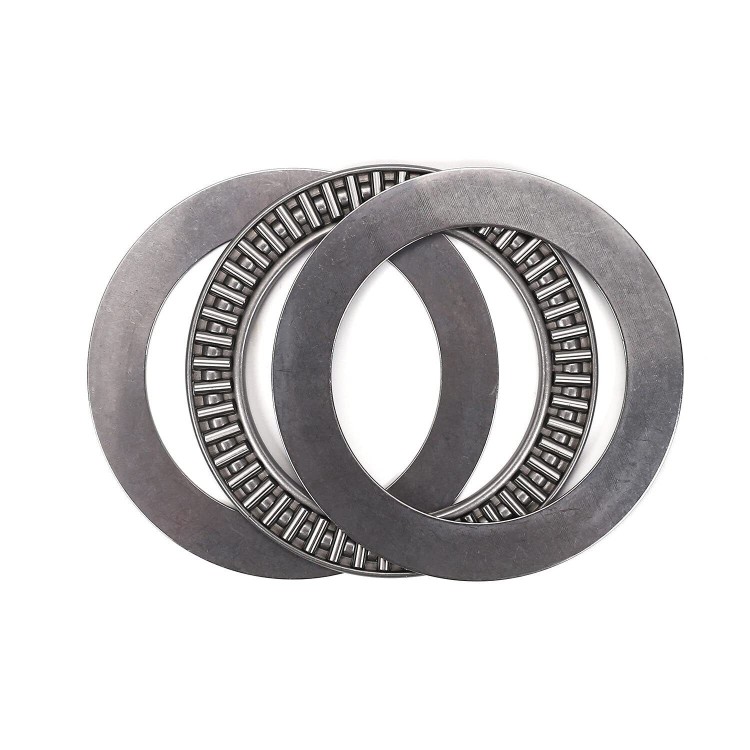

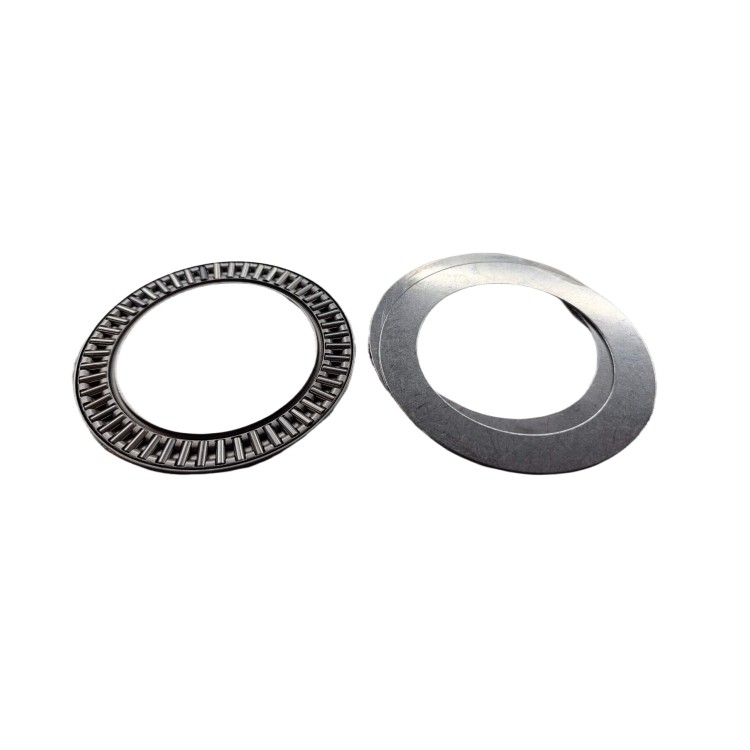

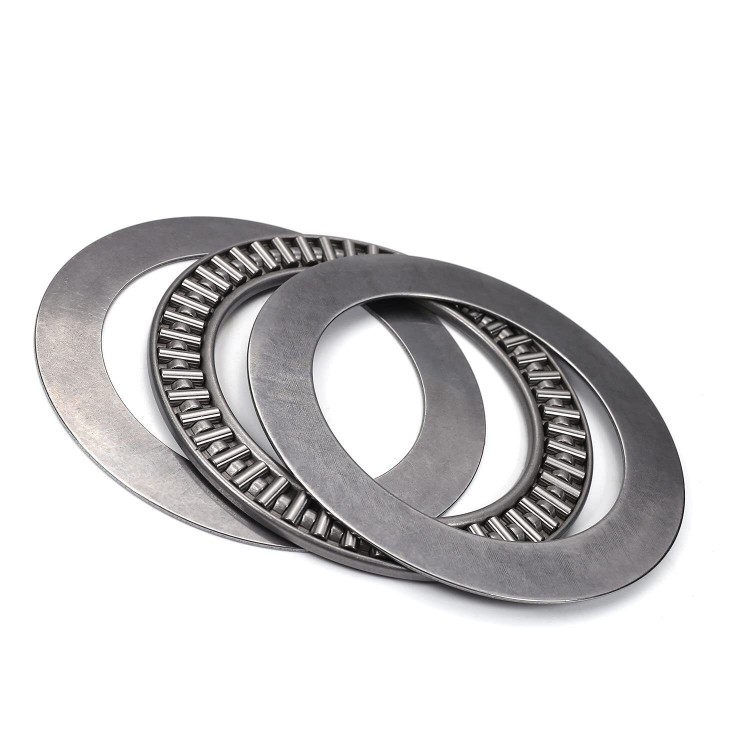

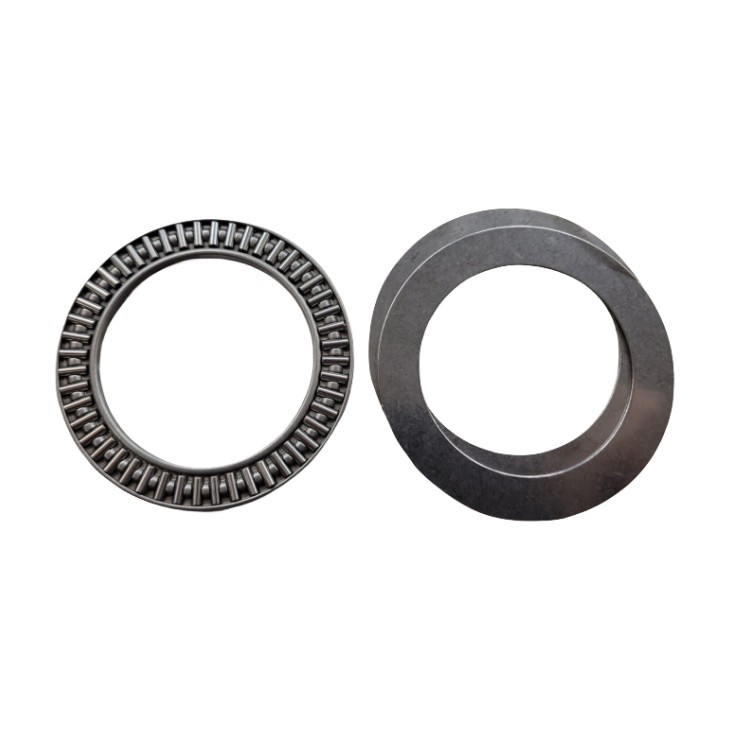

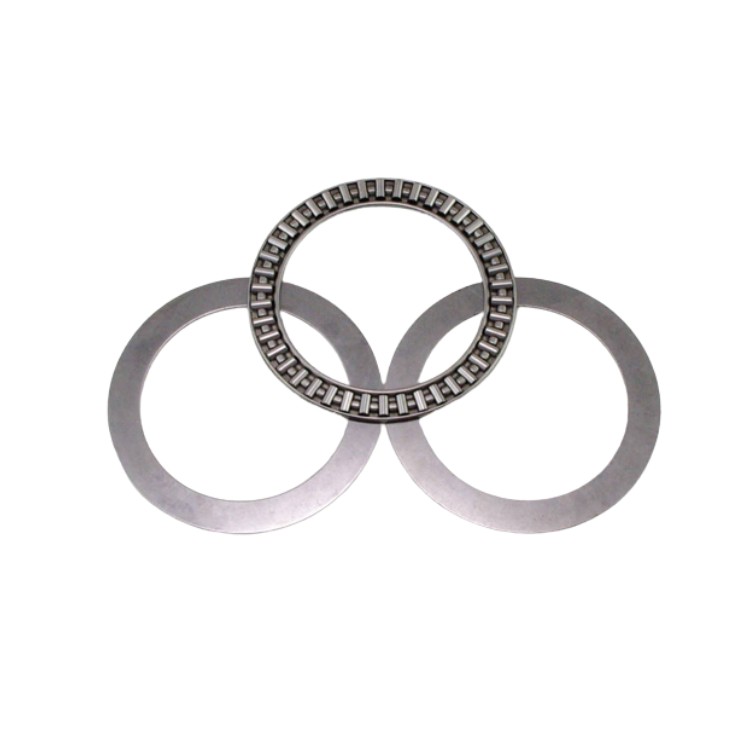

AXK 6085 bearing AXK6085 Thrust Ball Bearings with 2 Washers
AXK 6085 bearing is comosed of a set of tray ring gaskets combined with retainer with roller bearings.The stand leads and holds many rolling elements.The thrust needle bearings or thrust-cylindrical roller bearings can support the bearings with the axial directional load and so the can be used as the bearings with good rigidity and minium axial occupied spaces.
If the surface of the adjacent parts can be used as a tray for the rolling needles and the holding stand assembly should be recommended when the support space is big enough so that a small axial cross sectional altitude can be achieved.Same effectiveness can be ensured in different cases when combined with the relatively thicker ring gaskets of LS,GS,WS,ZS series.The applicable gaskets series of AS,LS,GS,WS,ZS are optional and will be ordered sparately by the buyers.
AXK 6085 bearing is units comprising axial needle rollers and cage assemblies and axial bearing washers with a centring spigot. Axial (Thrust) needle roller bearings are able to accommodate heavy axial loads. They are insensitive to shock loads and provide a high degree of bearing units stiffness within a minimum axial space. They represent unidirectional bearings and can accommodate axial loads acting in one direction only.
Using axial (thrust) needle roller bearings, it is possible to make compact bearing units. They will take up no more space than a conventional thrust washer, when the faces of adjacent machine components can serve as raceways for a set of thrust needle rollers with cage. In the cases when faces of adjacent machine components cannot serve as raceways, a set of thrust needle rollers with cage can be combined with washers of various designs.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for conveyor bearings for axk 6085 bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for conveyor bearings for axk 6085 bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for conveyor bearings for axk 6085 bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for conveyor bearings for axk 6085 bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of conveyor bearings for axk 6085 bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your conveyor bearings for axk 6085 bearingrollers axk 1226 bearing ?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the conveyor bearings for axk 6085 bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
| If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace |
 |
| d |
60 mm
|
Bore diameter |
|---|---|---|
| D |
85 mm
|
Outside diameter |
| Dw |
3 mm
|
Diameter roller |
| Ea |
min.65 mm
|
Raceway diameter (min.) roller and cage thrust assembly |
| Eb |
max.83 mm
|
Raceway diameter (max.) roller and cage thrust assembly |
| Shaft Diameter(mm) | Bearing Type | Boundary Dimensions(mm) | Weight(g) | |||
| Current Type | Original Type | d | D | B | ||
| 8 | AXK0821 | 8 | 21 | 2 | 2 | |
| 10 | AXK1024 | 10 | 24 | 2 | 3 | |
| 12 | AXK1226 | 12 | 26 | 2 | 3 | |
| 15 | AXK1528 | 15 | 28 | 2 | 4 | |
| 17 | AXK1730 | 17 | 30 | 2 | 4 | |
| 20 | AXK2035 | 20 | 35 | 2 | 5 | |
| 25 | AXK2542 | 25 | 42 | 2 | 7 | |
| 30 | AXK3047 | 30 | 47 | 2 | 8 | |
| 40 | AXK4060+2AS | 40 | 60 | 3 | 16 | |
| 45 | AXK4565 | 45 | 65 | 3 | 18 | |
| 55 | AXK5578 | 55 | 78 | 3 | 28 | |
| 60 | AXK6085 | 60 | 85 | 3 | 33 | |
| 70 | AXK7095 | 70 | 95 | 4 | 60 | |
| 75 | AXK75100 | 75 | 100 | 4 | 61 | |
| 90 | AXK90120 | 90 | 120 | 4 | 86 | |
| 100 | AXK100135 | 100 | 135 | 4 | 104 | |
| 110 | AXK110145 | 110 | 145 | 4 | 122 | |
| 130 | AXK130137 | 130 | 137 | 5 | ||
| 150 | AXK150190 | 150 | 190 | 5 | 232 | |
| 160 | AXK160200 | 160 | 200 | 5 | 246 | |
