spherical self aligning ball bearing 2202 ball race bearing is applied to withstand heavy load and impact load, precision instruments, low noise motor, automobile, motorcycle, metallurgy, rolling mill, mine, oil, paper, cement, sugar industry, general machinery and so on.
 Spherical self aligning ball bearing 2202 ball race bearing |

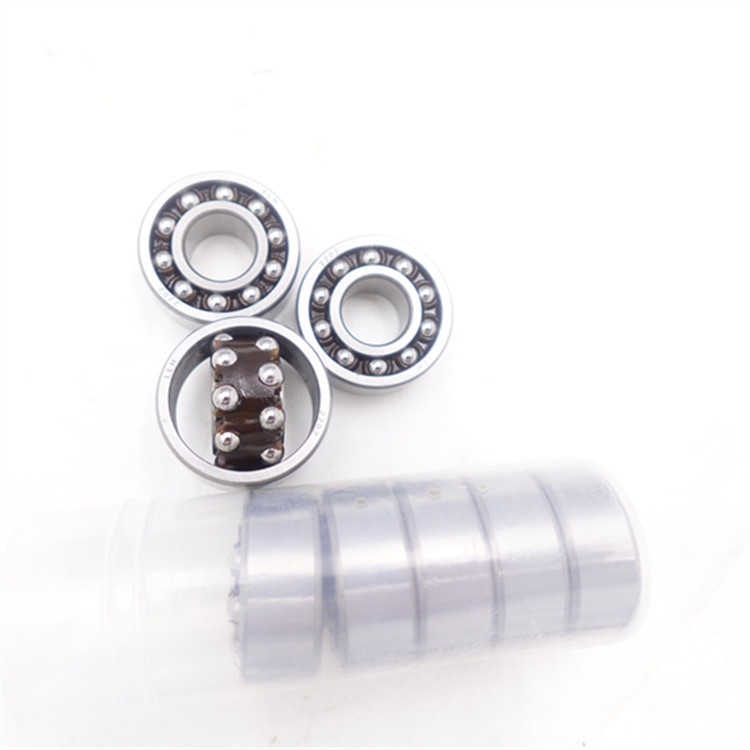

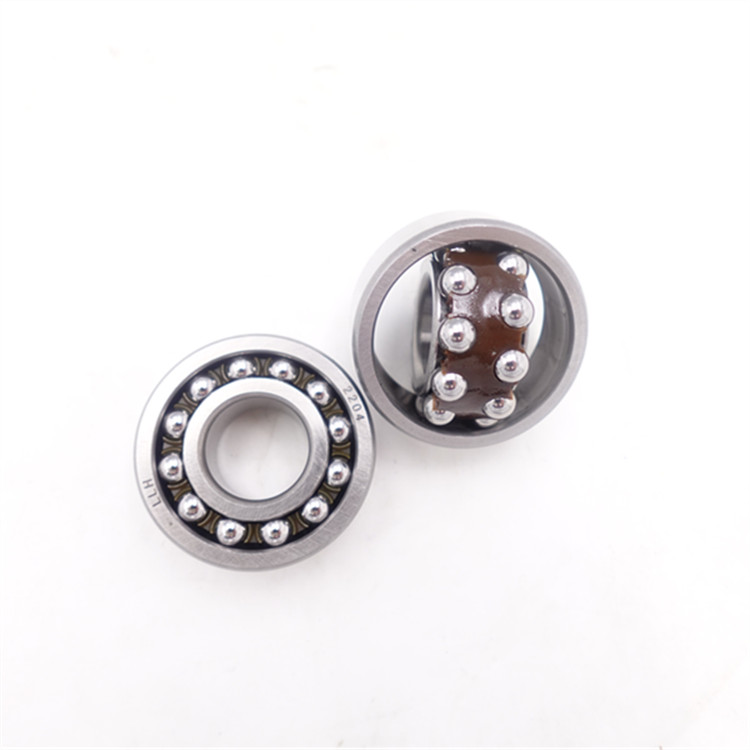

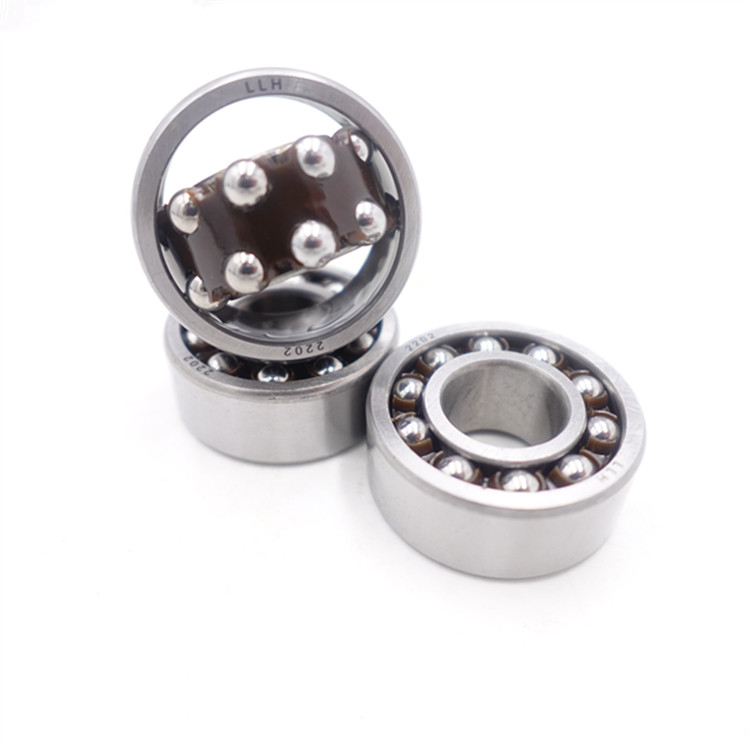

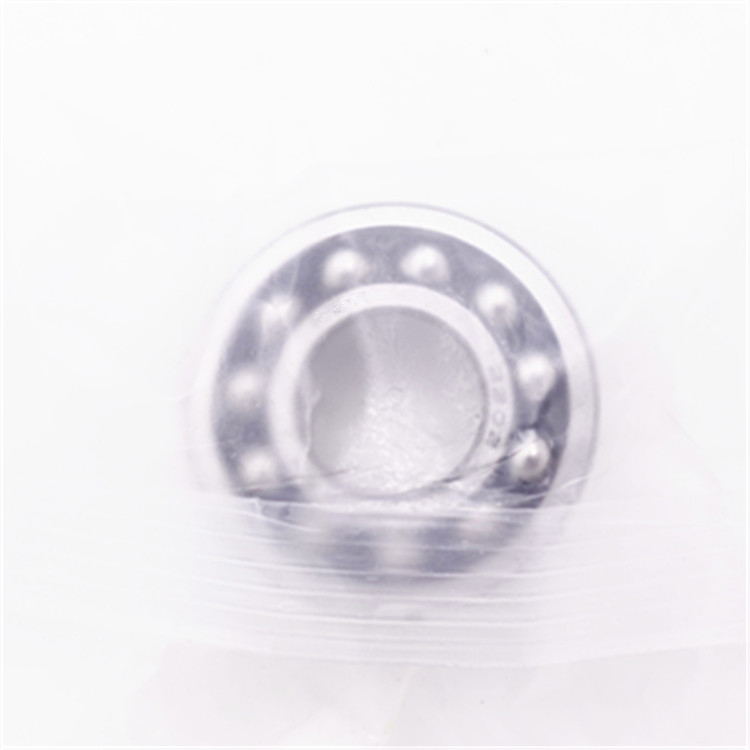

Spherical self aligning ball bearing 2202 ball race bearinginclude two rows of balls, a cage, an inner ring, and an outer ring with a common concave sphered raceway.This type of bearings is self-aligning and insensitive to angular misalignments of the shaft relative to the housing. The bearings are produced in several design: open bearings with the basic design, sealed bearings, open bearings with an extended inner ring.The self alignning ball bearings have the lowest friction of all rolling bearings.The bearings are available with a cylindrical bore or with a tapered bore in certain size ranges. Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring. |
Spherical self aligning ball bearing 2202 ball race bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing.It is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.
Spherical self aligning ball bearing 2202 ball race bearing features:
When shaft shell deflection occurs, they can be automatically adjusted without increasing the burden on the bearings. They can withstand higher radial load, but also bear certain axial load. This kind of bearing's outer ring raceway is spherical, aligning it with the performance, when the bend or tilt axis force leaves the center line of the inner and outer rings relative to the center line of slope less than 1 ° to 2.5 °, the bearings can still work.With two structures of bore cylindrical or tapered and retainers made of steel sheet or synthetic resins, the bearings' spherically formed outer ring raceways allowes for misalignment within 3 degree deflection between inner ring and outer ring so as to compensate concentricity and deflection errors.
Product line:
Mini-series: 10x, 12x, 13x
General Series: 12xx, 13xx, 22xx 23xx
Typical applications for spherical self aligning ball bearing 2202 ball race bearing:
Aligning ball bearings are widely applied to heavy loads and shock load, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, mill, mining, petroleum, paper, cement, squeezed sugar industry and general machinery.
Suffix definitions of Self-aligning ball bearings:
C3: radial clearance than ordinary clearance
K: 1/12 taper tapered bore
K30: 1/30 taper tapered bore
M: Ball guided machined brass cage
2RS: with both ends of closures
TV: ball guide glass fiber reinforced polyamide (nylon) solid cage
 |
 |
 |
 |
Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings.We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers. |
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for spherical self aligning ball bearing 2202 ball race bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for spherical self aligning ball bearing 2202 ball race bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for spherical self aligning ball bearing 2202 ball race bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for spherical self aligning ball bearing 2202 ball race bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of spherical self aligning ball bearing 2202 ball race bearing?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any models of bearings, please contact me!
Contact: Bella
Email/Skype: skf@llhbearing.com
Whatsapp: +86155315596312
TEL/Wechat:+8615318805907
|
Bearing Part#
|
d
|
D
|
B
|
C
|
C0r
|
Weight
|
|
mm
|
mm
|
mm
|
kN
|
mm
|
kg
|
|
|
126 TN9
|
6
|
19
|
6
|
2.51
|
0.48
|
0.009
|
|
127 TN9
|
7
|
22
|
7
|
2.65
|
0.56
|
0.014
|
|
108 TN9
|
8
|
22
|
7
|
2.65
|
0.56
|
0.014
|
|
129 TN9
|
9
|
26
|
8
|
3.9
|
0.82
|
0.022
|
|
1200 ETN9
|
10
|
30
|
9
|
5.53
|
1.18
|
0.034
|
|
2200 E-2RS1TN9
|
10
|
30
|
14
|
5.53
|
1.18
|
0.048
|
|
2200 ETN9
|
10
|
30
|
14
|
8.06
|
1.73
|
0.047
|
|
1201 ETN9
|
12
|
32
|
10
|
6.24
|
1.43
|
0.04
|
|
2201 E-2RS1TN9
|
12
|
32
|
14
|
6.24
|
1.43
|
0.053
|
|
2201 ETN9
|
12
|
32
|
14
|
8.52
|
1.9
|
0.053
|
|
1301 EM
|
12
|
37
|
12
|
9.36
|
2.16
|
0.072
|
|
1301 ETN9
|
12
|
37
|
12
|
9.36
|
2.16
|
0.067
|
|
2301
|
12
|
37
|
17
|
11.7
|
2.7
|
0.095
|
|
1202 ETN9
|
15
|
35
|
11
|
7.41
|
1.76
|
0.049
|
|
2202 E-2RS1TN9
|
15
|
35
|
14
|
7.41
|
1.76
|
0.058
|
|
2202 ETN9
|
15
|
35
|
14
|
8.71
|
2.04
|
0.06
|
|
1302 ETN9
|
15
|
42
|
13
|
10.8
|
2.6
|
0.094
|
|
2302
|
15
|
42
|
17
|
11.9
|
2.9
|
0.12
|
|
2302 E-2RS1TN9
|
15
|
42
|
17
|
10.8
|
2.6
|
0.11
|
|
1203 ETN9
|
17
|
40
|
12
|
8.84
|
2.2
|
0.073
|
|
2203 E-2RS1TN9
|
17
|
40
|
16
|
8.84
|
2.2
|
0.089
|
|
2203 ETN9
|
17
|
40
|
16
|
10.6
|
2.55
|
0.088
|
|
1303 EM
|
17
|
47
|
14
|
12.7
|
3.4
|
0.13
|
|
1303 ETN9
|
17
|
47
|
14
|
12.7
|
3.4
|
0.12
|
|
2303
|
17
|
47
|
19
|
14.6
|
3.55
|
0.16
|
|
2303 E-2RS1TN9
|
17
|
47
|
19
|
12.7
|
3.4
|
0.16
|
|
2303 M
|
17
|
47
|
19
|
14.6
|
3.55
|
0.18
|
|
1204 EKTN9
|
20
|
47
|
14
|
12.7
|
3.4
|
0.12
|
