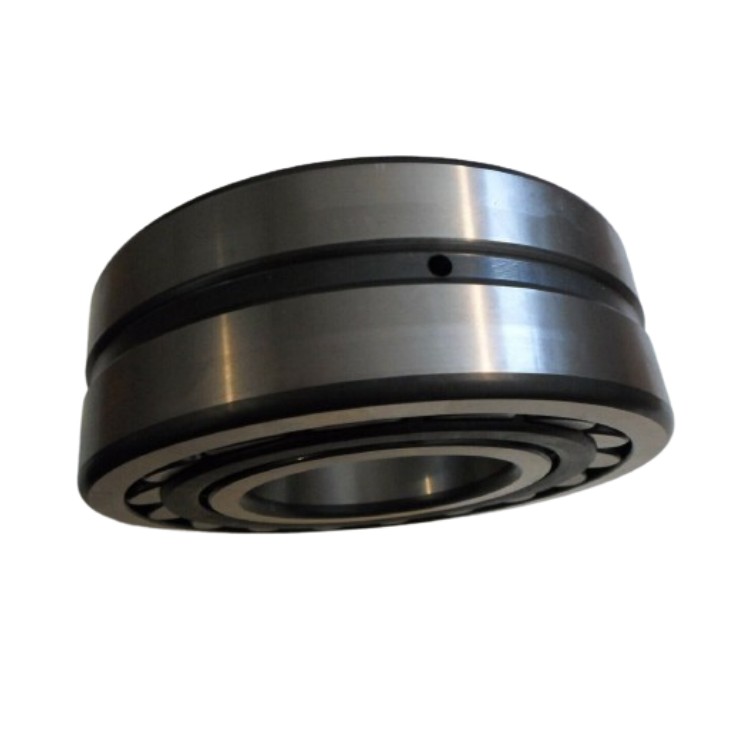

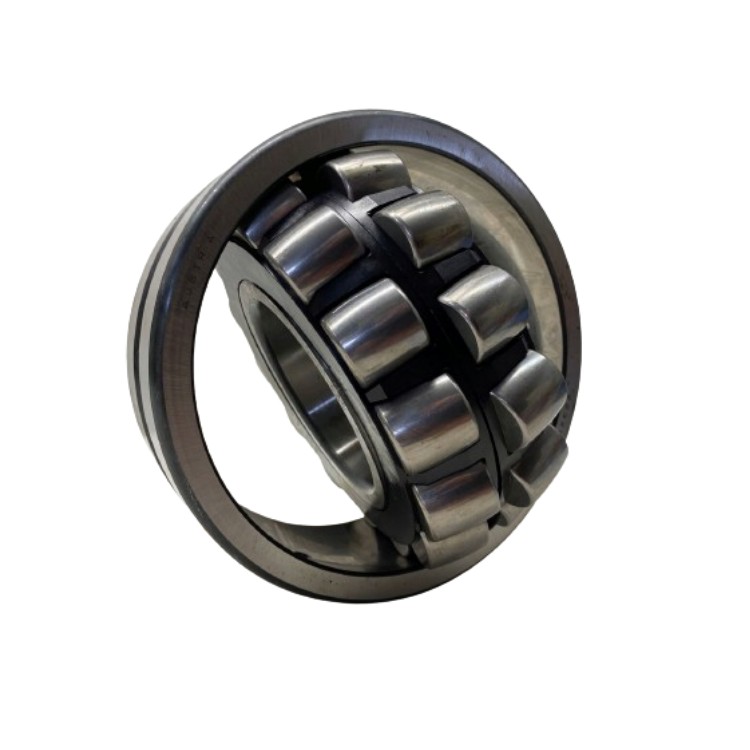

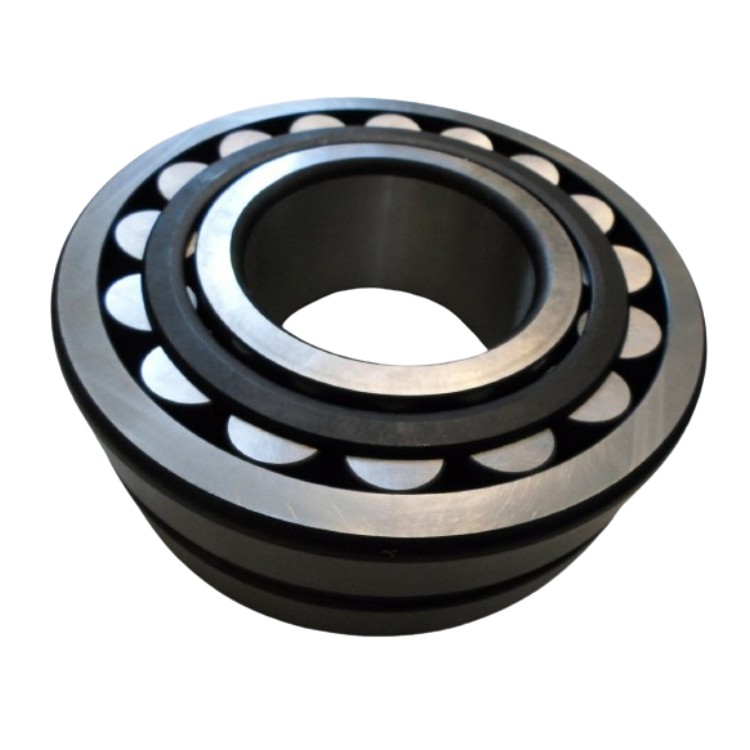

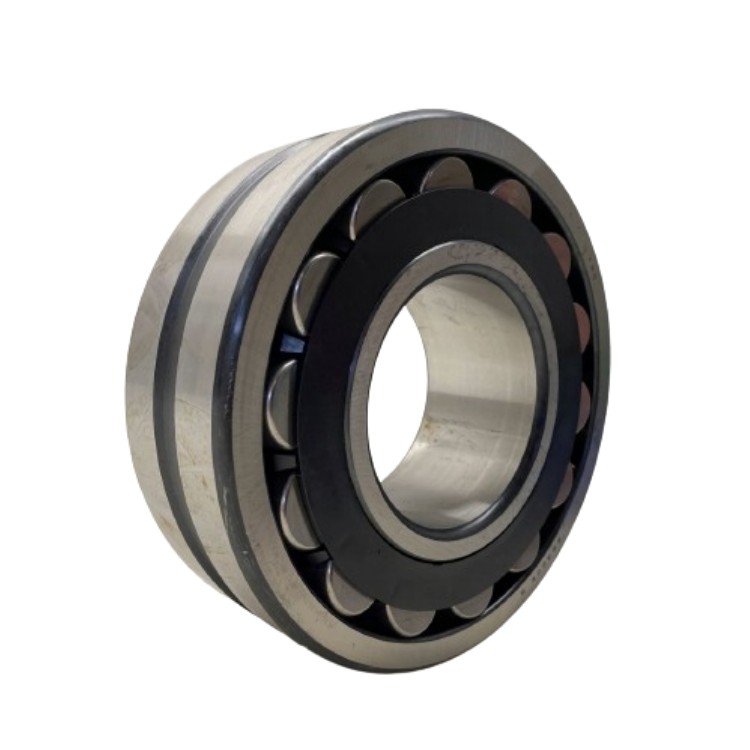

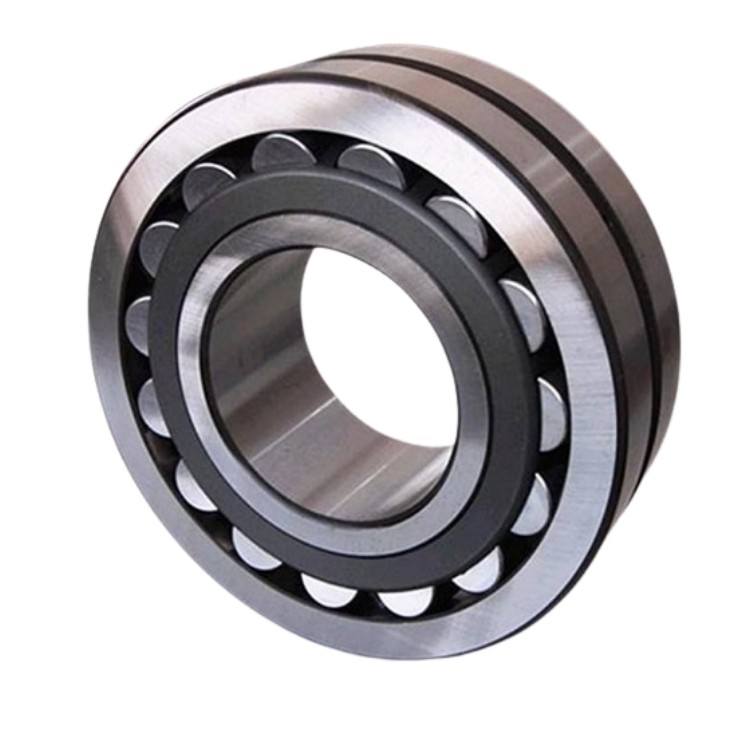

Bearing 22322 CC W33 Spherical roller bearing with relubrication features 22322CC/W33
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for bearing 22322 cc w33?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing 22322 cc w33?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for bearing 22322 cc w33?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearing 22322 cc w33?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for bearing 22322 cc w33?
A: Usually ≥1, According your demand.
9,Q: Will you check these bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
| d |
110 mm
|
Bore diameter |
|---|---|---|
| D |
200 mm
|
Outside diameter |
| B |
69.8 mm
|
Width |
| d2 |
≈130 mm
|
Shoulder diameter of inner ring |
| D1 |
≈169 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
| Bearings NO. | d/mm | D/mm | B/mm | C/kN | C0/kN | Weight/kg |
| 22326 CC/W33 | 130 | 280 | 93 | 1120 | 1320 | 29 |
| 22326 CCJA/W33VA405 | 130 | 280 | 93 | 1120 | 1320 | 29 |
| 22326 CCK/W33 | 130 | 280 | 93 | 1120 | 1320 | 28.5 |
| 22326 CCKJA/W33VA405 | 130 | 280 | 93 | 1120 | 1320 | 28.5 |
| 23028 CC/W33 | 140 | 210 | 53 | 465 | 680 | 6.55 |
| 23028 CCK/W33 | 140 | 210 | 53 | 465 | 680 | 6.35 |
| 24028 CC/W33 | 140 | 210 | 69 | 570 | 900 | 8.55 |
| 24028 CCK30/W33 | 140 | 210 | 69 | 570 | 900 | 8.4 |
| 24028-2CS2/VT143 | 140 | 210 | 69 | 570 | 900 | 8.55 |
| 23128 CC/W33 | 140 | 225 | 68 | 630 | 900 | 10.5 |
| 23128 CCK/W33 | 140 | 225 | 68 | 630 | 900 | 10 |
| 24128 CC/W33 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 24128 CCK30/W33 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 24128-2CS2/VT143 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 22228 CC/W33 | 140 | 250 | 68 | 710 | 900 | 14 |
| 22228 CCK/W33 | 140 | 250 | 68 | 710 | 900 | 13.5 |
| 23228 CC/W33 | 140 | 250 | 88 | 915 | 1250 | 19 |
| 23228 CCK/W33 | 140 | 250 | 88 | 915 | 1v50 | 18.5 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. .We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
