Tapered roller bearing 32006X 30*55*17mm
Tapered roller bearing 32006X 30*55*17mm

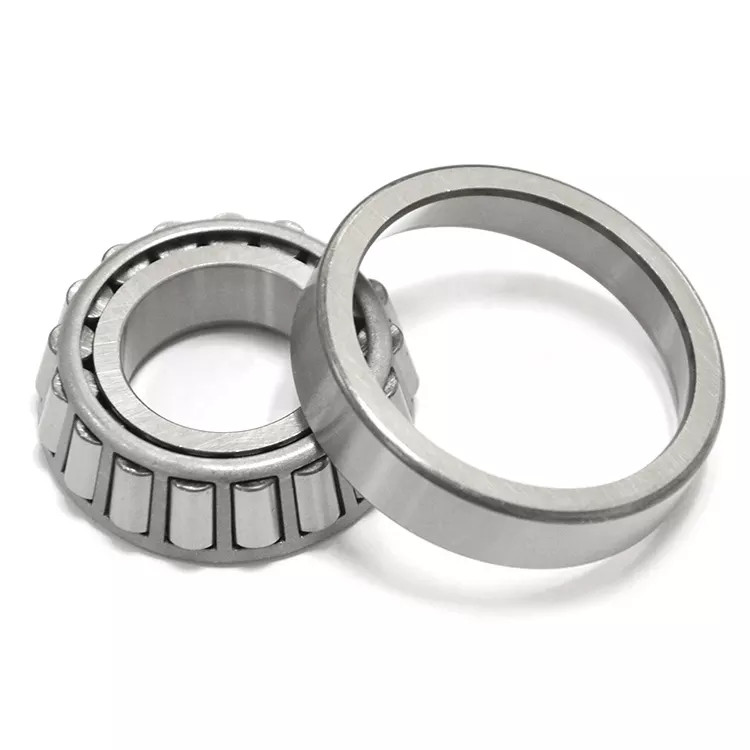

1)Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage).
2)The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position of the cone relative to the cup.

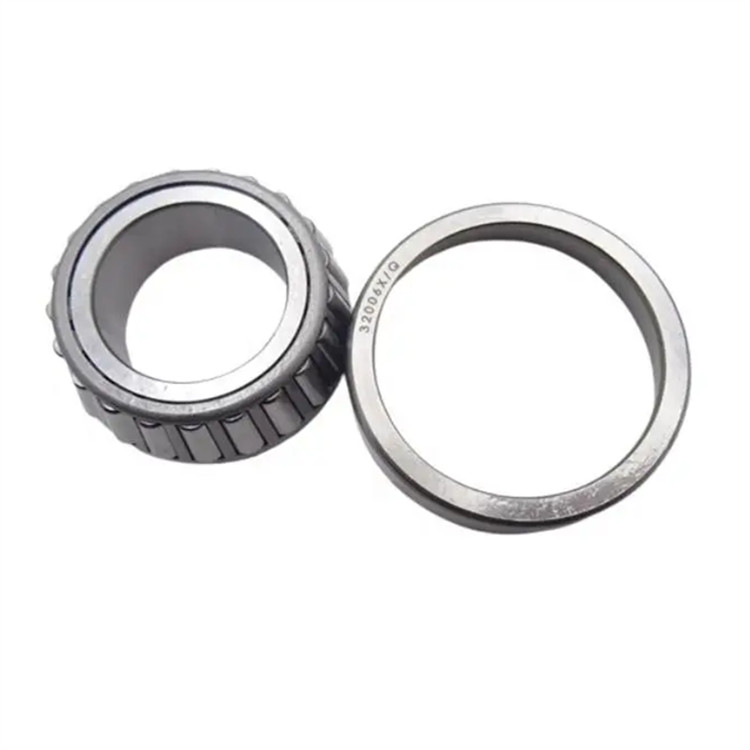

3)Tapered roller bearing included cup and cone there two parts.Cup is outer ring, Cone comprise rollers,cage,inner ring.And the inner ring with the rollers and cage can be fitted separately from the outer ring.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for tapered roller bearing 32006X?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing l45449?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for tapered roller bearing 32006X?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for tapered roller bearing 32006X?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of tapered roller bearing 32006X?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for tapered roller bearing 32006X?
A: Usually ≥1, According your demand.
9,Q: Will you check these bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with thetapered roller bearing 32006X?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand or any models bearings , please contact me!
Contact: Bella
Email/Skype: skf@llhbearing.com
Whatsapp: 008615315596312
TEL/Wechat: 008615318805907
| Series | Tapered roller bearing 32006X 30*55*17mm |
| Bearing model | 32006X |
| d | 30 mm |
| D | 55 mm |
| T | 17 mm |
|
Model number
|
Inner diameter(MM)
|
Outer diameter(MM)
|
Width(MM)
|
|
|
32004
|
20
|
42
|
15
|
|
|
32005
|
25
|
47
|
15
|
|
|
32006
|
30
|
55
|
17
|
|
|
32007
|
35
|
62
|
18
|
|
|
32008
|
40
|
68
|
19
|
| Bearing | Specification | Weight | ||
| No. | d(mm) | D(mm) | W(mm) | kg |
| 30202 bearing | 15 | 35 | 11.75 | 0.053 |
| 30203 bearing | 17 | 40 | 13.25 | 0.075 |
| 30204 bearing | 20 | 47 | 15.25 | 0.126 |
| 30205 bearing | 25 | 52 | 16.25 | 0.157 |
| 30206 bearing | 30 | 62 | 17.25 | 0.231 |
| 30207 bearing | 35 | 72 | 18.25 | 0.331 |
| 30208 bearing | 40 | 80 | 19.75 | 0.422 |
| 30209 bearing | 45 | 85 | 20.75 | 0.474 |
| 30210 bearing | 50 | 90 | 21.75 | 0.53 |
| 30211 bearing | 55 | 100 | 22.75 | 0.712 |
| 30212 bearing | 60 | 110 | 23.75 | 0.904 |
| 30213 bearing | 65 | 120 | 24.75 | 1.13 |
| 30214 bearing | 70 | 125 | 26.25 | 1.261 |
| 30215 bearing | 75 | 130 | 27.25 | 1.36 |
| 30216 bearing | 80 | 140 | 28.25 | 1.675 |
| 30217 bearing | 85 | 150 | 30.5 | 2.06 |
| Bearing No | Principal Dimensions (mm) | Basic Load Ratings KN | Mass | |||||||
| d | D | T | B | C | Rmin | rmin | dyc Cr | stc Cor | kg | |
| 33205 | 25 | 52 | 22 | 22 | 18 | 1 | 1 | 47 | 56 | 0,216 |
| 33206 | 30 | 62 | 25 | 25 | 19,5 | 1 | 1 | 64 | 75 | 0,343 |
| 33207 | 35 | 72 | 28 | 28 | 22 | 1,5 | 1,5 | 87,5 | 106 | 0,519 |
| 33208 | 40 | 80 | 32 | 32 | 25 | 1,5 | 1,5 | 113 | 126 | 0,701 |
| 33209 | 45 | 85 | 32 | 32 | 25 | 1,5 | 1,5 | 115 | 150 | 0,789 |
| 33210 | 50 | 90 | 32 | 32 | 24,5 | 1,5 | 1,5 | 119 | 160 | 1,17 |
| 33211 | 55 | 100 | 35 | 35 | 27 | 2 | 1,5 | 143 | 196 | 1,17 |
| 33212 | 60 | 110 | 38 | 38 | 29 | 2 | 1,5 | 135 | 189 | 1,55 |
| 33213 | 65 | 120 | 41 | 41 | 32 | 2 | 1,5 | 183 | 280 | 2,02 |
| 33214 | 70 | 125 | 41 | 41 | 32 | 2 | 1,5 | 168 | 240 | 2,06 |
| 33215 | 75 | 130 | 41 | 41 | 31 | 2 | 1,5 | 199 | 282 | 2,27 |
| 33216 | 80 | 140 | 46 | 46 | 35 | 2,5 | 2 | 264 | 390 | 2,89 |
| 33217 | 85 | 150 | 49 | 49 | 37 | 2,5 | 2 | 286 | 236 | 3,64 |
| 33218 | 90 | 160 | 55 | 55 | 42 | 2,5 | 2 | 330 | 495 | 4,77 |
| 33219 | 95 | 170 | 58 | 58 | 44 | 3 | 2,5 | 405 | 560 | 5,54 |
| 33220 | 100 | 180 | 63 | 63 | 48 | 3 | 2,5 | 430 | 655 | 6,58 |
