One-way bearings are widely used in printing machinery, packing machinery, food machinery, two-speed gearboxes, electric roller, exercise equipment, automobile industry,etc.
BB30-2K cam clutch bearing BB30 bearing BB series One Way Clutch Bearing BB30-2K 30x62x16mm
One-way bearing is free to rotate in one direction, while in the other direction on a bearing locked. One-way bearings inside the metal shell that contains lots of roller, needle or ball, and the rolling seat (hole) shape so that it can only scroll in one direction, while in the other direction will have great resistance.
One-way bearings are widely used in printing machinery, packing machinery, food machinery, two-speed gearboxes, electric roller, exercise equipment, automobile industry, fishing reel, Household appliances; Currency detector, etc.
Kind of One way clutch ball bearings:
1. CSK bearing is one way bearing with a sprag type.
2. CSK bearing has CSK..P, CSK..PP series.
3. CSK bearins series are composed of a 62 series ball bearing (except CSK8 and 40).
4. CSK bearing or One-way bearings are widely used in mining /hydraulic / textile / printing / washing machines, conveyor systems and so on.
5. One way bearing (freewheel bearing) CSK series, HF, HFL, FCB, B200 series.
6. One way clutch (overrunning clutch), GFR, MZ series.
CSK-P and CSK-PP series are available upon request. CSK--P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race; CSK--PP features a keyway in both the inner and outer race. The Model CSK-P clutches must be secured to the shaft by customer supplied snap ring, set collar, spacer, etc. The outer race is secured with a press fit to a N6 tolerance. The Model CSK-PP clutches have a keyway on both races and must be secured by customer supplied snap ring, set collar,
1.Excellent for high speeds
2.Good radial load capacity
3.Acceptable axial load capacity in both directions
4.Have low torque capacity at startup and running speeds
5.Can operate with low noise
6.Require little maintenance
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for cam clutch bearing BB30 bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for cam clutch bearing BB30 bearing? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for cam clutch bearing BB30 bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for gearbox roller bearing 35BD4820DUM6 bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price of cam clutch bearing BB30 bearing?
A: after we get your inquiry,usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of cam clutch bearing BB30 bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the cam clutch bearing BB30 bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
|
Bearing name:
|

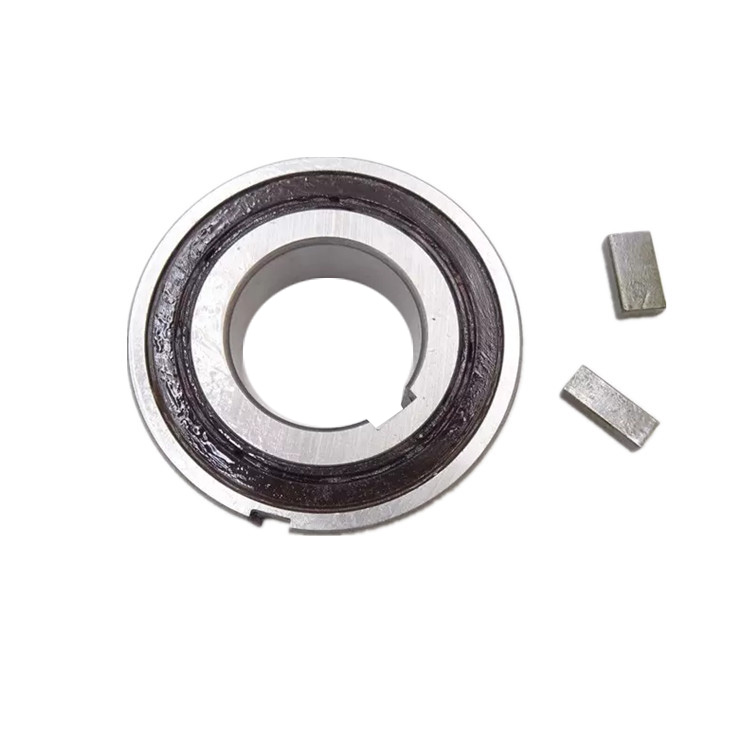

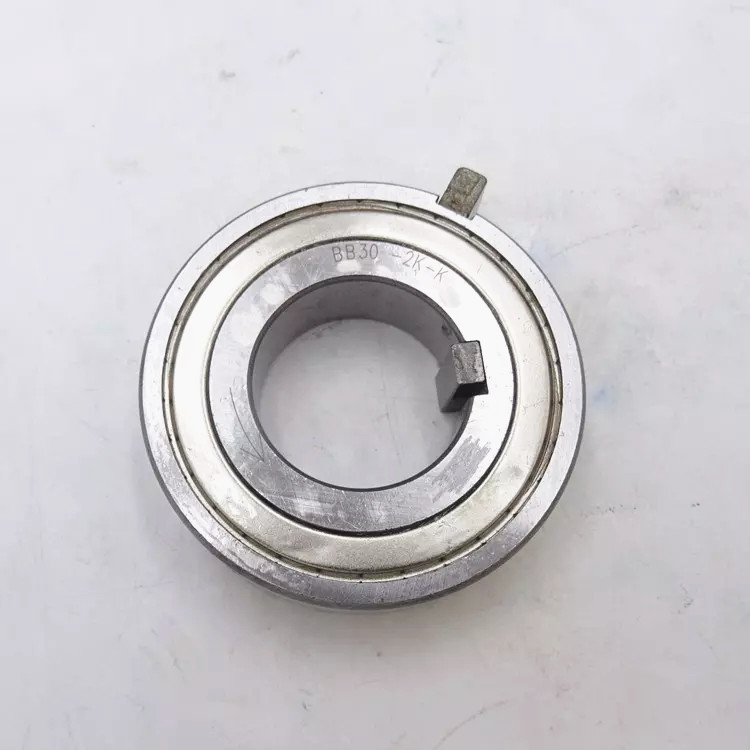

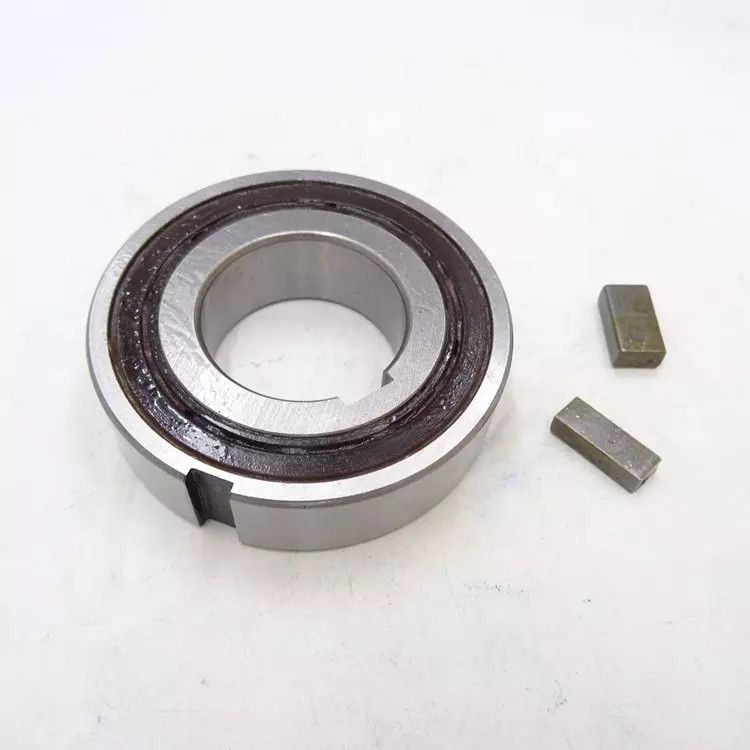

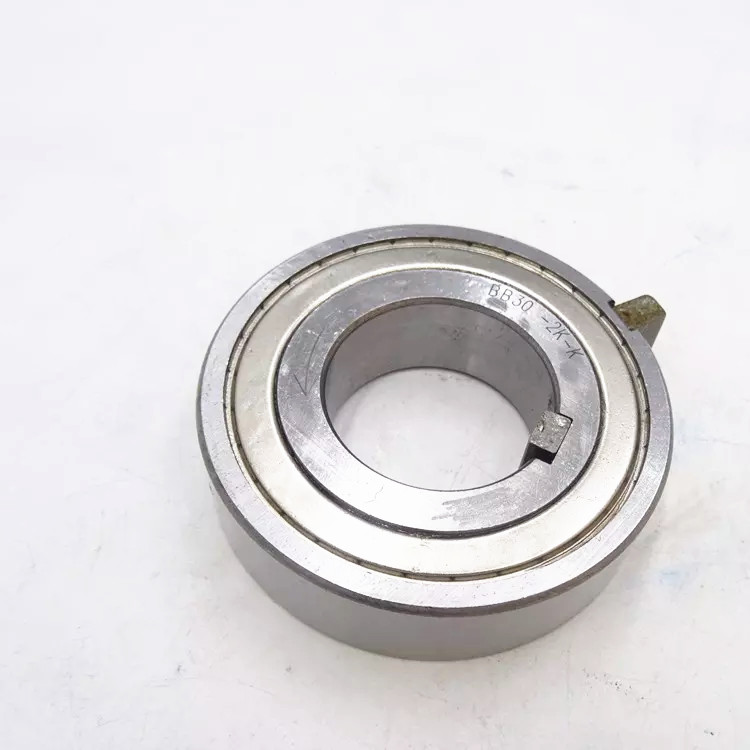

Tsubaki Cam clutch bearing BB30-2K-K (6206) d=30 D=62 T=16, with keyway on inner & outer race steel sealed
Drawing Datasheet |
|
d
|
30mm
|
|
D
|
62mm
|
|
B
|
16mm
|
|
Reference
|
BB30-2K-K
|
|
Weight
|
0.28 kg
|
| One way clutch CSK type | ||||||||
| Bearing No. | Dimension (mm) | Torque | Mass | |||||
| (Stieber-Germany) | Japan | d | D | B | (N.m) | (kg) | ||
| CSK8 | CSK 8P | CSK 8PP | 8 | 22 | 9 | 2.5 | 0.015 | |
| CSK12 | CSK 12P | CSK 12PP | 12 | 32 | 10 | 7.5 | 0.04 | |
| CSK15 | CSK 15P | CSK 15PP | BB15 | 15 | 35 | 11 | 13.5 | 0.05 |
| CSK17 | CSK 17P | CSK 17PP | BB17 | 17 | 40 | 12 | 24.5 | 0.07 |
| CSK20 | CSK 20P | CSK 20PP | BB20 | 20 | 47 | 14 | 40 | 0.11 |
| CSK25 | CSK 25P | CSK 25PP | BB25 | 25 | 52 | 15 | 68 | 0.14 |
| CSK30 | CSK 30P | CSK 30PP | BB30 | 30 | 62 | 16 | 110 | 0.21 |
| CSK35 | CSK 35P | CSK 35PP | BB35 | 35 | 72 | 17 | 140 | 0.3 |
| CSK40 | CSK 40P | CSK 40PP | BB40 | 40 | 80 | 22 | 260 | 0.5 |
