ceramic bearing used in robot has characteristics of strong resistance against all kinds of acid, alkali, salt and other corrosive medium erosion, against high temperature, wear-resistant, lightest structure weight, high limiting speed, low noise, electrical insulation, dimensional stability at high temperature, small starting torque etc.

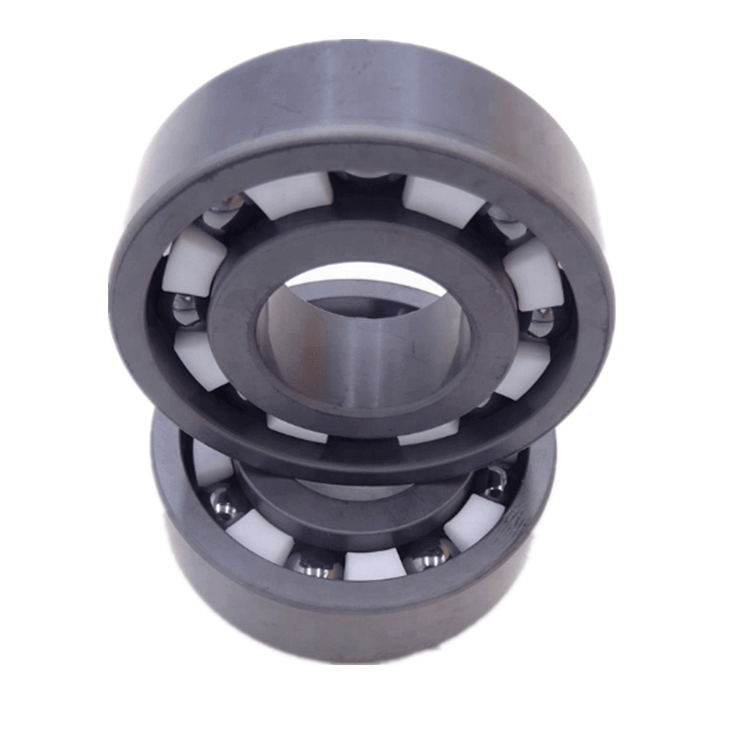

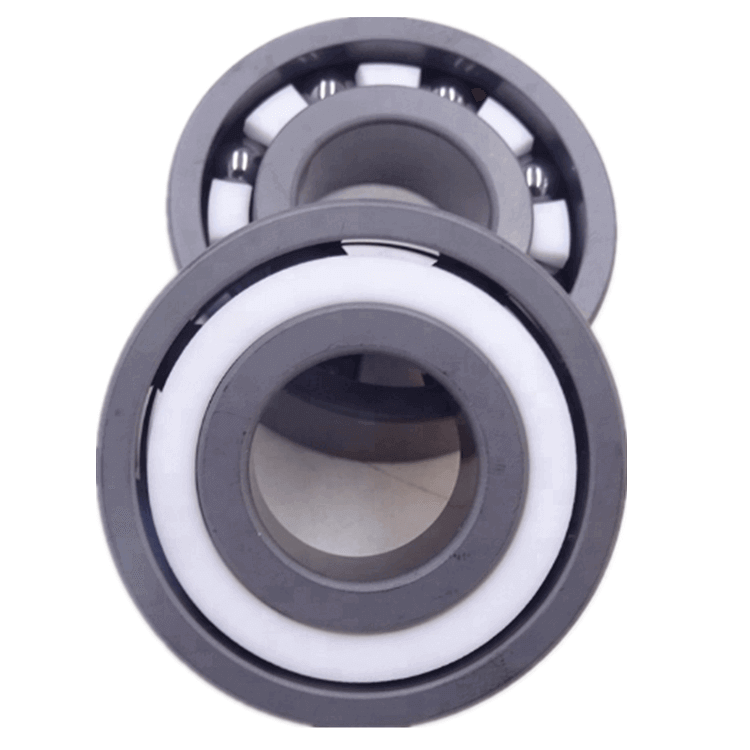

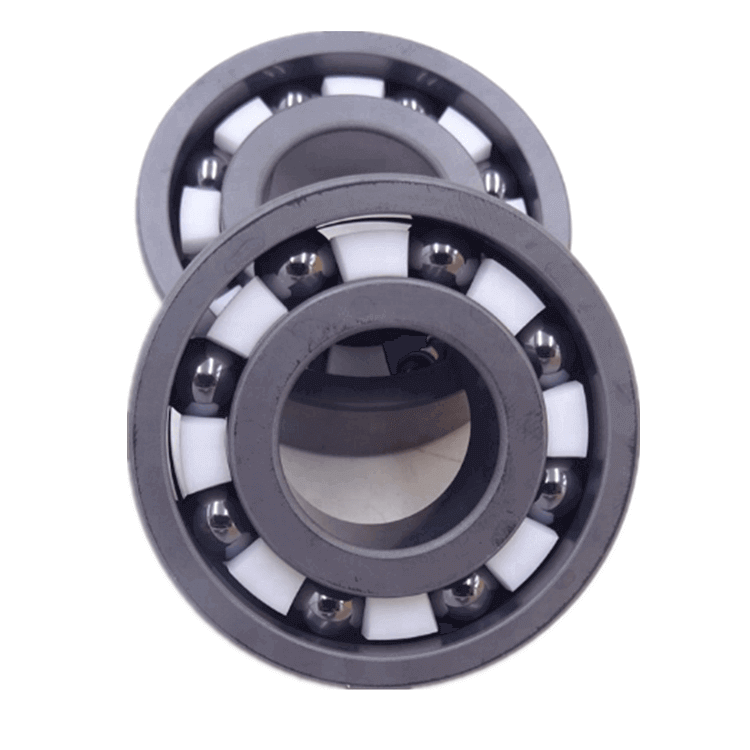

ceramic bearing used in robot 6204 SiC bearing mini size with high speed
Brief introduction
ceramic bearing used in robot are the most representative and widely used bearing. It can withstand axial loads in both directions, in addition to radial loads, even at high speed. They are available for low noise and low vibration. Bearings with mental shields and rubber seals are pre-lubrecated by some grease. Deep groove ball bearings with filling slots have the same dimensions with the standard ones. Filling slot bearings have a higher radial load carrying capacity than bearings without filling slots.
ceramic bearing used in robot have excellence performance by virtue of the electricity and magnetism resistance, anti-corrosion, self-lubrication and maintenance, low noise, higher load capacity, high/low temperature resistance, etc. They are not stronger than steel but lighter. The lower friction than steel allows them to go faster with lower heat generated during the rotation.
FAQ
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for ceramic bearing used in robot SiC bearing mini size?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for ceramic bearing used in robot SiC bearing mini size? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for ceramic bearing used in robot SiC bearing mini size?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price of ceramic bearing used in robot SiC bearing mini size?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of your ceramic bearing used in robot ?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for ceramic bearing used in robot SiC bearing mini size?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if you are not satisfied with the ceramic bearing used in robot SiC bearing mini size ?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: 008618668903871
Wechat:GraceXu1234
| Model | Deep Groove Ball Ceramic Bearing |
| Circle&Roller Material | ZrO2, Si3N4,SiC |
| Type | 6204 |
| Precision | P6 P5 P4 P2 |
| services | OEM |
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
| mm | mm | mm | mm | Dynamic | Static | Grease | Oil | Kg/pcs | |
| Cr | Cor | r/min | r/min | ||||||
| 623 | 3 | 10 | 4 | 0.15 | 0.5 | 0.216 | 38000 | 48000 | 0.0015 |
| 624 | 4 | 13 | 5 | 0.2 | 1.15 | 0.4 | 36000 | 45000 | 0.0032 |
| 625 | 5 | 16 | 5 | 0.3 | 1.76 | 0.68 | 32000 | 40000 | 0.005 |
| 626 | 6 | 19 | 6 | 0.3 | 2.34 | 0.885 | 28000 | 36000 | 0.008 |
| 627 | 7 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.013 |
| 628 | 8 | 24 | 8 | 0.3 | 4 | 1.59 | 24000 | 32000 | 0.017 |
| 629 | 9 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.1 | 2.39 | 19000 | 26000 | 0.03 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.1 | 2.75 | 18000 | 24000 | 0.036 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.6 | 17000 | 22000 | 0.046 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.6 | 4.6 | 16000 | 20000 | 0.065 |
| 6204 | 20 | 47 | 14 | 1 | 12.8 | 6.65 | 14000 | 18000 | 0.107 |
| 6205 | 25 | 52 | 15 | 1 | 14 | 7.85 | 12000 | 16000 | 0.125 |
| 6206 | 30 | 62 | 16 | 1 | 19.5 | 11.3 | 10000 | 13000 | 0.201 |
| 6207 | 35 | 72 | 17 | 1.1 | 25.6 | 15.5 | 9000 | 11000 | 0.2854 |
| 6208 | 40 | 80 | 18 | 1.1 | 27.6 | 17.4 | 8500 | 10000 | 0.373 |
| 6209 | 45 | 85 | 19 | 1.1 | 31.2 | 20.4 | 7500 | 9000 | 0.42 |
| 6210 | 50 | 90 | 20 | 1.1 | 35.1 | 23.2 | 7000 | 8500 | 0.467 |
| 6211 | 55 | 100 | 21 | 1.5 | 43.4 | 29.2 | 6300 | 7500 | 0.609 |
| 6212 | 60 | 110 | 22 | 1.5 | 47.8 | 32.9 | 6000 | 7000 | 0.804 |
| 6213 | 65 | 120 | 23 | 1.5 | 50.7 | 37.1 | 5300 | 6300 | 1.04 |
| 6214 | 70 | 125 | 24 | 1.5 | 55.8 | 41.1 | 5000 | 6000 | 1.12 |
| 6215 | 75 | 130 | 25 | 1.5 | 60.8 | 45.4 | 4800 | 5600 | 1.2 |
