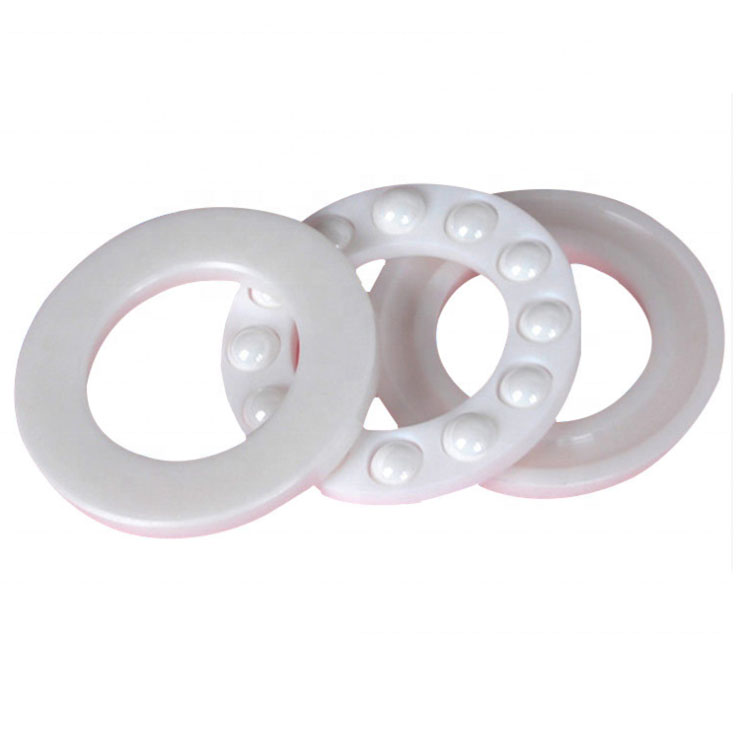

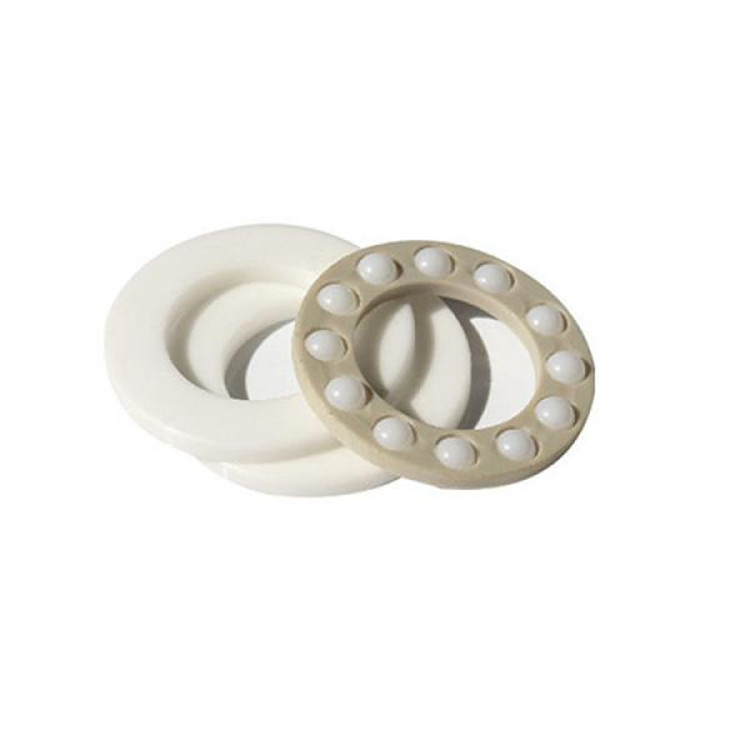

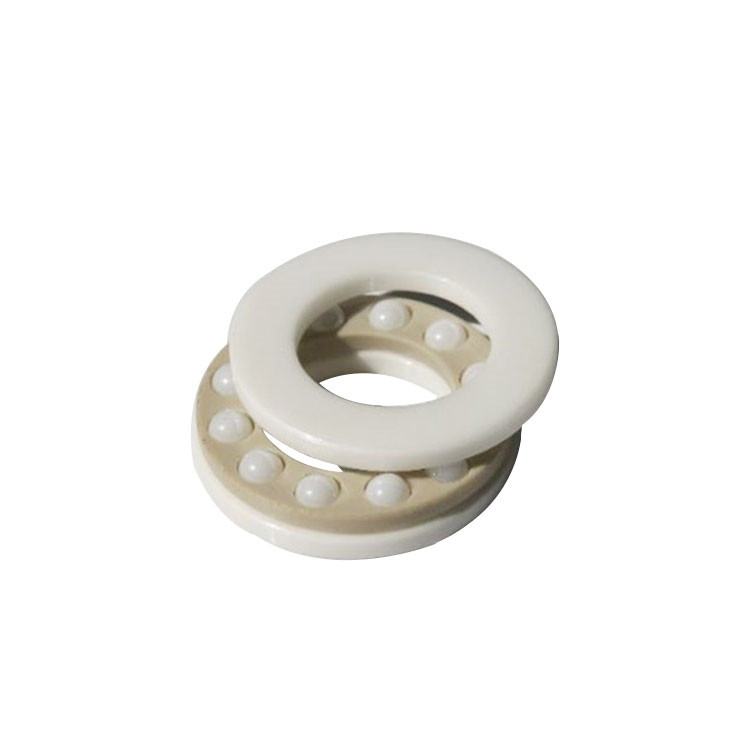

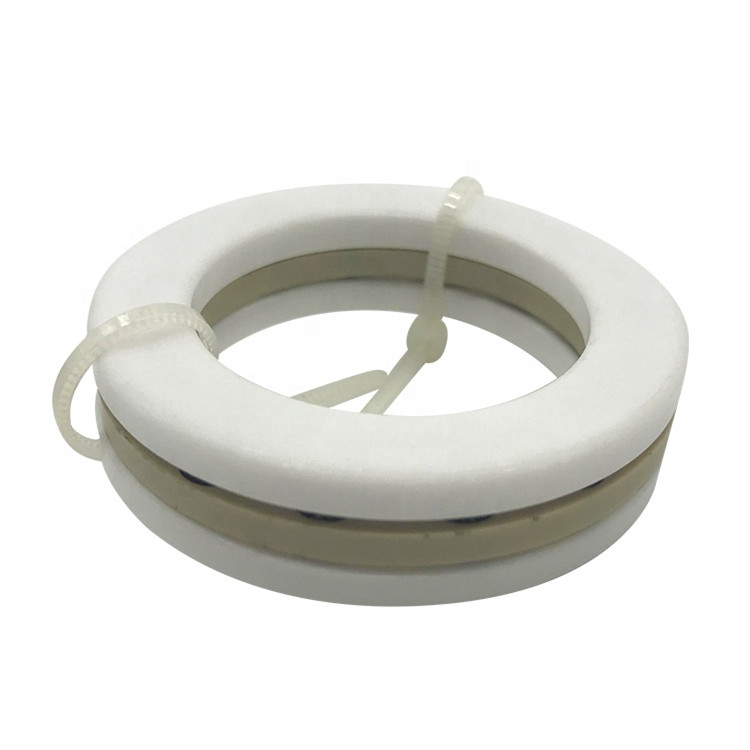

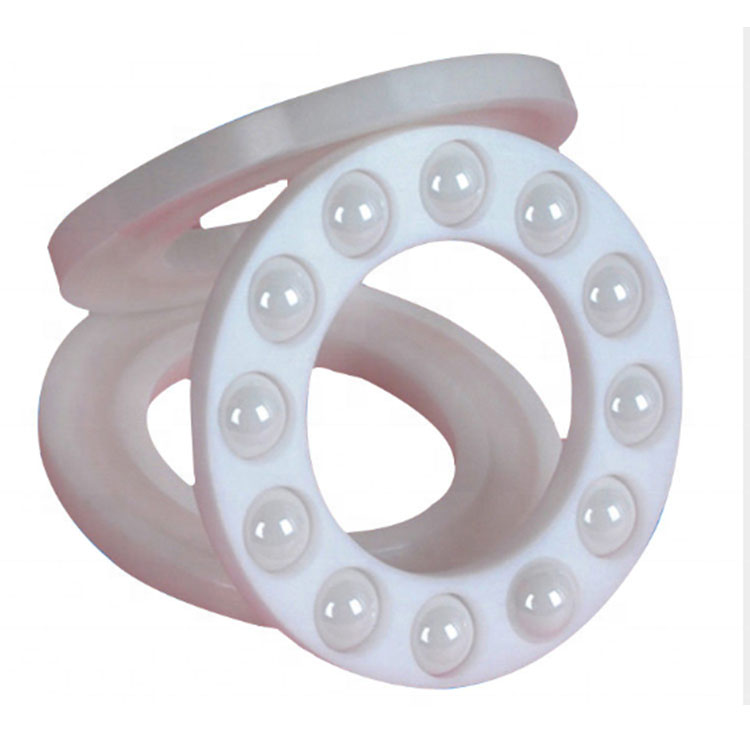

ceramic thrust ball bearings High quality axial bearing ceramic bearings inline

ceramic thrust ball bearings have excellence performance as special electrical and magnetism resistance, wear and corrosion resistance, lubrication and maintenance free when working, especially high and low- temperature application. etc.


Product Specification:

  • Structure Thrust
  • Type Ball
  • Material Ceramic
  • Brand LLH or OEM
See Price

ceramic thrust ball bearings High quality axial bearing ceramic bearings inlineceramic thrust bearing

ceramic thrust ball bearings can work in the harsh environment of corrosive medium, high temperature resistance, not easy to cause deformation,they are now used in awide range of applications.ceramic bearings inline

Characteristics of Ceramic Bearings:

1.High hardness,wearing resistance,low friction coefficient,good self-lubrcating

2.High temperature application,better thermal shock resistance

3.Higher fracture toughness,better shock resistance

4.Excellent resistance to chemical corrosion,it can endure all of acid corrosion and alkalescent corrosion,it's unstable for most strong alkali and molten salt.

5.The performance of contant similar to bearing steel ,similar forms of fatigue spallingceramic ball bearing

FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for ceramic thrust ball bearings ceramic bearings inline?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for ceramic thrust ball bearings ceramic bearings inline? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for ceramic thrust ball bearings ceramic bearings inline?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for ceramic thrust ball bearings ceramic bearings inline?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for ceramic thrust ball bearings ceramic bearings inline?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for ceramic thrust ball bearings ceramic bearings inline?
A: Usually ≥1, According your demand.
9,Q: Will you check these ceramic thrust ball bearings ceramic bearings inline before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the ceramic thrust ball bearings ceramic bearings inline?
A: If have any abnormal, Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234



Product Name Ceramic Bearing
Materials ZrO2 for rings, PTFE/ PEEK/NYLON/ZrO2 for cages
Color White
Standard ANSI, DIN, ISO, JIS.
Grade ABEC1, ABEC3, ABEC5, ABEC7. (P0, P6, P5, P4)











Model Supported

Deep Groove Ball Bearing (60 series, 62 series, 63 series, 64 series, 68 series and 69 series, 160 series)
Angular Contact Ball Bearing (70 series, 72 series, 72 series and 79 series.)
Double Row Angular Contact Ball Bearing (52 series, 53series)
Self-aligning Ball Bearing (12 series, 22 series, 13 series, 23 series.)
Thrust Ball Bearing ( 511 series, 512 series)
Ball Bearing for Units (UC2 series)
Inch Size ( 16 series, R series)
Dia. Of Bore : 3-400 mm
Dia. Of Outer Ring 4-500 mm
Tolerance P0, P6, P5, P4
Clearance C2, C0, C3, C4, C5
Materials of Seals ZZ, 2RS, or on request.

high speed ceramic thrust ball bearings

Bearing no d(mm) D(mm) B(mm) Bearing no d(mm) D(mm) B(mm)
51101 12 26 9 511126 130 170 30
51102 15 28 9 511128 140 180 31
51103 17 30 9 511130 150 190 31
51104 20 35 10 511132 160 200 31
51105 25 42 11 511134 170 215 34
51106 30 47 11 511136 180 225 34
51107 35 52 12 511138 190 240 37
51108 40 60 13 511140 200 250 37
51109 45 65 14 511144 220 270 37
51110 50 70 14 511152 260 320 45
51111 55 78 16 511156 280 350 53
51112 60 85 17 511160 300 380 62
51113 65 90 17 511164 320 400 63
51114 70 95 18 511168 340 420 64
51115 75 110 19 511172 360 440 65
51116 80 105 19 511180 400 480 65
51117 85 110 19 511184 420 500 65
51118 90 120 22 511192 460 560 80
51119 95 145 60 511196 480 580 80
511120 100 130 25 511/500 500 600 80
511122 110 145 25 511/530 530 640 85
511124 120 155 25 511/670 670 800 105

high quality ceramic thrust ball bearings

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.precision ceramic thrust ball bearings
