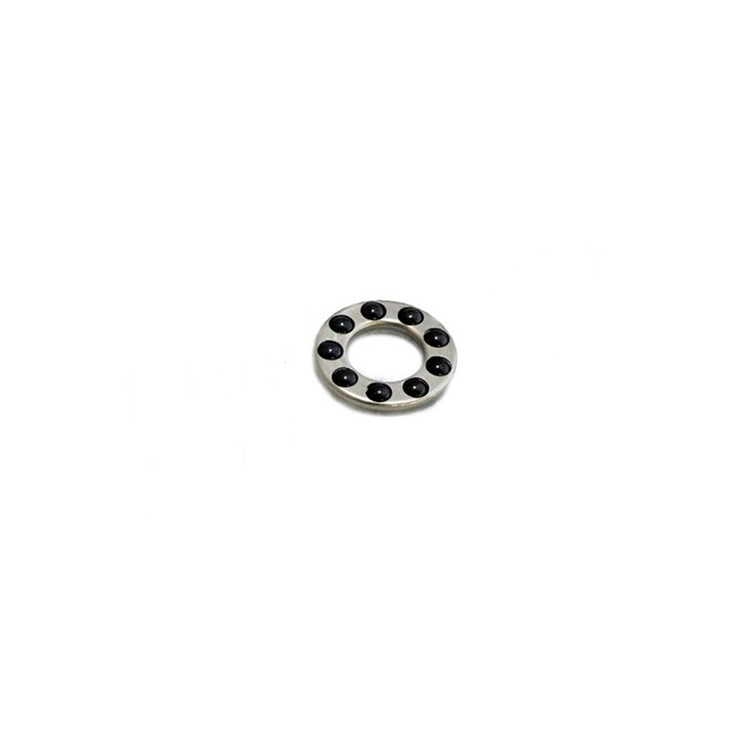

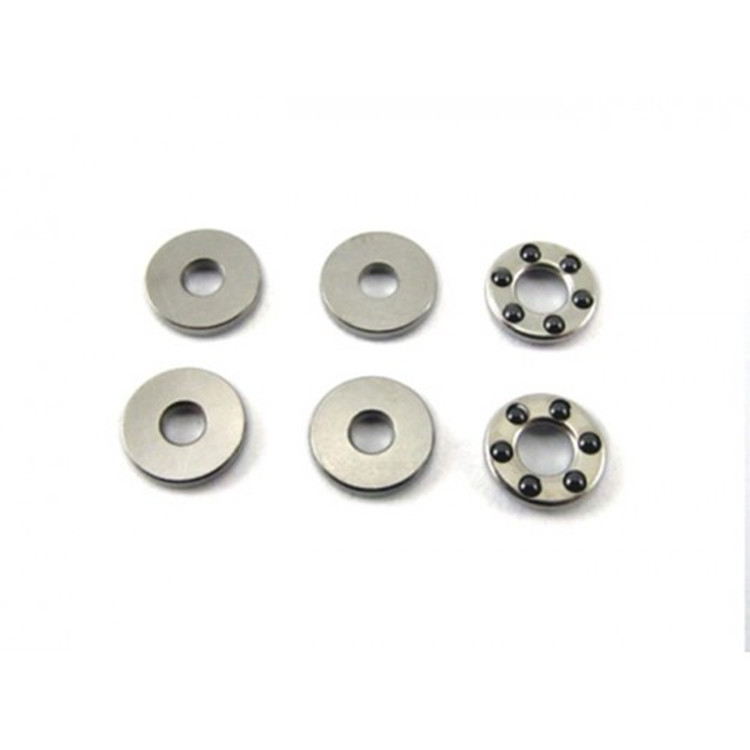

ceramic thrust bearings consist of two precision washers (rings) and a ball complement spaced by retainer. They can besupplied with or without radius ball grooves in the rings.
ceramic thrust bearings Si3N4 ceramic balls hyb ceramic ball bearing specification
ceramic thrust bearings can withstand thrust loads at high speed design, the washer-shaped ball rolling with a rolling groove ferrule composition. Since the saddle-shaped rings, therefore, thrust ball bearings are divided into flat type and adjust the seat cushion Thrust Ball Bearings hheey spherical seat model types. In addition,the bearings can withstand axial load, but can not bear radial load.

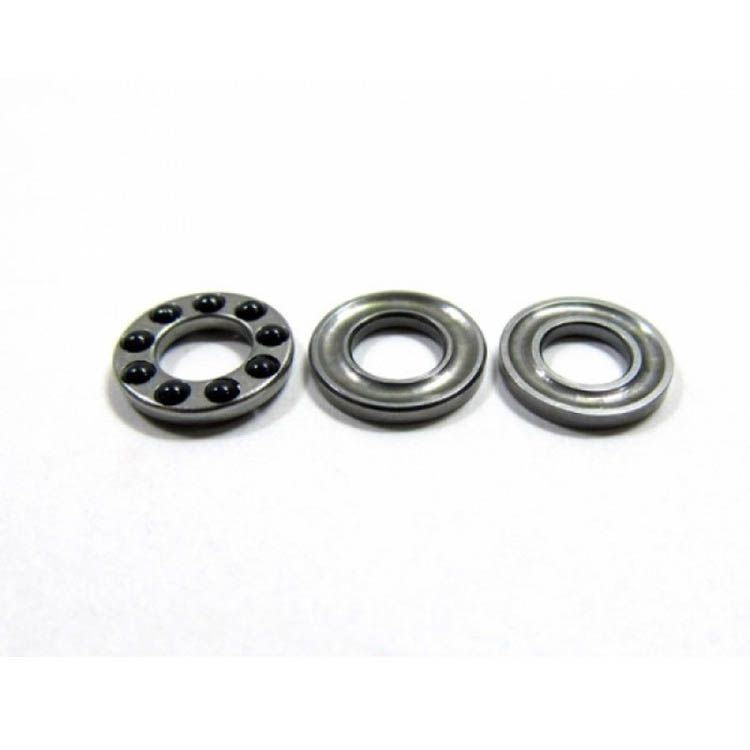

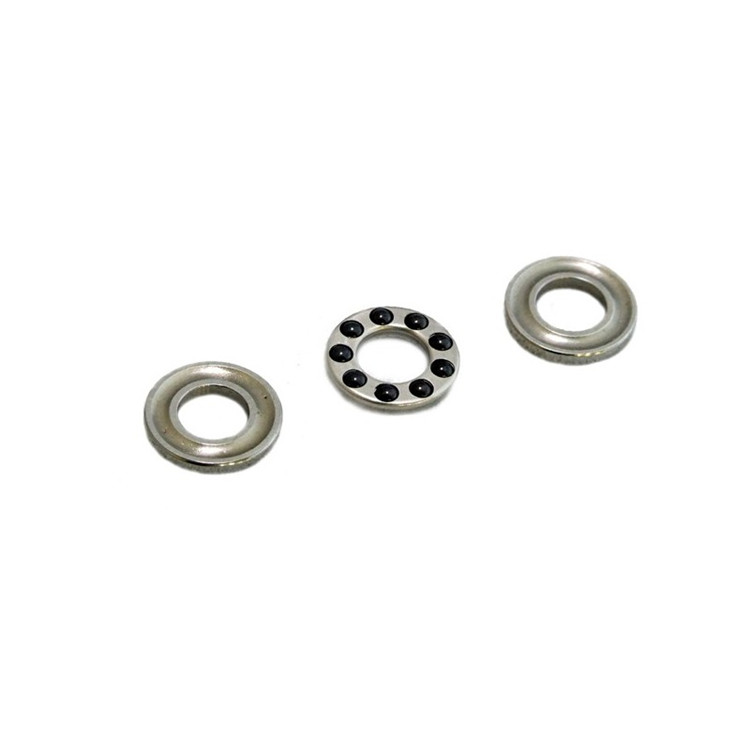

Thrust ball bearing components:
Thrust ball bearings from the seat, shaft ring and ball cage assembly of three parts.
And the axis of said shaft ring, and the shell with said seat.
FAQ:
1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for about ceramic thrust bearings ball bearing specification ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for about ceramic thrust bearings ball bearing specification? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for about ceramic thrust bearings ball bearing specification ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for products?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price of about ceramic thrust bearings ball bearing specification ?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of your products?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for about ceramic thrust bearings ball bearing specification ?
A: Usually ≥1, According your demand.
9,Q: Will you check these about ceramic thrust bearings ball bearing specification before shipment ?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the ceramic thrust bearings ball bearing specification ?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
Material | Chrome steel or stainless steel ring |
Brand | LLH |
Standard | DIN GB ISO JIS BA ANSI |
Grade | ABEC-3 ABEC-5 , ABEC-7, ABEC-9 |
Clearance | C0, C3 ,C5 |
Package | carton package |
Used | Machine |
THRUST BALL BEARING|METRIC SERIES | |||||
(1) Bearing also available by material of Stainless(AISI440C),Ceramic(AISI52100) or Plastic | |||||
(2)Tolerance Codes: ABEC-1,ABEC-3,ABEC-5,ABEC-7 | |||||
(3)Retainer: Stainless Steel and Brass | |||||
(4)Common Packing: 100 pcs in plastic bag | |||||
d(mm) | D(mm) | H(mm) | Chrome | Stainless | Ceramic |
2.5 | 6 | 3 | F2.5-6M | SF2.5-6M | F2.5-6M/C |
3 | 8 | 3.5 | F3-8M | SF3-8M | F3-8M/C |
4 | 9 | 4 | F4-9M | SF4-9M | F4-9M/C |
10 | 4 | F4-10M | SF4-10M | F4-10M/C | |
5 | 10 | 4 | F5-10M | SF5-10M | F5-10M/C |
12 | 4 | F5-12M | SF5-12M | F5-12M/C | |
6 | 12 | 4.5 | F6-12M | SF6-12M | F6-12M/C |
14 | 5 | F6-14M | SF6-14M | F6-14M/C | |
7 | 13 | 4.5 | F7-13M | SF7-13M | F7-13M/C |
15 | 5.5 | F7-15M | SF7-15M | F7-15M/C | |
17 | 6 | F7-17M | SF7-17M | F7-17M/C | |
8 | 16 | 5 | F8-16M | SF8-16M | F8-16M/C |
19 | 7 | F8-19M | SF8-19M | F8-19M/C | |
9 | 17 | 5 | F9-17M | SF9-17M | F9-17M/C |
20 | 7 | F9-20M | SF9-20M | F9-20M/C | |
10 | 18 | 5.5 | F10-18M | SF10-18M | F10-18M/C |
12 | 23 | 5.5 | F12-23M | SF12-23M | F12-23M/C |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
